rad::ThreadActivity Class Reference

#include <activity.hpp>

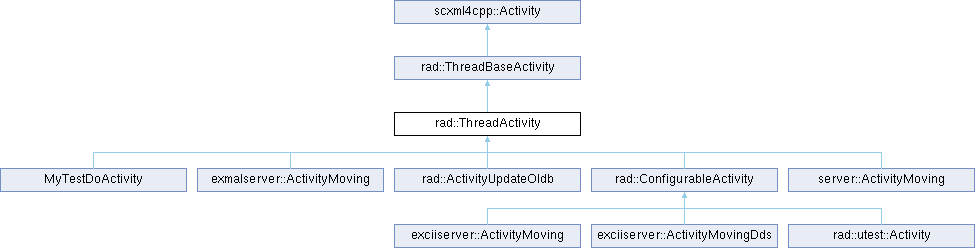

Inheritance diagram for rad::ThreadActivity:

Public Member Functions
	ThreadActivity (const ThreadActivity &)=delete
ThreadActivity &	operator= (const ThreadActivity &)=delete
virtual void	Run ()=0
pthread_t	GetNativeHandle () const override
bool	IsThreadJoined () const override
	ThreadBaseActivity (ThreadBaseActivity const &)=delete
Public Member Functions inherited from rad::ThreadBaseActivity
	ThreadBaseActivity (ThreadBaseActivity const &)=delete
void	start (scxml4cpp::Context *c) override
void	stop (scxml4cpp::Context *c) override
bool	IsStopRequested () const
Public Member Functions inherited from scxml4cpp::Activity
	Activity (const std::string &id)
virtual	~Activity ()
std::string	getId () const
void	setId (const std::string &id)

Protected Member Functions
void	StartThread () override
void	JoinThread () override
std::string	GetPthreadName ()
int	SetPthreadName (const std::string &name)

Detailed Description

This class is the base class for thread-based do-activities.

User should use IsStopRequested() to check for when to stop the activity.

Example implementation:

 class MyActivity : public ThreadActivity {
     void Run() override {
         while(!IsStopRequested()) {
             // do work
             ...
         }
     }
 };

Attention

methods of this class are not thread safe. It is assumed that the activity thread attributes cannot be modified by other threads. If thread safety is needed, the developer will subclass and add protection.

Constructor & Destructor Documentation

ThreadActivity()

rad::ThreadActivity::ThreadActivity ( const ThreadActivity & )

delete

Member Function Documentation

GetNativeHandle()

pthread_t rad::ThreadActivity::GetNativeHandle ( ) const

overridevirtual

Returns

A handle to the native thread implementation.

TODO review whether 'const' is needed.

Implements rad::ThreadBaseActivity.

GetPthreadName()

std::string rad::ThreadActivity::GetPthreadName ( )

protected

This method is similar to GetName() but it uses the platform specific pthread_self() function instead of the platform independent native_handle().

This avoid data race conditions between the main thread that started the activity and the activity thread itself that tries to get/set its name. In fact when the activity is started the m_thread attribute is assigned via a swap of the std::thread. This std::thread seems to be read also by native_handle() creating a possible data race condition.

Returns

The thread name.

IsThreadJoined()

bool rad::ThreadActivity::IsThreadJoined ( ) const

overridevirtual

Returns

true if the thread is not running, false otherwise.

Implements rad::ThreadBaseActivity.

JoinThread()

void rad::ThreadActivity::JoinThread ( )

overrideprotectedvirtual

Helper method to stop a do-activity thread.

Implements rad::ThreadBaseActivity.

operator=()

ThreadActivity & rad::ThreadActivity::operator= ( const ThreadActivity & )

delete

Run()

virtual void rad::ThreadActivity::Run ( )

pure virtual

Interface to be implemented by child classes to implement the activity thread.

Implemented in rad::utest::Activity, exciiserver::ActivityMoving, exciiserver::ActivityMovingDds, exmalserver::ActivityMoving, server::ActivityMoving, rad::ActivityUpdateOldb, and MyTestDoActivity.

SetPthreadName()

int rad::ThreadActivity::SetPthreadName ( const std::string & name )

protected

This method is similar to SetName() but it uses the platform specific pthread_self() function instead of the platform independent native_handle().

See GetPthreadName() for a full explanation of the advantages vs SetName().

Parameters

name	Name for the thread.

Returns

Error code from pthread_setname_np() function.

StartThread()

void rad::ThreadActivity::StartThread ( )

overrideprotectedvirtual

Helper method to start a do-activity thread.

Implements rad::ThreadBaseActivity.

ThreadBaseActivity()

rad::ThreadBaseActivity::ThreadBaseActivity ( ThreadBaseActivity const & )

delete

---

The documentation for this class was generated from the following files:

• rad/cpp/sm/src/include/rad/activity.hpp
• rad/cpp/sm/src/activity.cpp
