Welcome to the European ALMA Regional Centre Newsletter!

This Newsletter is a compilation of recent European ALMA Regional Centre Announcement items. Follow the links or visit the European ARC Announcements to read more. In addition to these Announcements the Newsletter informs you about various developments in the ALMA Programme, as well as about ALMA or ALMA-related meetings.

Up-to-date information about weather, configuration and scheduling can be found on the ALMA Status page.

European ARC Announcements

Vacancy Notice: ALMA Regional Centre Scientist

22 Mar 2018:

For its ALMA Regional Centre at the Headquarters in Garching near Munich, Germany, ESO is opening the position of

ALMA Regional Centre Scientist

The closing date for receipt of applications to be considered for the position is 30 April, 2018.

Read more

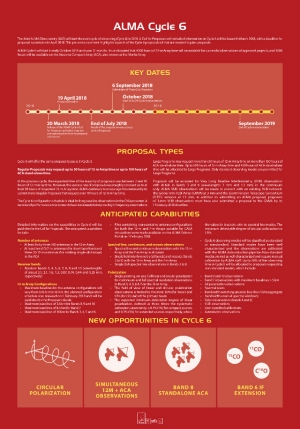

ALMA Cycle 6 Call for Proposals is now open

21 Mar 2018:

The ALMA Director, on behalf of the Joint ALMA Observatory and the partner organizations in East Asia, Europe, and North America, is pleased to announce the ALMA Cycle 6 Call for Proposals for scientific observations is now OPEN!

ALMA Cycle 6 is currently scheduled from October 2018 to September 2019. Users of any nationality or affiliation are invited to to submit proposals before the deadline of 15:00 UT on Thursday 19 April 2018.

Read more

Vacancy Notice: European ALMA Programme Scientist

01 Feb 2018:

For its Directorate for Science at the Headquarters in Garching near Munich, Germany, ESO is seeking a

European ALMA Programme Scientist

The European ALMA Programme Scientist serves as the primary contact between the ALMA Observatory, the European ALMA Support Centre and the European astronomical community with respect to the scientific capabilities, mission and exploitation of the ALMA facility.

The initial deadline for receipt of applications to be considered for the position is 31 March, 2018.

Read more

New Science Verification data are now available for download

22 Jan 2018:

New Science Verification data are now listed on the Science Verification data page (source no. 15 on the list: HL Tau)

Read more

Powerful New Hardware Approved for ALMA

19 Jan 2018:

The development of a new spectrometer for the Morita Array, which forms part of the Atacama Large Millimeter/submillimeter Array (ALMA), has been approved by the ALMA Board. Developed by Japan, the Morita Array is composed of twelve 7-metre antennas and four 12-metre antennas.

Read more

ALMA Programme News

ALMA Band 2 Development

ESO continues to coordinate and support the science case and technical development of a new ALMA receiver covering the original ‘Band 2’ frequency range, 67 to 90 GHz, with the option to extend this out to 116 GHz. Following the ALMA development priorities, the receiver will be the first one to have 16 GHz IF bandwidth per polarization channel.

The work is being done by a consortium of several European institutes, ESO, U Chile, and NAOJ.  Prototype versions of the optical components and layouts, developed by U Chile, INAF, and NAOJ, have been realized and demonstrated in laboratory tests to meet all ALMA requirements for the optics over the 67-116 GHz RF bandwidth, with no compromises in performance over the design optimized for the original Band 2 frequency range of 67-90 GHz. In parallel, test results for the wideband MMIC low noise amplifiers designed by the University of Manchester in collaboration with CRAL and using the NGC 30nm gate length process are extremely promising, with noise temperatures measured to be <28 K over more than 80% of the wide band and little dependence on frequency. There is also a commercial alternative, from the Low Noise Factory, with comparable performance. A full prototype receiver has been designed and was tested in 2017. The design and the achieved performances were presented at the Preliminary Design Review, which took place at ESO on 29-30 November 2017. The feedback from the review panel was very positive with clear recommendations to continue development towards the Critical Design Review, and also to start preparations for the pre-production series of the receivers to be installed and tested in ALMA system.

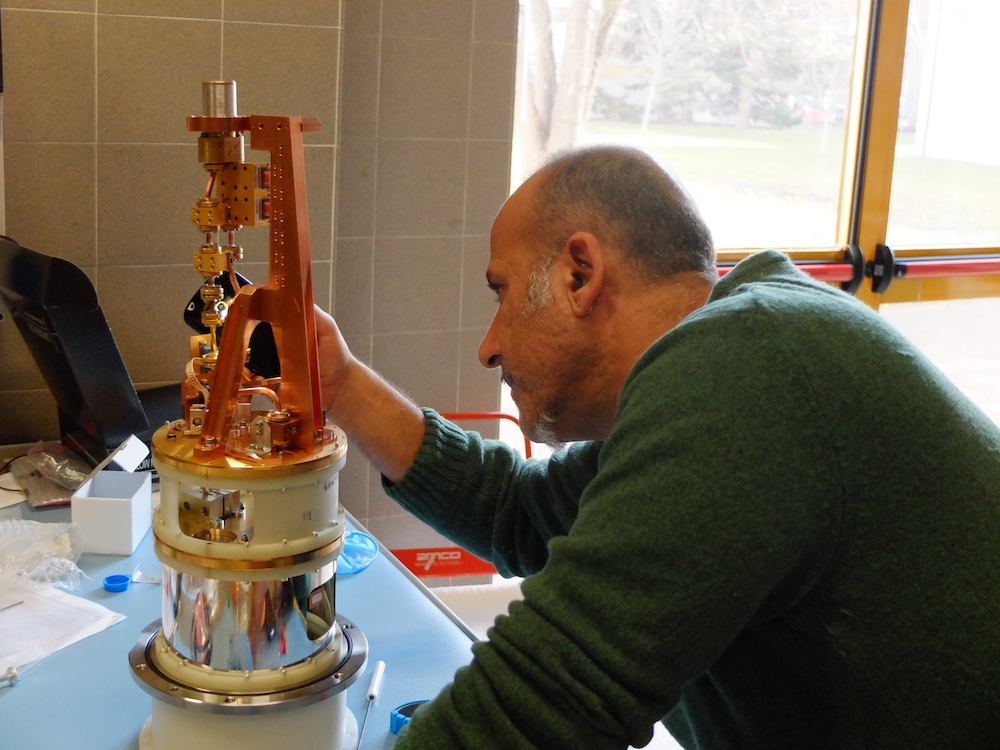

Left: Cold cartridge prototype being inspected by Francesco Cuttaia at INAF. Right: The group photo taken at the Preliminary Design Review at ESO on 29-30 November 2017.

ALMA Band 5

In the framework of the ALMA Enhancement Program funded by EC FP6 (contract No 515906), the Group for Advanced Receiver Development (GARD) at Chalmers, in collaboration with the Rutherford Appleton Laboratory, UK, developed and built six preproduction ALMA Band 5 cartridges (Billade et al. 2012). After the success of this pathfinder experiment, ESO funded in 2013 an initiative to start the Band 5 production project for the ALMA observatory. Through this, GARD in collaboration with NOVA took the responsibility to produce, verify and deliver the Band 5 cold cartridge assemblies (CCA).  Production of the Band 5 local oscillator (LO) and warm cartridge assembly (WCA) was carried out by NRAO with funding from the National Science Foundation (NSF). ESO also committed to the overall project coordination and providing the Band 5 frontend cryostat windows, IR filters and supplying front-end DC bias modules. Following a project kick-off meeting in February 2013, production started in March 2015 and ended in November 2017.

With the project now complete, 73 Band 5 CCAs – 66 for the Frontends installed in ALMA antennas and 7 spares – have been delivered to the ALMA Observatory. (Belitsky et al, 2018).

The Band 5 interferometric first light with two antennas was achieved in June 2015, the phase closure using 3 antennas in July 2015 and at the end of 2016 the data samples collected in the framework of the science verification have been released to the scientific community (Humphreys et al. 2017, König et al. 2017).

The integration phase of the B5 CCAs started in May 2015, and at the time of writing (March 2018) 57 FEs with Band 5 CCAs are installed in the ALMA antennas – 12 are on the ACA 7 m array, 4 are on the ACA Total Power array, and the remaining 41 are on the 12-meter baseline (BL) array.  Including the FEs in lab at the OSF, 62 out of the 66 ALMA FEs have been already equipped with B5 receiver cartridges, while the remaining 4 should be installed by the end of April 2018.  PI science observations started in December 2017 with the ACA, while observations with the BL array postponed until the minimum complement of 43 CCAs is installed.

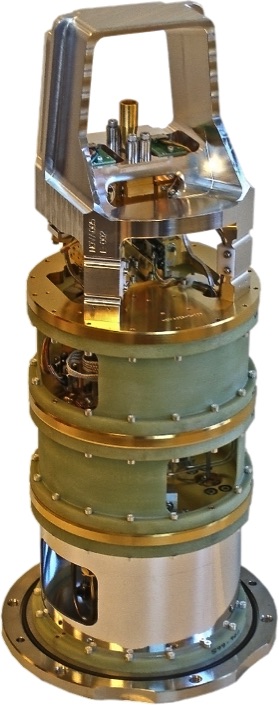

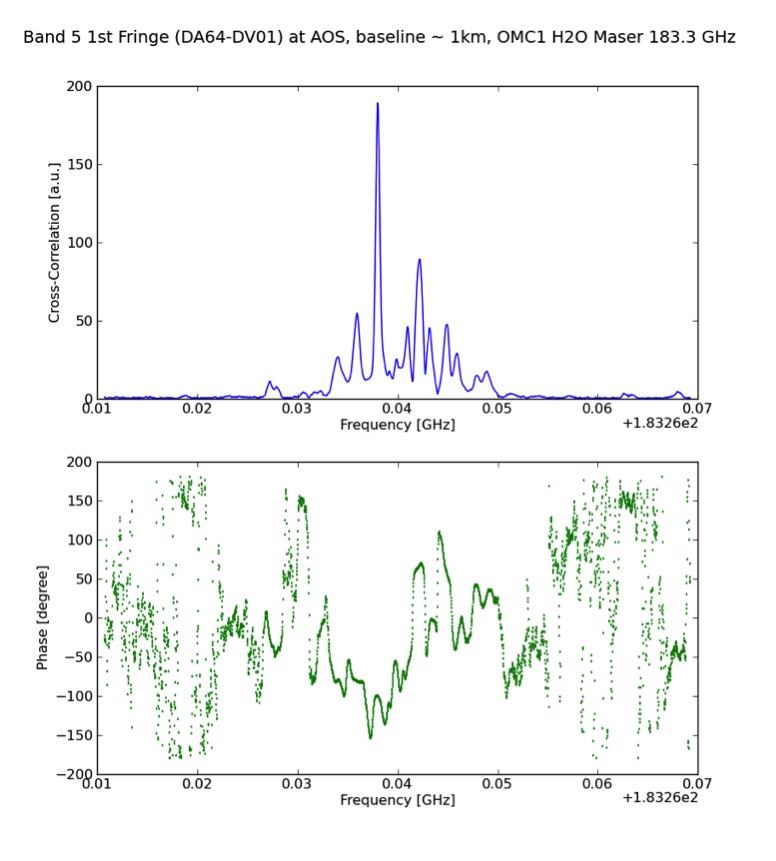

Left: ALMA Band 5 cold cartridge assembly. To the left: CAD drawing of the Band 5 CCA with fiberglass spacers removed to improve visibility of all internal components. Centre: the picture of the fully assembled Band 5 CCA. Right: First fringe of the Band 5 CCA  (DA64-DV01) at AOS with a baseline of  about 1 km. OMC1 H2O Maser at 183.3 GHz.

Further reading:

EU ARC QA2 Backlog Reduced to Zero

After a slow start into Cycle 5 where the transition to new administrational tools and a new archive ingestion and delivery system cost a lot of time, the QA2 processing of EU data has now caught up and is faster than ever. The February ALMA shutdown then helped to enable us to process with just a handful of exceptions all remaining observations and deliver them to the PIs.

In the first half of Cycle 5, The European ARC and its nodes again contributed significantly to the data processing, including manual calibration and imaging. The data processed at the EU ARC was to a large extent processed by the ALMA Science Pipeline running on the EU ARC cluster: 85% of the delivered datasets were pipeline-calibrated and 65% were pipeline-imaged. The data processed at JAO on the other hand was 100% pipeline-calibrated and -imaged. I.e., with the help of the pipeline, manual calibration is now only necessary in non-standard cases. Also the need for manual imaging is constantly reduced with every new release of the pipeline. This, however, does not mean that the processing doesn't need human interaction anymore: Experts are still needed to scrutinise the wealth of diagnostic plots in the pipeline logs (so-called weblogs) for every pipeline-processed dataset and, if needed, flag the few occurrences where the pipeline missed a patch of bad data. But also this workload is reduced with every new release of the pipeline.

Similar progress was also made at the other ARCs. With the present system running, we have made a big leap toward our goal of delivering processed data to PIs as soon as possible after observation,  without building up a processing backlog anywhere along the processing chain.

Report on the AtLAST Workshop

The Atacama Large Millimeter/Submillimeter Array (ALMA) is currently the most sensitive millimeter/submillimeter-wave observatory spanning 84–950 GHz, and will soon be extended to down to 35 GHz through the Band 1 and, hopefully, the Band 2 projects.  Yet the small field of view of ALMA limits its mapping speed, and the size of the array elements restricts its ability to recover extended scales (the “zero-spacing problem”).

In January 2018, a broad international community came together to discuss a possible large, 40-meter-class single dish called the Atacama Large Aperture Submm/mm Telescope ( that would address these issues.  Single dish facilities, such as the AtLAST project, are generally more flexible to upgrade than an interferometer, and are capable of surveying wide areas of the sky when coupled to wide field instrumentation.  This comes at the expense of reduced spatial resolution compared to an interferometer, and thus the two are highly complementary.   AtLAST would feature a large focal plane capable of hosting multi-element, multi-chroic, wide bandwidth instrumentation, ultimately upgradeable to megapixel cameras, wideband spectrometers coupled to large focal plane arrays, and large mm/submm integral field units capable of tomography of the universe out to the redshift of formation for dusty galaxies.   Notably, there are currently no mm/submm telescopes in the southern hemisphere larger than 12 meters in diameter.

The AtLAST workshop ( considered sites in the Atacama, one of the world’s best locations for millimeter and submillimeter science, as well as telescope designs, instrumentation, and some of the science cases.  The presentations are available online:   A new workshop to address specifically the many AtLAST science cases will be held at the University of Edinburgh in late September or early October this year (2018), and white papers covering the science, site selection, telescope design, and instrumentation will follow by the beginning of 2019.  To get involved in this community effort, please contact

This event has received funding from the European Union’s Horizon 2020 research and innovation programme under grant agreement No 730562 [RadioNet].  This project is a community effort, and is not officially endorsed by ESO or ALMA — in order to succeed, we must come together as a community and strongly support this effort.

Missing the Short Spacings?

A two-day workshop was organized at ESO on Submillimetre Single-dish Data Reduction and Array Combination Techniques. The workshop was held at ESO on 15 and 16 March 2018.

One of the pleasant side-effects of a single-dish observation that it can supply interferometric data with all the important short spacings information, in order to recover larger scale emission that was filtered out by the interferometer. It is not uncommon to miss half of the flux in a more extended component when considering only the interferometer data. The majority of the second day in the workshop was spent on a number of techniques that have been developed and fine-tuned over the past 30-40 years, including a tutorial following the standard M100 example using CASA, supplemented with two new techniques. The default method in CASA is called "feather", but two new techniques, "ssc" and "tp2vis" were also highlighted. In particular, the "tp2vis" replaces the single dish map with "pseudo-visibilities", which then can be used in a standard joint deconvolution method to create images.

Talk slides, example scripts and links to the example data are available on the ESO workshop page as well as via a github repository, by which the participants were updated during the workshop. Through Zenodo the github repository also has a DOI.

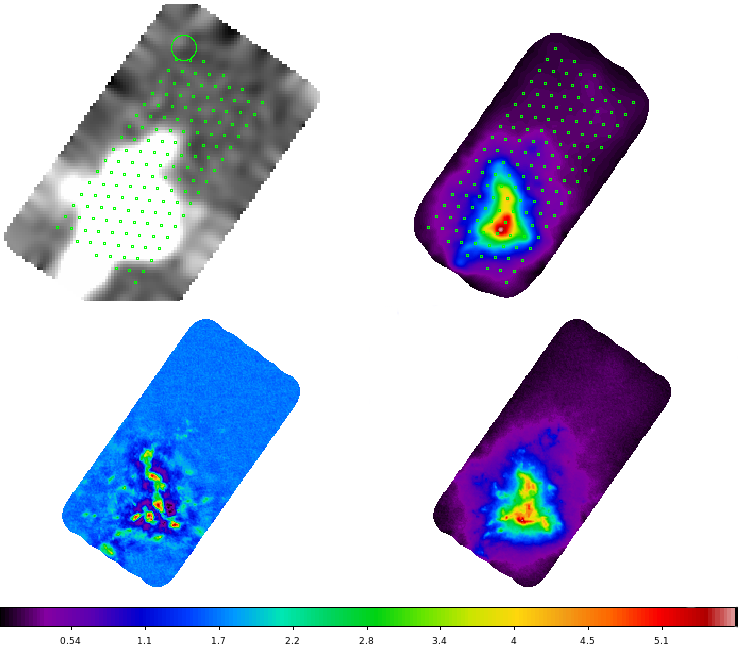

In the  figure at the left, the top left panel is a selected channel from an ALMA total power (TP) observation of the CO emissions of a small region in the SMC. Overlayed on this greyscale are the pointing centers of the 12-m Array. For one pointing the true extend of the 12 m field of view is given as well with the larger green circle.  The top right panel is the reconstructed TP map from the pseudo-visibilities generated from a virtual interferometer emulating the short spacings. The pure interferometeric map that combines the 7 m and 12 m data is shown in the lower left panel, and combining the TP visibilities with those of the 7-m+12-m Arrays are then shown in the lower right panel, now recovering the large scale flux, as well as the fine scale structure.

This event has received funding from the European Union’s Horizon 2020 research and innovation programme under grant agreement No 730562
