Client¶

The provided command line client ocmServerCtl can interact with ocmServer which is described in the following sections.

Environment Variables¶

$OCM_REQUEST_EP: Specifies the default OCM request/reply endpoint, e.g. zpb.rr://127.0.0.1:12345/.
$OCM_PUBLISH_EP: Specifies the default OCM publish endpoint, e.g. zpb.ps://127.0.0.1:12345/.

Command Line Arguments¶

Exhaustive command line help is available under the option --help. The following list enumerates a subset of common commands.

Synopsis:

ocmServerCtl [options] <command> [options] <command-args>...

Standard interface commands:

std.init: Sends the Init() command.
std.enable: Sends the Enable() command.
std.disable: Sends the Disable() command.
std.exit: Sends the Exit() command.
std.setloglevel <logger> <level>: Sends the SetLogLevel() command with provided logger and level.
std.getstate: Sends the GetState() command.
std.getstatus: Sends the GetStatus() command.
std.getversion: Sends the GetVersion() command.

Data Acquisition commands:

daq.start [options] <primary-sources> <metadata-sources>

Sends the StartDaq() command with provided arguments.

daq.stop [options] <id>

Sends the StopDaq() command with provided arguments.

daq.forcestop [options] <id>

Sends the ForceStopDaq() command with provided arguments.

daq.abort [options] <id>

Sends the AbortDaq() command with provided arguments.

daq.forceabort [options] <id>

Sends the ForceAbortDaq() command with provided arguments.

daq.getstatus <id>

Sends the GetDaqStatus() command to query status of Data Acquisition identified by <id>.

daq.awaitstate <id> <state> <substate> <timeout>

Sends the AwaitDaqState() command with provided arguments.

<id>: Data Acquisition identifier.
<state>: Data Acquisition state to await.
<substate>: Data Acquisition state to await.
<timeout: Time in seconds to wait for state to be reached or unable to be reached anymore.

daq.updatekeywords <id> <keywords>

Sends the UpdateKeywords() command with provided arguments.

daq.getactivelist

Sends the GetActiveList() command.

Server¶

The main OCM application is ocmServer, which implements all the Data Acquisition control and coordination features. The interface to control Data Acquisitions is covered in section The Data Acquisition Process whereas the much simpler application state control is described in this section.

State Machine¶

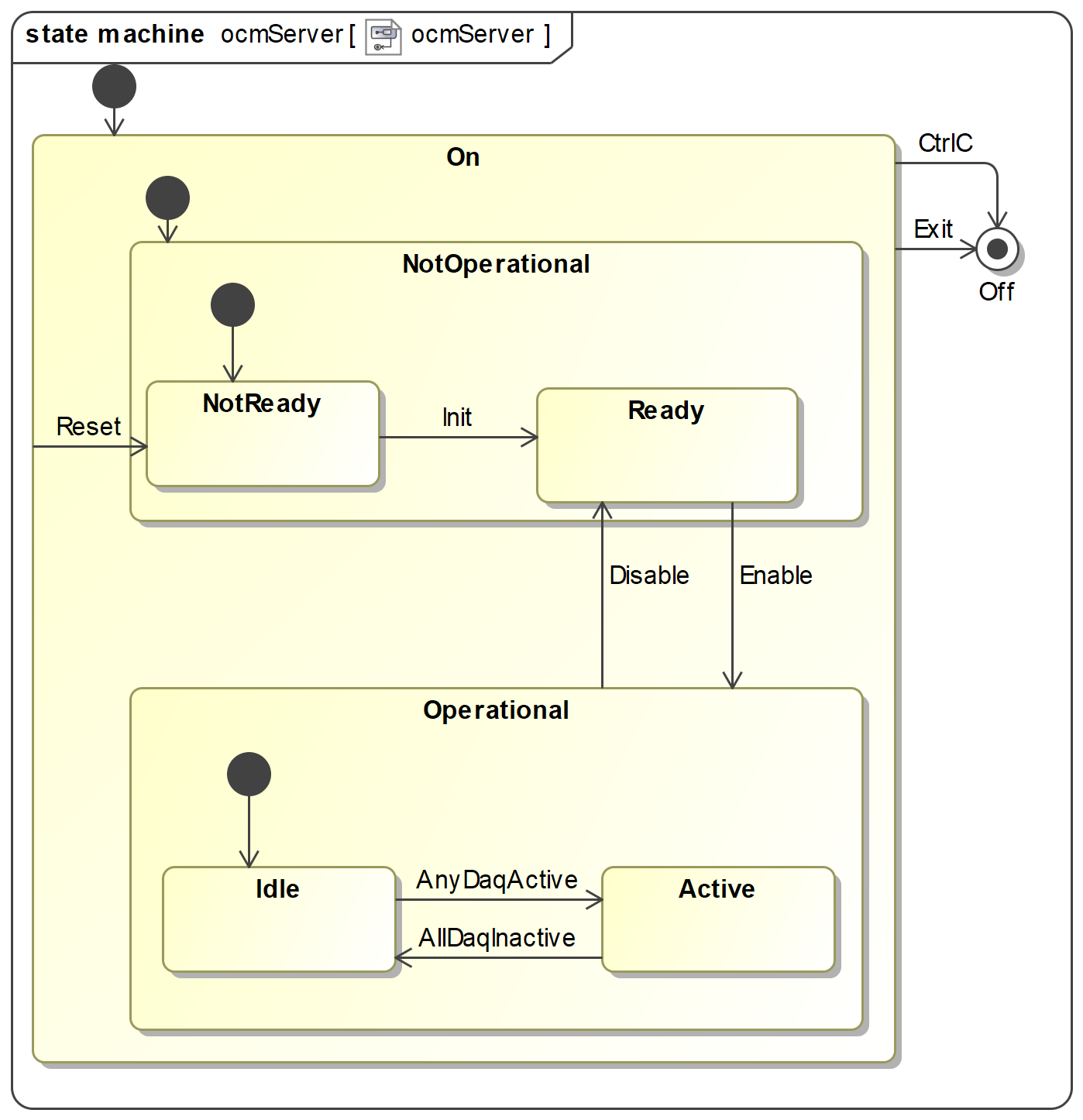

The ocmServer state machine is shown in Fig. 8 with states and transitions described below.

Fig. 8 Application statemachine implemented by ocmServer which satisfies the state machine expected by stdif.¶

States

On: Application is running.
Off: Application is not running.
NotOperational: Composite state that means that ocmServer is running, is able to accept StdCmds requests, but is not yet fully operational. For ocmServer it means in particular that the OcmDaq interface is not registered and won’t accept any requests.
NotReady: This is the first non-transitional state. Current implementation has already loaded configuration and has registered the stdif.StdCmds interface at this point.
Ready: Has no particular meaning for ocmServer.
Operational: In the transition to Operational ocmServer registered the OcmDaq interface and is ready to perform Data Acquisitions.
Idle: Indicates that there are no active Data Acquisitions.
Active: Indicates that there is at least one active Data Acquisition.

Note

Active does not mean that ocmServer is busy and cannot handle additional requests. It simply means that there is at least one Data Acquisition is not yet finished.

Since merging is not yet implemented the definition of active is up to the point the Data Acquisition is stopped or aborted.

Transitions

Init: Triggered by Init() request.
Enable: Triggered by Enable() request.
Disable: Triggered by Disable() request.
Stop: Triggered by Stop() request.

Note

The behaviour is currently unspecified if this request is issued if OCM is in state Active.
AnyDaqActive: Internal event that is created when any Data Acquisition becomes active.
AllDaqInactive: Internal event that is created when all Data Acquisitions are inactive.

MAL URI Paths¶

The following tables summarize the request/reply service paths and topic paths for pub/sub.

Table 3 *Data Acquisition* Control URI paths.¶
URI Path	Root URI Configuration	Description
`/std`	`cfg.req.endpoint`	Standard control interface `stdif.StdCmds`.
`/daq`	`cfg.req.endpoint`	Data Acquisition control interface `ocmif.OcmDaq`.

Table 4 Topic URI paths.¶
Topic Type	URI Path	Root URI Configuration	Description
`stdif.StatusTopic`	`/std/status`	`cfg.pub.endpoint`	Standard interface status topic providing information on OCM overall state. Same information is provided with the command `GetStatus()`.
`ocmif.DaqStatus`	`/daq/status`	`cfg.pub.endpoint`	Data Acquisition status topic `ocmif.OcmDaq`. Same information is provided with the command `GetDaqStatus()`.

Command Line Arguments¶

Command line argument help is available under the option --help.

--proc-name | -n (string) [default: ocm]: Process instance name.
--config | -c (string) [default: config/ocmServer/config.yaml]: Config Path to application configuration file e.g. --config ocs/ocm.yaml (see Configuration File for configuration file content).
--log-level | -l (enum) [default: INFO]: Log level to use. One of ERROR, WARNING, STATE, EVENT, ACTION, INFO, DEBUG, TRACE.
--db-host | d (string) [default: 127.0.0.1:6379]: Redis database host address.

Environment Variables¶

$CFGPATH: Used to resolve Config Path configuration file paths.
$DATAROOT: Specifies the default root path used as output directory for e.g. OCM FITS files and other state storage. The data root can be overridden by the configuration key cfg.dataroot.

Configuration File¶

The configuration file is currently based on YAML. This section describes what the configuration parameters are and how to set them.

If a configuration parameter can be provided via command line, configuration file and environment variable the precedence order (high to low priority) is:

Command line value
Configuration file value
Environment variable value

Enumeration of parameters:

cfg.instrument_id (string): ESO designated instrument ID. This value is also used as the source for FITS keyword INSTRUME.
cfg.dataroot (string) [default: $DATAROOT]: Absolute path to a writable directory where OCM will store files persistently. These are mainly FITS files produced as part of a Data Acquisition. If directory does not exist OCM will attempt to create it, including parent directories, and set permissions to 0774 (ug+rwx o+r).
cfg.log.properties (string): Config Path to a log4cplus log configuration file.
cfg.sm.scxml (string) [default: config/ocmServer/sm.xml]: Config Path to the SCXML model. This should be left to the default which is provided during installation of ocmServer.
cfg.req.endpoint (string) [default: zpb.rr://127.0.0.1:12081/]: MAL server request root endpoint on which to accept requests. Trailing slashes are optional, e.g. example: "zpb.ps://127.0.0.1:12345/" or "zpb.ps://127.0.0.1:12345".
cfg.pub.endpoint (string) [default: zpb.ps://127.0.0.1:12082/]: MAL server publish root endpoint on which to publish topics from. Trailing slashes are optional, e.g. example: "zpb.ps://127.0.0.1:12345/" or "zpb.ps://127.0.0.1:12345".
cfg.db.endpoint (string) [default: 127.0.0.1:6379]: Redis database endpoint address.
cfg.db.timeout_sec (integer) [default: 2]: Timeout in seconds to use when communicating with the Redis server.

Full example:

cfg.instrument_id: "TEST"
cfg.dataroot: "/absolute/output/path"
cfg.sm.scxml: "config/ocmServer/sm.xml"
cfg.req.endpoint: "zpb.rr://127.0.0.1:12345/"
cfg.pub.endpoint: "zpb.ps://127.0.0.1:12346/"
cfg.db.endpoint: "127.0.0.1:6379"
cfg.db.timeout_sec: 2
cfg.log.properties: "log.properties"
