rad::ThreadActivity Class Reference

#include <activity.hpp>

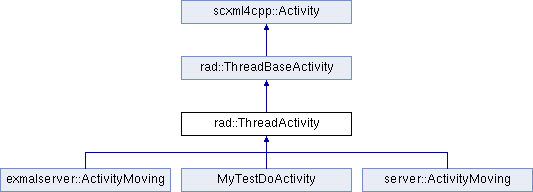

Inheritance diagram for rad::ThreadActivity:

Public Member Functions
	ThreadActivity (const ThreadActivity &)=delete
ThreadActivity &	operator= (const ThreadActivity &)=delete
virtual void	Run ()=0
pthread_t	GetNativeHandle () const override
bool	IsThreadJoined () const override
	ThreadActivity (const ThreadActivity &)=delete
ThreadActivity &	operator= (const ThreadActivity &)=delete
virtual void	Run ()=0
pthread_t	GetNativeHandle () const override
bool	IsThreadJoined () const override
	ThreadBaseActivity (ThreadBaseActivity const &)=delete
	ThreadBaseActivity (ThreadBaseActivity const &)=delete
	ThreadBaseActivity (ThreadBaseActivity const &)=delete
	ThreadBaseActivity (ThreadBaseActivity const &)=delete
Public Member Functions inherited from rad::ThreadBaseActivity
	ThreadBaseActivity (ThreadBaseActivity const &)=delete
void	start (scxml4cpp::Context *c) override
void	stop (scxml4cpp::Context *c) override
std::string	GetName () const
int	SetName (const std::string &name)
bool	IsStopRequested () const
	To be implemented by child classes. More...
	ThreadBaseActivity (ThreadBaseActivity const &)=delete
void	start (scxml4cpp::Context *c) override
void	stop (scxml4cpp::Context *c) override
std::string	GetName () const
int	SetName (const std::string &name)
bool	IsStopRequested () const
	To be implemented by child classes. More...
Public Member Functions inherited from scxml4cpp::Activity
	Activity (const std::string &id)
virtual	~Activity ()
std::string	getId () const
void	setId (const std::string &id)
	Activity (const std::string &id)
virtual	~Activity ()
std::string	getId () const
void	setId (const std::string &id)
	Activity (const std::string &id)
virtual	~Activity ()
std::string	getId () const
void	setId (const std::string &id)

Protected Member Functions
void	StartThread () override
void	JoinThread () override
void	StartThread () override
void	JoinThread () override

Detailed Description

This class is the base class for thread-based do-activities.

User should use IsStopRequested() to check for when to stop the activity.

Example implementation:

 class MyActivity : public ThreadActivity {
     void Run() override {
         while(!IsStopRequested()) {
             // do work
             ...
         }
     }
 };

Constructor & Destructor Documentation

ThreadActivity() [1/2]

rad::ThreadActivity::ThreadActivity ( const ThreadActivity &  )

delete

ThreadActivity() [2/2]

rad::ThreadActivity::ThreadActivity ( const ThreadActivity &  )

delete

Member Function Documentation

GetNativeHandle() [1/2]

pthread_t rad::ThreadActivity::GetNativeHandle ( ) const

overridevirtual

Returns

Native thread handle.

Implements rad::ThreadBaseActivity.

GetNativeHandle() [2/2]

pthread_t rad::ThreadActivity::GetNativeHandle ( ) const

overridevirtual

Returns

Native thread handle.

Implements rad::ThreadBaseActivity.

IsThreadJoined() [1/2]

bool rad::ThreadActivity::IsThreadJoined ( ) const

overridevirtual

Implements rad::ThreadBaseActivity.

IsThreadJoined() [2/2]

bool rad::ThreadActivity::IsThreadJoined ( ) const

overridevirtual

Implements rad::ThreadBaseActivity.

JoinThread() [1/2]

void rad::ThreadActivity::JoinThread ( )

overrideprotectedvirtual

Helper method to stop a do-activity thread.

Implements rad::ThreadBaseActivity.

JoinThread() [2/2]

void rad::ThreadActivity::JoinThread ( )

overrideprotectedvirtual

Implements rad::ThreadBaseActivity.

operator=() [1/2]

ThreadActivity& rad::ThreadActivity::operator= ( const ThreadActivity &  )

delete

operator=() [2/2]

ThreadActivity& rad::ThreadActivity::operator= ( const ThreadActivity &  )

delete

Run() [1/2]

virtual void rad::ThreadActivity::Run ( )

pure virtual

Implemented in MyTestDoActivity, server::ActivityMoving, exmalserver::ActivityMoving, server::ActivityMoving, and exmalserver::ActivityMoving.

Run() [2/2]

virtual void rad::ThreadActivity::Run ( )

pure virtual

Implemented in MyTestDoActivity, server::ActivityMoving, exmalserver::ActivityMoving, server::ActivityMoving, and exmalserver::ActivityMoving.

StartThread() [1/2]

void rad::ThreadActivity::StartThread ( )

overrideprotectedvirtual

Helper method to start a do-activity thread.

Implements rad::ThreadBaseActivity.

StartThread() [2/2]

void rad::ThreadActivity::StartThread ( )

overrideprotectedvirtual

Implements rad::ThreadBaseActivity.

ThreadBaseActivity() [1/4]

rad::ThreadBaseActivity::ThreadBaseActivity

delete

ThreadBaseActivity() [2/4]

rad::ThreadBaseActivity::ThreadBaseActivity

delete

ThreadBaseActivity() [3/4]

rad::ThreadBaseActivity::ThreadBaseActivity

delete

ThreadBaseActivity() [4/4]

rad::ThreadBaseActivity::ThreadBaseActivity

delete

---

The documentation for this class was generated from the following files:

• INTROOT/include/rad/activity.hpp
• rad/cpp/sm/src/activity.cpp
