rad::ThreadBaseActivity Class Reference

#include <activity.hpp>

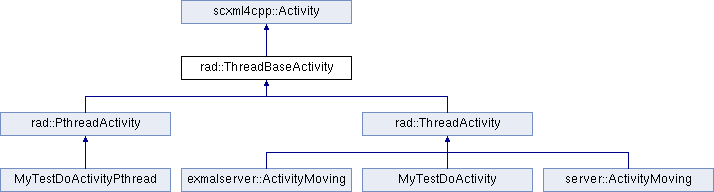

Inheritance diagram for rad::ThreadBaseActivity:

Public Member Functions
	ThreadBaseActivity (ThreadBaseActivity const &)=delete
void	start (scxml4cpp::Context *c) override
void	stop (scxml4cpp::Context *c) override
std::string	GetName () const
int	SetName (const std::string &name)
virtual pthread_t	GetNativeHandle () const =0
bool	IsStopRequested () const
	To be implemented by child classes. More...
virtual bool	IsThreadJoined () const =0
	ThreadBaseActivity (ThreadBaseActivity const &)=delete
void	start (scxml4cpp::Context *c) override
void	stop (scxml4cpp::Context *c) override
std::string	GetName () const
int	SetName (const std::string &name)
virtual pthread_t	GetNativeHandle () const =0
bool	IsStopRequested () const
	To be implemented by child classes. More...
virtual bool	IsThreadJoined () const =0
Public Member Functions inherited from scxml4cpp::Activity
	Activity (const std::string &id)
virtual	~Activity ()
std::string	getId () const
void	setId (const std::string &id)
	Activity (const std::string &id)
virtual	~Activity ()
std::string	getId () const
void	setId (const std::string &id)
	Activity (const std::string &id)
virtual	~Activity ()
std::string	getId () const
void	setId (const std::string &id)

Protected Member Functions
virtual void	StartThread ()=0
virtual void	JoinThread ()=0
virtual void	StartThread ()=0
virtual void	JoinThread ()=0

Detailed Description

Base class for different implementations of threaded activities.

It implements start(), stop() from scxml4cpp::Activity and provides IsStopRequested() which returns true if the activity implementation should stop and exit.

Implementations need to implement thread-specific methods:

• StartThread
• StopThread
• IsThreadJoined
• GetNativeHandle

This is a shared base for std::thread and pthread_t based threaded activities.

Note

that other perfectly valid options exist for interrupting the activity when it's time to stop. For example by using condition variables. This could be provided as a templated policy or a runtime provided implementation.

Constructor & Destructor Documentation

ThreadBaseActivity() [1/2]

rad::ThreadBaseActivity::ThreadBaseActivity ( ThreadBaseActivity const &  )

delete

ThreadBaseActivity() [2/2]

rad::ThreadBaseActivity::ThreadBaseActivity ( ThreadBaseActivity const &  )

delete

Member Function Documentation

GetName() [1/2]

std::string rad::ThreadBaseActivity::GetName

(

)

const

Returns

The name of the do-activity thread.

GetName() [2/2]

std::string rad::ThreadBaseActivity::GetName

(

)

const

Returns

The name of the do-activity thread.

GetNativeHandle() [1/2]

virtual pthread_t rad::ThreadBaseActivity::GetNativeHandle ( ) const

pure virtual

Returns

Native thread handle.

Implemented in rad::PthreadActivity, rad::ThreadActivity, rad::PthreadActivity, and rad::ThreadActivity.

GetNativeHandle() [2/2]

virtual pthread_t rad::ThreadBaseActivity::GetNativeHandle ( ) const

pure virtual

Returns

Native thread handle.

Implemented in rad::PthreadActivity, rad::ThreadActivity, rad::PthreadActivity, and rad::ThreadActivity.

IsStopRequested() [1/2]

bool rad::ThreadBaseActivity::IsStopRequested ( ) const

inline

To be implemented by child classes.

IsStopRequested() [2/2]

bool rad::ThreadBaseActivity::IsStopRequested ( ) const

inline

To be implemented by child classes.

IsThreadJoined() [1/2]

virtual bool rad::ThreadBaseActivity::IsThreadJoined ( ) const

pure virtual

Implemented in rad::PthreadActivity, rad::ThreadActivity, rad::PthreadActivity, and rad::ThreadActivity.

IsThreadJoined() [2/2]

virtual bool rad::ThreadBaseActivity::IsThreadJoined ( ) const

pure virtual

Implemented in rad::PthreadActivity, rad::ThreadActivity, rad::PthreadActivity, and rad::ThreadActivity.

JoinThread() [1/2]

virtual void rad::ThreadBaseActivity::JoinThread ( )

protectedpure virtual

Implemented in rad::PthreadActivity, rad::ThreadActivity, rad::PthreadActivity, and rad::ThreadActivity.

JoinThread() [2/2]

virtual void rad::ThreadBaseActivity::JoinThread ( )

protectedpure virtual

Implemented in rad::PthreadActivity, rad::ThreadActivity, rad::PthreadActivity, and rad::ThreadActivity.

SetName() [1/2]

int rad::ThreadBaseActivity::SetName

(

const std::string &

name

)

Set thread name.

Parameters

[in]

name

for the thread. Maximum length is 15 characters (excluding null terminator).

Returns

error code or 0 if successful.

SetName() [2/2]

int rad::ThreadBaseActivity::SetName

(

const std::string &

name

)

Set thread name.

Parameters

[in]

name

for the thread. Maximum length is 15 characters (excluding null terminator).

Returns

error code or 0 if successful.

start() [1/2]

void rad::ThreadBaseActivity::start ( scxml4cpp::Context *  c )

overridevirtual

Note

Will stop() activity if it's running.

Implements scxml4cpp::Activity.

start() [2/2]

void rad::ThreadBaseActivity::start ( scxml4cpp::Context *  c )

overridevirtual

Note

Will stop() activity if it's running.

Implements scxml4cpp::Activity.

StartThread() [1/2]

virtual void rad::ThreadBaseActivity::StartThread ( )

protectedpure virtual

Implemented in rad::PthreadActivity, rad::ThreadActivity, rad::PthreadActivity, and rad::ThreadActivity.

StartThread() [2/2]

virtual void rad::ThreadBaseActivity::StartThread ( )

protectedpure virtual

Implemented in rad::PthreadActivity, rad::ThreadActivity, rad::PthreadActivity, and rad::ThreadActivity.

stop() [1/2]

void rad::ThreadBaseActivity::stop ( scxml4cpp::Context *  c )

overridevirtual

Stop activity. If activity is already completed it does nothing.

Implements scxml4cpp::Activity.

stop() [2/2]

void rad::ThreadBaseActivity::stop ( scxml4cpp::Context *  c )

overridevirtual

Stop activity. If activity is already completed it does nothing.

Implements scxml4cpp::Activity.

---

The documentation for this class was generated from the following files:

• INTROOT/include/rad/activity.hpp
• rad/cpp/sm/src/activity.cpp
