A file based OLDB adapter that simulates OLDB with a local YAML file. More...

#include <fakeOldbAdapter.hpp>

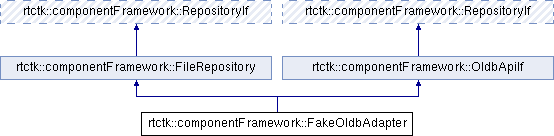

Inheritance diagram for rtctk::componentFramework::FakeOldbAdapter:

Public Member Functions
	FakeOldbAdapter ()=delete
	Do not allow construction with no arguments. More...

	FakeOldbAdapter (const FakeOldbAdapter &)=delete
	This class cannot be copy constructed. More...

FakeOldbAdapter &	operator= (const FakeOldbAdapter &)=delete
	This class cannot be copy assigned. More...

	FakeOldbAdapter (FakeOldbAdapter &&)=default
	The move constructor. More...

FakeOldbAdapter &	operator= (FakeOldbAdapter &&)=default
	The move assignment operator. More...

	FakeOldbAdapter (const ::elt::mal::Uri &datauri)

virtual	~FakeOldbAdapter ()

Public Member Functions inherited from rtctk::componentFramework::FileRepository
	FileRepository ()=delete

	FileRepository (const FileRepository &)=delete

FileRepository &	operator= (const FileRepository &)=delete

	FileRepository (FileRepository &&)=default

FileRepository &	operator= (FileRepository &&)=default

	FileRepository (const ::elt::mal::Uri &datauri, const int dirdepth)

virtual	~FileRepository ()

void	CreateDataPoint (const DataPointPath &path, const std::string &type) override
	Creates a new datapoint in the repository with a specified type. More...

void	DeleteDataPoint (const DataPointPath &path) override
	Deletes a datapoint. More...

std::string	GetDataPointType (const DataPointPath &path) const override
	Fetches the type of the datapoint. More...

size_t	GetDataPointSize (const DataPointPath &path) const override
	Fetches the size of the datapoint's data. More...

bool	DataPointExists (const DataPointPath &path) const override
	Checks for the existence of a datapoint in the repository. More...

std::pair< StringList, StringList >	GetChildren (const DataPointPath &path) const override
	Queries the datapoints and child paths for a given path. More...

Response	SendReadRequest (const Request &request) const override
	Sends a request to read data from the repository. More...

Response	SendWriteRequest (const Request &request) override
	Sends a request to write data to the repository. More...

size_t	get_fits_write_threshold () const

void	set_fits_write_threshold (size_t value)

virtual void	CreateDataPoint (const DataPointPath &path, const std::string &type)=0
	Creates a new datapoint in the repository with a specified type. More...

virtual void	DeleteDataPoint (const DataPointPath &path)=0
	Deletes a datapoint. More...

virtual std::string	GetDataPointType (const DataPointPath &path) const=0
	Fetches the type of the datapoint. More...

virtual size_t	GetDataPointSize (const DataPointPath &path) const=0
	Fetches the size of the datapoint's data. More...

virtual bool	DataPointExists (const DataPointPath &path) const=0
	Checks for the existence of a datapoint in the repository. More...

virtual std::pair< StringList, StringList >	GetChildren (const DataPointPath &path) const=0
	Queries the datapoints and child paths for a given path. More...

Public Member Functions inherited from rtctk::componentFramework::RepositoryIf
virtual	~RepositoryIf ()

template<typename T >
void	CreateDataPointV2 (const DataPointPath &path)
	Creates a new datapoint in the repository. More...

template<typename T >
void	CreateDataPointV2 (const DataPointPath &path, const T default_value)
	Creates a new datapoint in the repository and sets a default value. More...

template<typename T >
T	GetDataPoint (const DataPointPath &path) const
	Fetches a datapoint from the repository. More...

template<typename T >
void	SetDataPoint (const DataPointPath &path, const T value)
	Sets a datapoint in the repository. More...

template<typename T >
void	ReadDataPoint (const DataPointPath &path, T &buffer) const
	Reads a datapoint from the repository. More...

template<typename T >
void	WriteDataPoint (const DataPointPath &path, const T &buffer)
	Writes a datapoint to the repository. More...

void	WriteDataPoint (const DataPointPath &path, const char *buffer)

template<>
void	CreateDataPointV2 (const DataPointPath &path, const char *default_value)

template<>
void	SetDataPoint (const DataPointPath &path, const char *value)

Public Member Functions inherited from rtctk::componentFramework::OldbApiIf
virtual	~OldbApiIf ()

Additional Inherited Members
Public Types inherited from rtctk::componentFramework::RepositoryIf
using	StringList = std::vector< std::string >

Detailed Description

A file based OLDB adapter that simulates OLDB with a local YAML file.

This class is used to simulate access to OLDB when it is not feasible to provide a full working OLDB and access it through OldbAdapter. Its use should be restricted to development and certain integration testing, since it is not written with scalability and performance in mind.

The data is stored to and read from a local YAML file, who's location is given as a file scheme URI. The YAML file format uses nested dictionaries to represent the hierarchical tree structure that corresponds to the datapoint paths. For example, if we have 3 datapoints, an integer with a path of "topdir/subdir/dp1", a floating point with a path of "topdir/subdir/dp2" and a string with a path of "topdir/dp3", this would correspond to the following YAML:

topdir:
    subdir:
        dp1:
            type: RtcInt32
            value: 123
        dp2:
            type: RtcFloat
            value: 4.5
    dp3:
        type: RtcString
        value: "somevalue"

As can be seen in the above example YAML, each datapoint has the fundamental data type stored under the type field and its value is found under the value field.

The allowed values for type are one of the following:

RtcBool - A boolean type corresponding to bool, i.e. can store true or false.
RtcInt32 - A 32 bit signed integer corresponding to int32_t.
RtcInt64 - A 64 bit signed integer corresponding to int64_t.
RtcFloat - A 32 bit floating-point number corresponding to float.
RtcDouble - A 64 bit floating-point number corresponding to double.
RtcString - An ASCII character string corresponding to std::string.
RtcVectorBool - A vector of boolean values corresponding to std::vector<bool>.
RtcVectorInt32 - A vector of 32 bit signed integers corresponding to std::vector<int32_t>.
RtcVectorInt64 - A vector of 64 bit signed integers corresponding to std::vector<int64_t>.
RtcVectorFloat - A vector of 32 bit floating-point numbers corresponding to std::vector<float>.
RtcVectorDouble - A vector of 64 bit floating-point numbers corresponding to std::vector<double>.
RtcVectorString - A vector of ASCII character strings corresponding to std::vector<std::string>.
RtcMatrixBool - A matrix of boolean values corresponding to MatrixBuffer<bool>.
RtcMatrixInt32 - A matrix of 32 bit signed integers corresponding to MatrixBuffer<int32_t>.
RtcMatrixInt64 - A matrix of 64 bit signed integers corresponding to MatrixBuffer<int64_t>.
RtcMatrixFloat - A matrix of 32 bit floating-point numbers corresponding to MatrixBuffer<float>.
RtcMatrixDouble - A matrix of 64 bit floating-point numbers corresponding to MatrixBuffer<double>.
RtcMatrixString - A matrix of ASCII character strings corresponding to MatrixBuffer<std::string>.

Note that vectors and matrices are both stored as lists in the YAML format. However, matrices will have the additional fields nrows and ncols set. For example:

topdir:
    matrix_datapoint:
        type: RtcMatrixFloat
        nrows: 2
        ncols: 3
        value: [1.0, 2.0, 3.0, 4.0, 5.0, 6.0]

File based locking is used to make all read/write methods synchronous between all processes and threads.

Constructor & Destructor Documentation

◆ FakeOldbAdapter() [1/4]

rtctk::componentFramework::FakeOldbAdapter::FakeOldbAdapter ( )

delete

Do not allow construction with no arguments.

◆ FakeOldbAdapter() [2/4]

rtctk::componentFramework::FakeOldbAdapter::FakeOldbAdapter ( const FakeOldbAdapter & )

delete

This class cannot be copy constructed.

◆ FakeOldbAdapter() [3/4]

rtctk::componentFramework::FakeOldbAdapter::FakeOldbAdapter ( FakeOldbAdapter && )

default

The move constructor.

◆ FakeOldbAdapter() [4/4]

rtctk::componentFramework::FakeOldbAdapter::FakeOldbAdapter ( const ::elt::mal::Uri & datauri )

explicit

Constructs a file based OLDB.

Parameters

[in] datauri The URI to the YAML file that will store the datapoints. This only accepts file scheme URIs on the local file system.

Note: If the YAML file does not yet exist, it will only be created on the first call to RepositoryIf::CreateDataPoint or RepositoryIf::CreateDataPointV2.

◆ ~FakeOldbAdapter()

rtctk::componentFramework::FakeOldbAdapter::~FakeOldbAdapter ( )

virtual

Destroys the file based OLDB.

Note: The YAML file will not be deleted by destroying the FakeOldbAdapter object.

Member Function Documentation

◆ operator=() [1/2]

FakeOldbAdapter& rtctk::componentFramework::FakeOldbAdapter::operator= ( const FakeOldbAdapter & )

delete

This class cannot be copy assigned.

◆ operator=() [2/2]

FakeOldbAdapter& rtctk::componentFramework::FakeOldbAdapter::operator= ( FakeOldbAdapter && )

default

The move assignment operator.

The documentation for this class was generated from the following files:

componentFramework/services/oldb/src/include/rtctk/componentFramework/fakeOldbAdapter.hpp
componentFramework/services/oldb/src/fakeOldbAdapter.cpp
