FORS1 trending system: History Plots
Last update: 2009-04-29T13:49:37 (UT)
| now: 2014-07-25T18:54:53 (UT)
same group: CONAD FPN   DARK
less ... | history ... | plot tutorial ... | contact                 daily     [?]
Print: Information and research: News:
- png file - advanced studies: QC1 browser | QC1 plotter

Plot
?
Symb
?
Source
*
OPS?
**
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB yes (0) MEDIAN 1.445 e-/ADU 3SIG± 0.01007 19 conad_A this | last_yr | all port A (Garching)
1 QC1DB yes (0) none   e-/ADU none   19 conad_B this | last_yr | all port B (Garching)
1 QC1DB yes (0) none   e-/ADU none   19 conad_C this | last_yr | all port C (Garching)
1 QC1DB yes (0) none   e-/ADU none   19 conad_D this | last_yr | all port D (Garching)
2 QC1DB yes (0) MEDIAN 2.835 e-/ADU 3SIG± 0.01955 19 conad_A this | last_yr | all port A (Garching)
2 QC1DB yes (0) none   e-/ADU none   19 conad_B this | last_yr | all port B (Garching)
2 QC1DB yes (0) none   e-/ADU none   19 conad_C this | last_yr | all port C (Garching)
2 QC1DB yes (0) none   e-/ADU none   19 conad_D this | last_yr | all port D (Garching)
*Data sources: QC1DB: QC1 database; LOCAL: local text file | **OPS: to indicate that OPSLOG data are included
This plot

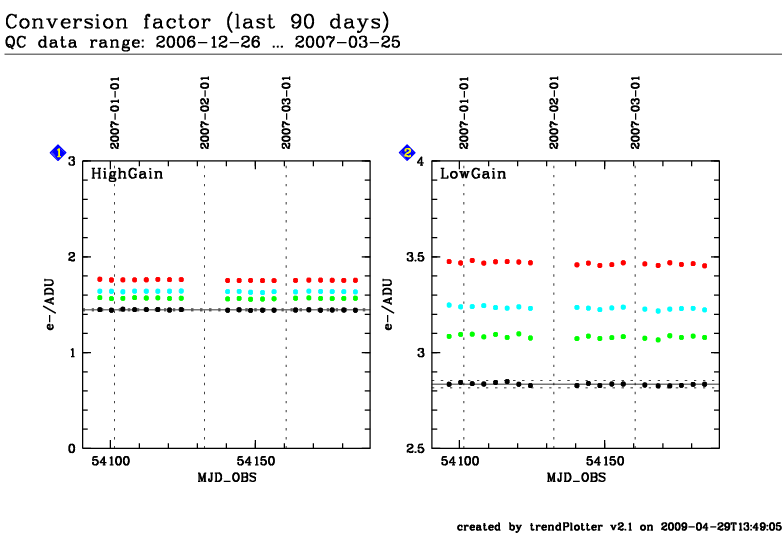

If the exposure time of the first two raw screen flat fields in the input set of frames is the same (within 4%), the difference frame is computed. Then the whole readout port is divided into a chessboard of 16x16 boxes. For each one of these boxes, the median signal level from the first raw frame is divided by the variance in the difference frame scaled by 2. The median value of the 16x16 values obtained is the accepted value for the conversion factor. CONAD QC parameters are trended per readout mode for the R_BESS filter only.


General information

Click on any of the plots to see a close-up version.

If applicable, the latest values from Paranal ops logs are plotted as blue dots. More information about those values, including a download option, is available in the OPS column.

The latest date is indicated on top of the plot, data points belonging to that date are specially marked.

If configured,

  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
