FORS1 trending system: History Plots
Last update: 2009-04-29T13:55:34 (UT)
| now: 2022-06-28T22:07:20 (UT)
same group: CONAD FPN   DARK
less ... | history ... | plot tutorial ... | contact                 daily     [?]
Print: Information and research: News:
- png file - advanced studies: QC1 browser | QC1 plotter

Plot
?
Symb
?
Source
*
OPS?
**
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB no MEDIAN 0.00701 NONE none   19 FPN_rel this | last_yr | all ABCD,1x1,high, R_BESS (Garching)
*Data sources: QC1DB: QC1 database; LOCAL: local text file | **OPS: to indicate that OPSLOG data are included
This plot

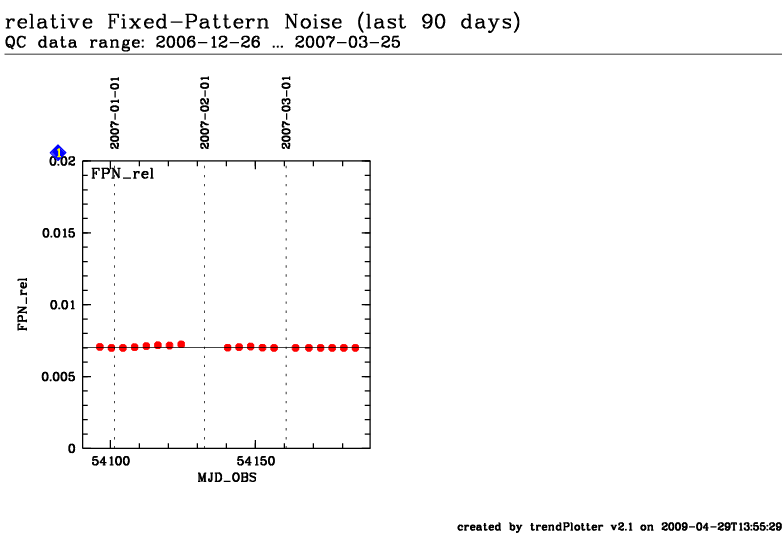

The fixed-pattern noise is computed in the following way: The difference of two 100x100 sub-frames of the same master flat field image is determined. These two sub-frames are are shifted with respect to each other by 10 pixels in X- and Y-direction. The population standard deviation of the difference frame, divided by the square root of 2, minus the photon noise (geometrically subtracted) yields the fixed-pattern noise, which is then divided by the median of the respective region.


General information

Click on any of the plots to see a close-up version. The latest date is indicated on top of the plot, data points belonging to that date are specially marked.

If configured,

  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
