GIRAFFE trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-07-20T04:36:22 (UT)
  | now: 2024-07-20T10:55:21 (UT) muc02 QC pipeline: giraf-2.16.10 (installed 2023-06-22)
same group: rms N_lines resolution
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
The links to KMOS, UVES, and ESPRESSO have been moved to a new section (qcFlow operational) at the lower part of the navigation bar.
GIRAFFE news:
Report news:
DATE*: [?] 2024-07-13
report | NLT
2024-07-14
report | NLT
2024-07-15
report | NLT
2024-07-16
report | NLT
2024-07-17
report | NLT
2024-07-18
report | NLT
2024-07-19
report | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw raw
P...
CAL product quality:
products products products products products products products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact | HC_docu... | quality events...                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
- reference arclamp files
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 0.163 pix VAL0.16,0.23 24 rms_fit this | last_yr | all rms of fitted lines (pix); H525.8B, Medusa1
2 xQC1DB MEDIAN 0.162 pix VAL0.16,0.23 26 rms_fit this | last_yr | all as plot 1, Medusa2
3 QC1DB MEDIAN 0.122 pix VAL0.09,0.16 14 rms_fit this | last_yr | all as plot 1, IFU1
4 QC1DB MEDIAN 0.135 pix VAL0.09,0.16 14 rms_fit this | last_yr | all as plot 1, IFU2
5 QC1DB MEDIAN 0.107 pix VAL0.09,0.16 13 rms_fit this | last_yr | all as plot 1, Argus
6 QC1DB MEDIAN 0.194 pix VAL0.14,0.21 44 rms_fit this | last_yr | all rms of fitted lines (pix); L543.1, Medusa1
7 xQC1DB MEDIAN 0.22 pix VAL0.14,0.21 48 rms_fit this | last_yr | all ... same for Medusa2
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: 2|
data source:giraffe_wave
(QC1 database)
dataset:rms_fit
median:0.163pix
fixed thresholds:0.16...0.23pix
N_data plotted:24
[click plot for closeup]
Plot 2
scores: 2|
data source:giraffe_wave
(QC1 database)
dataset:rms_fitx
median:0.162pix
fixed thresholds:0.16...0.23pix
N_data plotted:26
[click plot for closeup]
Plot 3
scores: 2|
data source:giraffe_wave
(QC1 database)
dataset:rms_fit
median:0.122pix
fixed thresholds:0.09...0.16pix
N_data plotted:14
[click plot for closeup]
Plot 4
scores: 1|
data source:giraffe_wave
(QC1 database)
dataset:rms_fit
median:0.135pix
fixed thresholds:0.09...0.16pix
N_data plotted:14
[click plot for closeup]
Plot 5
scores: 1|
data source:giraffe_wave
(QC1 database)
dataset:rms_fit
median:0.107pix
fixed thresholds:0.09...0.16pix
N_data plotted:13
[click plot for closeup]
Plot 6
scores: 3|
data source:giraffe_wave
(QC1 database)
dataset:rms_fit
median:0.194pix
fixed thresholds:0.14...0.21pix
N_data plotted:44
[click plot for closeup]
Plot 7
scores: 5|
data source:giraffe_wave
(QC1 database)
dataset:rms_fitx
median:0.22pix
fixed thresholds:0.14...0.21pix
N_data plotted:48
[click plot for closeup]

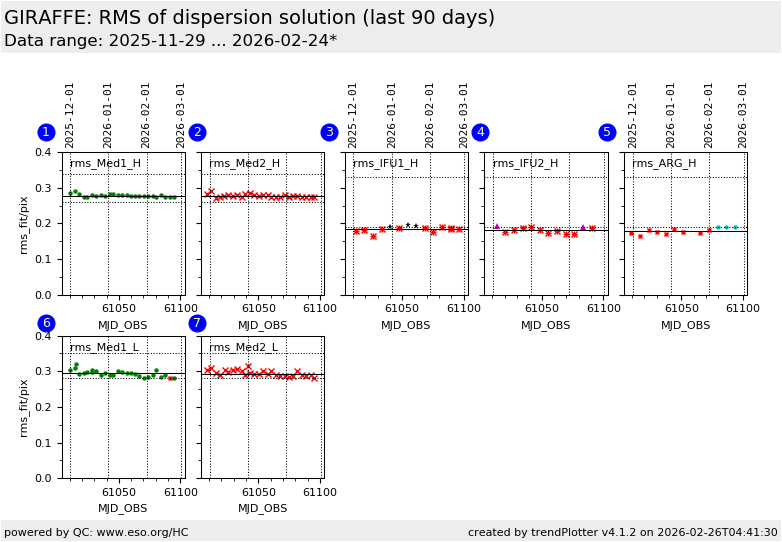

This plot

This is the Health Check plot for the quality of the dispersion solution in the GIRAFFE arclamp calibration data. We display here the QC1 parameter rms_fit (PRO.WSOL.RMS) which describes the rms of the residuals of the accepted line positions against the dispersion solution. This plot monitors the HC data taken in high resolution (H525.8B) and low resolution (L543.1, Medusa1 and 2 only).

The arclamp has been replaced on 2013-04-20, since then rms_fit is slightly higher than before but without quality impact.

Check the N_LINES plot of this group for the number of lines accepted for the dispersion solution, and the RESOL plot for resolution monitoring.

Check also the ARCLAMP plot under "lamp stability", to check the efficiency of the ARC lamp.


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
