GIRAFFE trending system: HEALTH CHECK plot
Last update: 2008-09-06T00:27:08 (UT)
now: 2008-09-06T06:18:46 (UT)
INFO USERS-GUIDE MORE
same group: Health   all_FLATs per_WLN
last OPSLOG data:
2008-09-04
Plot: 1 2 4 5 6   latest_files
N_data: number of recent OPSLOG entries plotted here
N_data: 0 0 0 1 0 availability
less ... | history ... | plot tutorial ... | contact                 daily/often; important to check     [?]
Print: Information and research: News:
- png file - advanced studies: QC1 browser | QC1 plotter
- trending information about CCD (noise) parameters
- dynamic QC1 plot
- efficiency curves for Medusa settings
- current fibre pattern
- reference flats
Gap due to CCD upgrade; new CCD since 2008-05-01
Plot
?
Symb
?
Source
*
OPS?
**
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB yes (0) MEDIAN 7258.08057 counts VAL2000,19000 25 mean_raw this | last_yr | all flat field level, L543.1 setting; Medusa1
2 +QC1DB yes (0) MEDIAN 7164.24756 counts VAL2000,19000 27 mean_raw this | last_yr | all as plot 1, Medusa2
4 [7]QC1DB yes (0) MEDIAN 8082.06934 counts VAL3000,24000 12 mean_raw this | last_yr | all as plot 1, IFU1
5 [20]QC1DB yes (1) MEDIAN 8396.35449 counts VAL3000,24000 11 mean_raw this | last_yr | all as plot 1, IFU2
6 QC1DB yes (0) MEDIAN 5994.37793 counts VAL3000,24000 14 mean_raw this | last_yr | all as plot 1, Argus
*Data sources: QC1DB: QC1 database; LOCAL: local text file | **OPS: to indicate that OPSLOG data are included
This plot

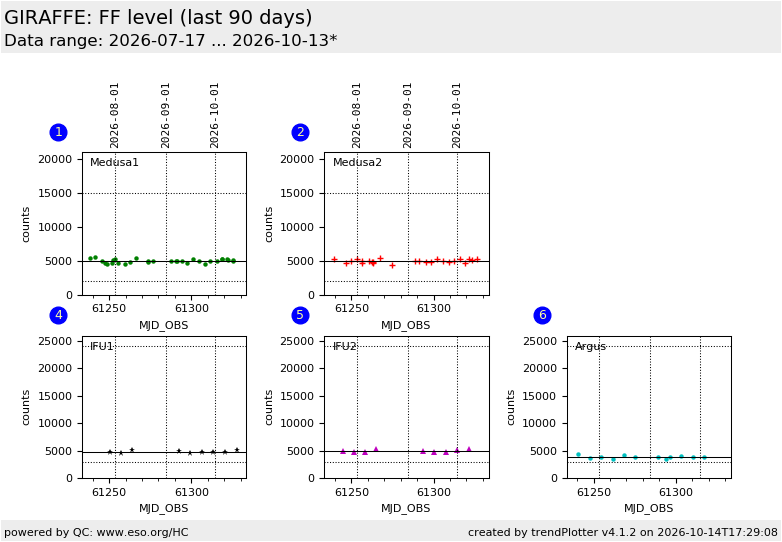

This is the Health Check plot for the signal level in the GIRAFFE flat field calibration data. We display the QC1 parameter mean_raw (QC.OUT1.MEAN.RAW) of the first input raw frame. This plot monitors the L543.1 HC flat data only.

The purpose of this plot is to guarantee that all flat field calibration data have an exposure level which is good enough to record the pixel-to-pixel gain variations.

Check the other plots of this group for data from any measured flat field, sorted over time ("ALL") or over wavelength ("per WLN").

The data are checked against upper and lower limits. The lower limit is the most important one. From the CCD trending plot (no. 1), it follows that a single flat must have a minimum flux level of roughly 20.000 ADU at the fibre peak, in order to be dominated by the pixel-to-pixel gain pattern rather than by photon noise. From the topology of the flat frame signal, it follows a corresponding mean_raw value of about 7000 ADU. Assuming three input flats creating a single master fiber flat, we derive an approximate lower limit of 2000 ADU. This value is marked as lower threshold in the plot.

In the same way, the IFU flats require about 3000 ADUs on average.

The upper limit is derived from the saturation limit.


General information

Click on any of the plots to see a close-up version.

If applicable, the latest values from Paranal ops logs are plotted as blue dots. More information about those values, including a download option, is available in the OPSLOG section on top of the page.

The latest date is indicated on top of the plot, data points belonging to that date are specially marked.

If configured,

  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
