GRAVITY trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-05-23T18:33:17 (UT)
  | now: 2024-05-24T05:05:30 (UT) muc05 QC pipeline: gravity-1.5.4 (installed 2022-03-24)
same group: refpos_1 refpos_2 OPD_fit   Ar_lamp_1 Ar_lamp_2 dispersion
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
The links to KMOS, UVES, and ESPRESSO have been moved to a new section (qcFlow operational) at the lower part of the navigation bar.
GRAVITY news:
Report news:
DATE*: [?] 2024-05-17
no data | NLT
2024-05-18
no data | NLT
2024-05-19
no data | NLT
2024-05-20
no data | NLT
2024-05-21
no data | NLT
2024-05-22
no data | NLT
2024-05-23
no data | NLT
r...
Raw CAL displays:
no CAL raw files no CAL raw files no CAL raw files no CAL raw files no CAL raw files no CAL raw files no CAL raw files
P...
CAL product quality:
no CAL products no CAL products no CAL products no CAL products no CAL products no CAL products no CAL products

transfer   ngas [?]

scores&comments | history ... | plot tutorial ... | contact | HC_docu... | quality events...               [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN -1.61e-05 microns none  23 wdiff1 this | last_yr | all accuracy of wavelength solution for Ar line 1 at 1.997 microns
2 QC1DB MEDIAN 0.000127 microns none  23 wdiff2 this | last_yr | all accuracy of wavelength solution for Ar line 2 at 2.032 microns
3 QC1DB MEDIAN 4.79e-05 microns none  23 wdiff3 this | last_yr | all accuracy of wavelength solution for Ar line 3 at 2.062 microns
4 QC1DB MEDIAN -4.31e-05 microns none  23 wdiff4 this | last_yr | all accuracy of wavelength solution for Ar line 4 at 2.099 microns
5 QC1DB MEDIAN -9.22e-05 microns none  23 wdiff5 this | last_yr | all accuracy of wavelength solution for Ar line 5 at 2.134 microns
6 QC1DB MEDIAN 0.000153 microns VAL1.0E-4,3.0E-4 23 disp_rms this | last_yr | all RMS of dispersion solution over all lines
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: not implemented
data source:gravity_wavelamp
(QC1 database)
dataset:wdiff1
median:-1.61e-05microns
thresholds:none
N_data plotted:23
[click plot for closeup]
Plot 2
scores: not implemented
data source:gravity_wavelamp
(QC1 database)
dataset:wdiff2
median:0.000127microns
thresholds:none
N_data plotted:23
[click plot for closeup]
Plot 3
scores: not implemented
data source:gravity_wavelamp
(QC1 database)
dataset:wdiff3
median:4.79e-05microns
thresholds:none
N_data plotted:23
[click plot for closeup]
Plot 4
scores: not implemented
data source:gravity_wavelamp
(QC1 database)
dataset:wdiff4
median:-4.31e-05microns
thresholds:none
N_data plotted:23
[click plot for closeup]
Plot 5
scores: not implemented
data source:gravity_wavelamp
(QC1 database)
dataset:wdiff5
median:-9.22e-05microns
thresholds:none
N_data plotted:23
[click plot for closeup]
Plot 6
scores: 2|
data source:gravity_wavelamp
(QC1 database)
dataset:disp_rms
median:0.000153microns
fixed thresholds:0.0001...0.0003microns
N_data plotted:23
[click plot for closeup]
This plot

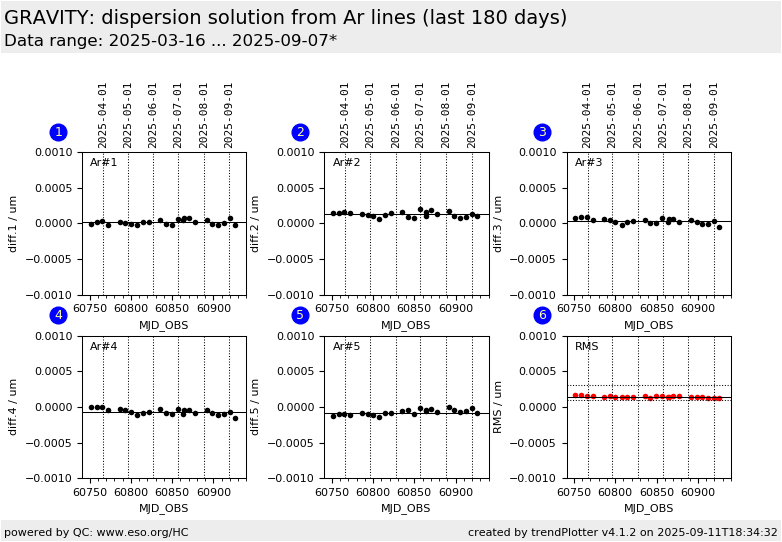

Trending plot for wavelength calibration using Ar arc lamp.

The plot monitors the differences between the calatalogue Ar wavelength and the wavelength from the dispersion solution for the SC detector and MEDIUM resolution. There are ten lines in total, split between two plots. In addition, there is also the RMS of the differences (on plot 1 only).




General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
