MIDI trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2014-09-19T10:54:46 (UT)
  | now: 2014-09-19T12:46:10 (UT) muc05 QC pipeline: midi-2.8.3 (installed 2014-03-19)
same group: TRANS COUNTS
General news:
MIDI news:
Report news:
DATE*: [?] 2014-09-12
report | NLT
2014-09-13
report | NLT
2014-09-14
report | NLT
2014-09-15
report | NLT
2014-09-16
report | NLT
2014-09-17
report | NLT
2014-09-18
report | NLT
P...
Product quality:
products products products products products products products
  last OPSLOG data:
2014-09-18*

last files ...
monitor

scores&comments | history ... | plot tutorial ... | contact                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
- general comment: Apparent variations in transmission are usually due to high pressure (see pressure plot)
Plot
?
Symb
?
Source
*
OPS?
**
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB yes (3) MEDIAN 0.808 NONE VAL0.74,1.00 89 disp4_transmission this | last_yr | all prism [ARIII]
2 QC1DB yes (3) MEDIAN 0.79 NONE VAL0.76,1.00 89 disp5_transmission this | last_yr | all prism [NeII]
3 QC1DB yes (3) MEDIAN 0.833 NONE VAL0.78,1.00 89 disp6_transmission this | last_yr | all prism [SIV]
4 QC1DB yes (3) MEDIAN 0.511 NONE VAL0.4,1.00 88 disp4_transmission this | last_yr | all grism [ARIII]
5 QC1DB yes (3) MEDIAN 0.503 NONE VAL0.4,1.00 88 disp5_transmission this | last_yr | all grism [NeII]
6 QC1DB yes (3) MEDIAN 0.586 NONE VAL0.4,1.00 88 disp6_transmission this | last_yr | all grism [SIV]
*Data sources: QC1DB: QC1 database; LOCAL: local text file | **OPS: OPSLOG data are included

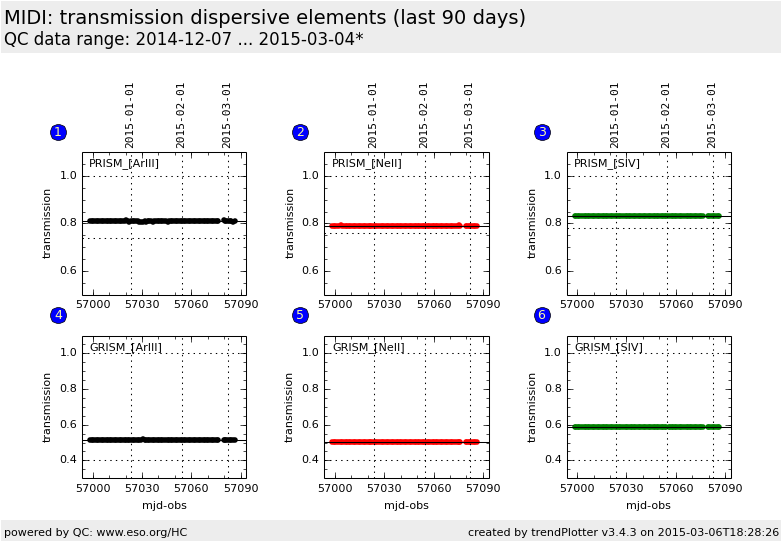

Plot 1
scores: 7|
data source:midi_dettrn
(QC1 database)
dataset:disp4_transmission
median:0.808NONE
fixed thresholds:0.74...1.0NONE
N_data plotted:89
[click on plot for closeup]
Plot 2
scores: 7|
data source:midi_dettrn
(QC1 database)
dataset:disp5_transmission
median:0.79NONE
fixed thresholds:0.76...1.0NONE
N_data plotted:89
[click on plot for closeup]
Plot 3
scores: 7|
data source:midi_dettrn
(QC1 database)
dataset:disp6_transmission
median:0.833NONE
fixed thresholds:0.78...1.0NONE
N_data plotted:89
[click on plot for closeup]
Plot 4
scores: 8|
data source:midi_dettrn
(QC1 database)
dataset:disp4_transmission
median:0.511NONE
fixed thresholds:0.4...1.0NONE
N_data plotted:88
[click on plot for closeup]
Plot 5
scores: 8|
data source:midi_dettrn
(QC1 database)
dataset:disp5_transmission
median:0.503NONE
fixed thresholds:0.4...1.0NONE
N_data plotted:88
[click on plot for closeup]
Plot 6
scores: 8|
data source:midi_dettrn
(QC1 database)
dataset:disp6_transmission
median:0.586NONE
fixed thresholds:0.4...1.0NONE
N_data plotted:88
[click on plot for closeup]
This plot

MIDI has 2 dispersive elements a prism (R=30) and a grism (R=230). The transmission of each element is measured through narrow-band filters at three wavelengths (9.00, 10.46 and 12.80 microns). Measurement through the same filters but without the dispersion are also performed to normalize the transmission.


General information

Click on any of the plots to see a close-up version.

If applicable, the latest values from Paranal ops logs are plotted as blue dots. More information about those values, including a download option, is available in the OPS column.

The latest date is indicated on top of the plot, data points belonging to that date are specially marked.

If configured,

  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
