Trending plots for the number of cold pixels detected in master DOME flats: ALL filters (except u_g_r_i_SDSS).

QC parameters are derived from each of 32 detectors of OmegaCAM DOME master flat frames.
All master dome flat filters can be compared in a single Health Check plot since their flux levels are normalized.

DB Name: omegacam_dome
Fits header: QC.NUMBER.COLD.PIXELS
QC1 DB: qc_dome_cold_pixels

Description:
The number of cold pixels detected in the master dome flat pipeline product frame COLD_PIXELS_MAP

Setup:
BIN.X / BIN.Y / READ.MODE / READ.SPEED = 1/1/normal/normal

These Health Check plots describe:

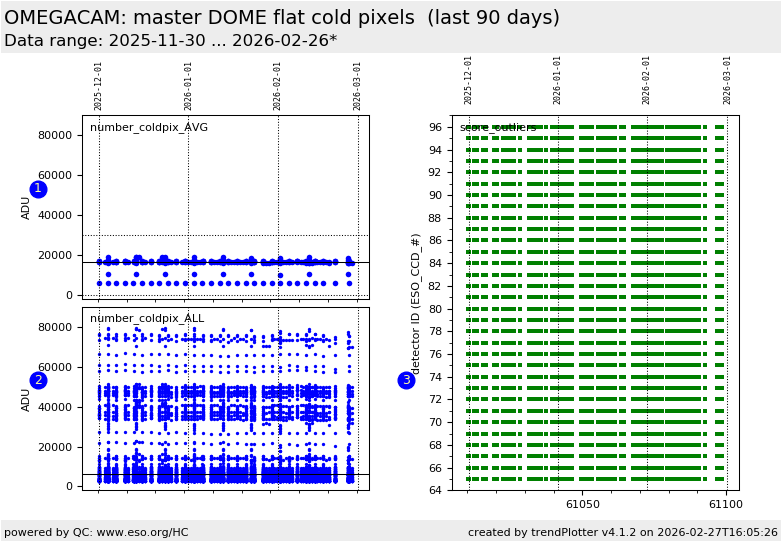

Fig. 1 number_coldpix_AVG: The number of cold pixels in the master dome flats averaged over all 32 detectors. This plot is sensitive to any changes common to all detectors.
Fig. 2 number_coldpix_ALL: The number of cold pixels in the master dome flats as detected in each individual detector. This plot is sensitive changes in individual detectors.
Fig. 3 score_outliers: Scores of the number of cold pixels master dome flat as measured for each of the 32 detectors.
Green = within the defined thresholds.
Red = beyond the defined thresholds.


OmegaCAM detector plane layout (detector_ID locations):
OmegaCAM detector layout


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
