Plot 1
scores: not implemented
| | data source: | omegacam_std
(QC1 database) |
| dataset: | qc_zeropoint_electron | • |
| median: | 25.6 | mag |
| fixed thresholds: | 24.5...26.5 | mag |
| N_data plotted: | 125 |
| [click on plot for closeup] |
Plot 2
scores: not implemented
| | data source: | omegacam_std
(QC1 database) |
| dataset: | qc_zeropoint_electron | • |
| median: | 0.0383 | mag |
| fixed thresholds: | 0.0...0.9 | mag |
| N_data plotted: | 147 |
| [click on plot for closeup] |
Plot 3
scores: not implemented
| | data source: | omegacam_std
(QC1 database) |
| dataset: | qc_zeropoint_electron | • |
| median: | 25.6 | mag |
| fixed thresholds: | 24.5...26.5 | mag |
| N_data plotted: | 3921 |
| [click on plot for closeup] |
Trending plots for standard zeropoints: r_SDSS .
QC parameters are derived from each of 32 detectors of OmegaCAM STD,ZEROPOINT frames.
DB Name: omegacam_std
Fits header: QC.ZEROPOINT_ELECTRON / QC.ZEROPOINT_ELECTRON.ERR
QC1 DB: qc_zeropoint_electron / qc_zeropoint_electron_err
Description:
The zeropoints are measured using flux units in electrons and are contained in the pipeline product frame ZEROPOINTS
Setup:
INS.FILT1.NAME / BIN.X / BIN.Y / READ.MODE / READ.SPEED = r_SDSS/1/1/normal/normal
These Health Check plots describe:

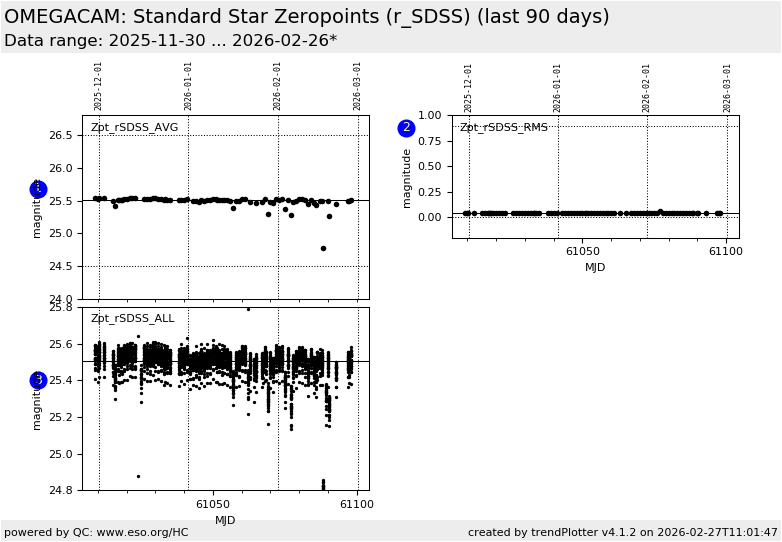

Fig. 1
Zpt_rSDSS_AVG: The r_SDSS zeropoints averaged over all 32
detectors. This plot is sensitive to any changes common to all
detectors.
Fig. 2 Zpt_rSDSS_RMS: The rms of the r_SDSS zeropoints
averaged over all 32 detectors.
Fig. 3 Zpt_rSDSS_ALL: The r_SDSS
zeropoints for each individual detector. This plot is sensitive
changes in individual detectors. Also, Paranal opslog data are
included. The data from Paranal is filtered (s.t. mag.>=20.0) and
averaged over the 8 detectors for which it is measured.
OmegaCAM detector plane layout (detector_ID locations):
General information
Click on any of the plots to see a close-up version.
If applicable, the latest values from Paranal ops logs are plotted as blue dots. More information about those values, including a download option, is available in the OPS column.
The latest date is indicated on top of the plot, data points belonging to that date are specially marked.
If configured,
- statistical averages are indicated by a solid line, and thresholds by broken lines
- outliers are marked by a red asterisk. They are defined as data points outside the
threshold lines
- "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
- you can download the data for each parameter set if the 'Data downloads' link shows up
|
