1 QC1DB MEDIAN 0.426 ADU OFF± 10.0 6 current_dark all (full time range) dark current in Parasitic Light, readout mode 225kHz,1x1,low; BLUE CCD; scoring is not implemented since data are too scattered
2 QC1DB MEDIAN 0.783 ADU OFF± 10.0 5 current_dark all (full time range) same, for REDL CCD
3 QC1DB MEDIAN 0.603 ADU OFF± 10.0 5 current_dark all (full time range) same, for REDU CCD
4 QC1DB MEDIAN 12 ADU OFF± 10.0 164 current_dark all (full time range) dark current in Parasitic Light, readout mode 50kHz,2x2,high; BLUE CCD; scoring is not implemented since data are too scattered
5 QC1DB MEDIAN 5.02 ADU OFF± 10.0 246 current_dark all (full time range) same, for REDL CCD
6 QC1DB MEDIAN 4.18 ADU OFF± 10.0 244 current_dark all (full time range) same, for REDU CCD
*Data sources: QC1DB: QC1 database; LOCAL: local data source

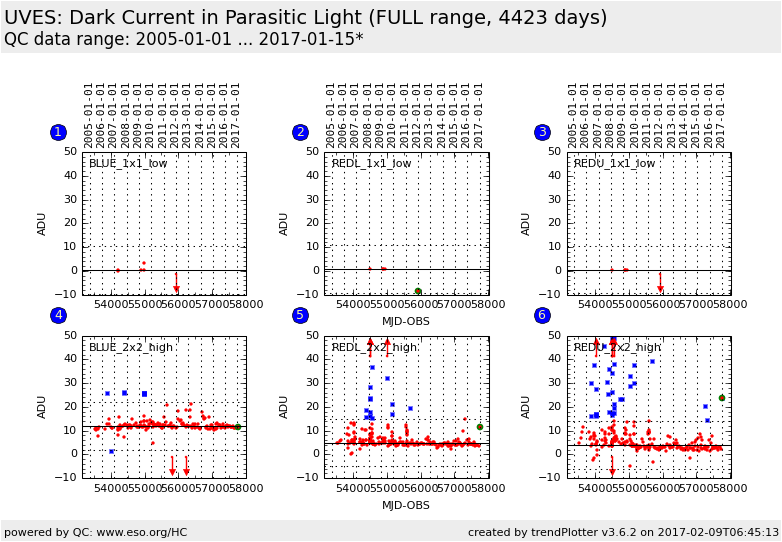

Plot 1
scores: not implemented
data source:uves_dark
(QC1 database)
dataset:current_dark
median:0.426ADU
rel. thresholds: -9.574...10.426ADU
N_data plotted:6
[click on plot for closeup]
Plot 2
scores: not implemented
data source:uves_dark
(QC1 database)
dataset:current_dark
median:0.783ADU
rel. thresholds: -9.217...10.783ADU
N_data plotted:5
[click on plot for closeup]
Plot 3
scores: not implemented
data source:uves_dark
(QC1 database)
dataset:current_dark
median:0.603ADU
rel. thresholds: -9.3965...10.6035ADU
N_data plotted:5
[click on plot for closeup]
Plot 4
scores: not implemented
data source:uves_dark
(QC1 database)
dataset:current_dark
median:12ADU
rel. thresholds: 2.005...22.005ADU
N_data plotted:164
[click on plot for closeup]
Plot 5
scores: not implemented
data source:uves_dark
(QC1 database)
dataset:current_dark
median:5.02ADU
rel. thresholds: -4.979...15.021ADU
N_data plotted:246
[click on plot for closeup]
Plot 6
scores: not implemented
data source:uves_dark
(QC1 database)
dataset:current_dark
median:4.18ADU
rel. thresholds: -5.824...14.176ADU
N_data plotted:244
[click on plot for closeup]
This plot

This is the trending report for UVES QC parameters derived from Parasitic Light frames.
These frames are taken approximately once per month, as a single exposure of 3600 secs in a dark enclosure BUT with the CCD shutter OPEN (as compared to the DARK frames where the CCD shutter is closed). These data are de-biased and combined into a MASTER_DARK, in which the average dark level is measured (in ADU/px/hr). [There are also shorter exposures, they are subject to false results. If you find an outlier, check first the exposure time under 'Data downloads'!]

The purpose of these exposures is to detect low-level contaminating light sources (e.g. LEDs) originating INSIDE the instrument.

These plots describe:

  • the DARK current in master PARASITIC_DARK (or PDARK) frames of the BLUE|REDL|REDU chips in the 1x1 binning, 225kHz, low gain readout mode
  • same for the BLUE|REDL|REDU chips in the 2x2 binning, 50kHz, high gain readout mode.

General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
