UVES trending system: HEALTH CHECK report
Last update: 2012-05-24T06:34:07 (UT)
| now: 2012-05-24T15:43:11 (UT)
HELP USERS-GUIDE MORE
same group: dark linearity gain
General news: 2012-05-24: The HC monitors for OMEGACAM, VIRCAM and HAWKI are back. Population with current data is in progress.
UVES news:
Report news:
DATE*: [?] 2012-05-17
report | NR 		2012-05-18
report | NR 		2012-05-19
report | NR 		2012-05-20
report | NR 		2012-05-21
report | NR 		2012-05-22
report | NR 		2012-05-23
report | NR
P...
Product quality:
products products products products products products products
  no OPSLOG data

scores&comments | history ... | plot tutorial ... | contact               [?] 		*Date on this monitor changes at 21:00 UT
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?		 Symb
?		 Source
*		 OPS?
**		 Average ? Thresholds ? N_
data		 QC1
parameter		 Data
downloads		 Remarks
method value unit method value
1 •QC1DB no FIXED -0.0035 ADU/el OFF± 0.002 18 lin_eff this | last_yr | all effective non-linearity correction (from DETMON recipe), BLUE CCD, readout mode 225kHz,1x1,low
2 •QC1DB no FIXED -0.0055 ADU/el OFF± 0.002 16 lin_eff this | last_yr | all same for REDL CCD
3 •QC1DB no FIXED -0.0005 ADU/el OFF± 0.002 16 lin_eff this | last_yr | all same for REDU CCD
4 •QC1DB no FIXED -0.0025 ADU/el OFF± 0.002 18 lin_eff this | last_yr | all same for BLUE CCD, readout mode 50kHz,2x2,high
5 •QC1DB no FIXED -0.0025 ADU/el OFF± 0.002 13 lin_eff this | last_yr | all same for REDL CCD
6 •QC1DB no FIXED -0.0005 ADU/el OFF± 0.002 13 lin_eff this | last_yr | all same for REDU CCD
*Data sources: QC1DB: QC1 database; LOCAL: local text file | **OPS: to indicate that OPSLOG data are included

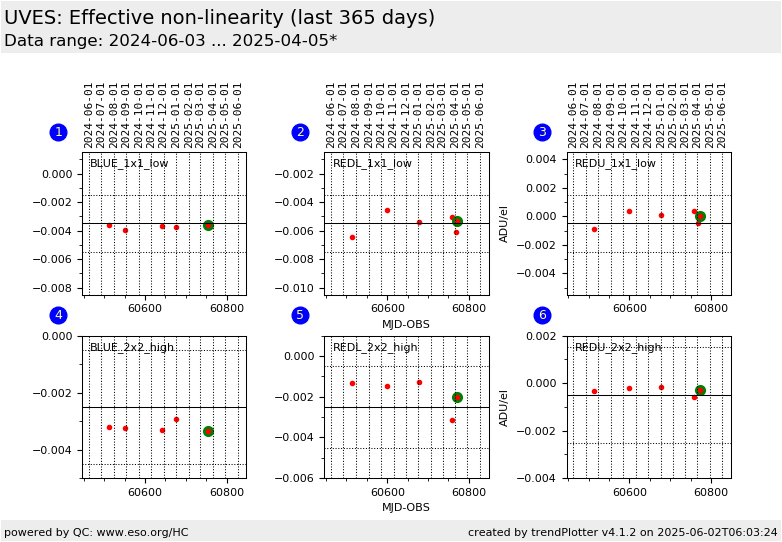

Plot 1
scores: 2|
data source:uves_lingain
(QC1 database)
dataset:lin_eff•
fixed average:-0.0035ADU/el
rel. thresholds: -0.0055...-0.0015ADU/el
N_data plotted:18
[click on plot for closeup]
Plot 2
scores: 2|
data source:uves_lingain
(QC1 database)
dataset:lin_eff•
fixed average:-0.0055ADU/el
rel. thresholds: -0.0075...-0.0035ADU/el
N_data plotted:16
[click on plot for closeup]
Plot 3
scores: 2|
data source:uves_lingain
(QC1 database)
dataset:lin_eff•
fixed average:-0.0005ADU/el
rel. thresholds: -0.0025...0.0015ADU/el
N_data plotted:16
[click on plot for closeup]
Plot 4
scores: 3|
data source:uves_lingain
(QC1 database)
dataset:lin_eff•
fixed average:-0.0025ADU/el
rel. thresholds: -0.0045...-0.0005ADU/el
N_data plotted:18
[click on plot for closeup]
Plot 5
scores: 2|
data source:uves_lingain
(QC1 database)
dataset:lin_eff•
fixed average:-0.0025ADU/el
rel. thresholds: -0.0045...-0.0005ADU/el
N_data plotted:13
[click on plot for closeup]
Plot 6
scores: 2|
data source:uves_lingain
(QC1 database)
dataset:lin_eff•
fixed average:-0.0005ADU/el
rel. thresholds: -0.0025...0.0015ADU/el
N_data plotted:13
[click on plot for closeup]
This plot

This is the trending report for UVES effective non-linearity correction QC parameter derived from Detector-Monitoring frames.
These frames are taken approximately once per month, as a set of 25 consecutive exposures, 5 BIAS frames and 10 pairs of FLATs of varying exposure time and thus various signal level designed to sample the full dynamic range of the detector.
These plots describe:

  1. the measured GAIN of the BLUE chip in the 1x1 binning, 225kHz, low gain readout mode
  2. the measured GAIN of the LOWER RED chip in the 1x1 binning, 225kHz, low gain readout mode
  3. the measured GAIN of the UPPER RED chip in the 1x1 binning, 225kHz, low gain readout mode
  4. the measured GAIN of the BLUE chip in the 2x2 binning, 50kHz, high gain readout mode
  5. the measured GAIN of the LOWER RED chip in the 2x2 binning, 50kHz, high gain readout mode
  6. the measured GAIN of the UPPER RED chip in the 2x2 binning, 50kHz, high gain readout mode

Find more information about UVES DARK frames here.
Basic QC parameters related to detector properties (like median level, ReadOut Noise, etc ) are trended here.
General information

Click on any of the plots to see a close-up version. The latest date is indicated on top of the plot, data points belonging to that date are specially marked.

If configured,

  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
  • you can download the data for each parameter set if the 'Data downloads' link shows up
