VIRCAM trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2014-07-30T12:03:12 (UT)
  | now: 2014-07-30T16:34:33 (UT) muc07 QC pipeline: vcam-1.3.3 (installed 2014-03-19)
same group: MED_1.0011 RON12_1.0011 RMS_1.0011 STRIPE_1.0011   MED_120 RON12_120 RMS_120 STRIPE_120
General news:
VIRCAM news:
Report news:
DATE*: [?] 2014-07-23
no data | NLT
2014-07-24
no data | NLT
2014-07-25
report | NLT
2014-07-26
report | NLT
2014-07-27
report | NLT
2014-07-28
report | NLT
2014-07-29
report | NLT
P...
Product quality:
no products no products products products products products products
  last OPSLOG data:
2014-07-29*

last files ...
monitor

scores&comments | history ... | plot tutorial ... | contact                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
  • REFERENCE frames
  • 2009-06-03: Scoring (red/green squares in the group bar and in the navigation bar) is on the detector average (Fig. 1) and detector rms (Fig. 3) values alone.
    Scores of individual detector values (Fig. 4) are for detailed analysis but do not contribute to the overall instrument score.
Plot
?
Symb
?
Source
*
OPS?
**
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB yes (9) MEDIAN 26.8 ADU VAL10,42 52 qc_darkmed this | last_yr | all DARKMED, average over all 16 detectors
2 QC1DB yes (144) MEDIAN 12.1 ADU VAL0,110 831 qc_darkmed this | last_yr | all DARKMED, values of all detectors
2 QC1DB yes (144) MEDIAN 12.7 ADU none  52 qc_darkmed this | last_yr | all DARKMED, values of detector 7
2 QC1DB yes (144) MEDIAN 80.6 ADU none  52 qc_darkmed this | last_yr | all DARKMED, values of detector 3
3 QC1DB yes (9) MEDIAN 26.5 ADU VAL15,42 52 qc_darkmed this | last_yr | all DARKMED, stdev over all detectors
4 LOCAL no none   ADU none  826 qc_darkmed n/a Score per Detector: Green = within the thresholds
4 LOCAL no none   ADU none  6 qc_darkmed n/a Score per Detector: Red = beyond thresholds
4 .LOCAL no none   ADU none  826 qc_darkmed n/a Score per Detector: Green = within the thresholds
4 .LOCAL no none   ADU none  6 qc_darkmed n/a Score per Detector: Red = beyond thresholds
*Data sources: QC1DB: QC1 database; LOCAL: local text file | **OPS: OPSLOG data are included
Plot 1
scores: 5|
data source:vircam_dark
(QC1 database)
dataset:qc_darkmed
median:26.8ADU
fixed thresholds:10...42ADU
N_data plotted:52
[click on plot for closeup]
Plot 2
scores: not implemented
data source:vircam_dark
(QC1 database)
dataset:
(numbers below apply to this dataset)
qc_darkmed
median:12.1ADU
fixed thresholds:0...110ADU
N_data plotted:831
[click on plot for closeup]
Plot 3
scores: 5|
data source:vircam_dark
(QC1 database)
dataset:qc_darkmed
median:26.5ADU
fixed thresholds:15...42ADU
N_data plotted:52
[click on plot for closeup]
Plot 4
scores: not implemented
data source:local text file
dataset:
(numbers below apply to this dataset)
qc_darkmed
average:none
thresholds:none
N_data plotted:826
[click on plot for closeup]

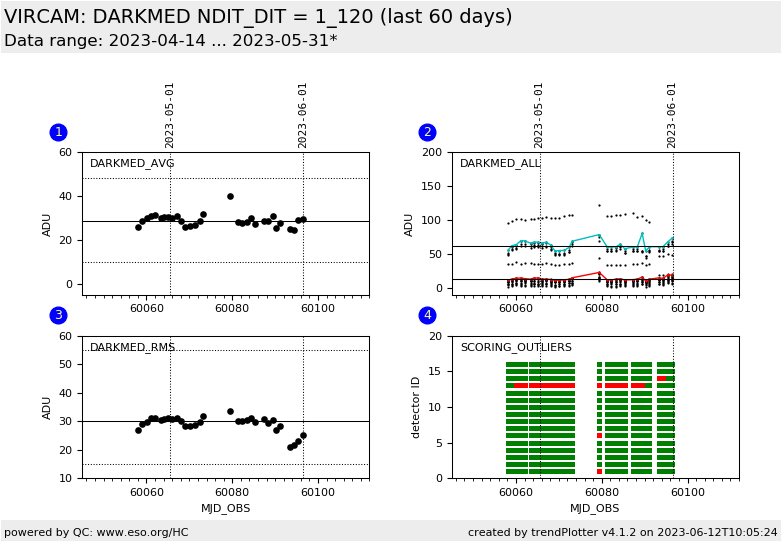

This plot

Trending plot for median dark level.

QC parameters is derived from each detector of daily DARK frames.

Name:
Fits header: QC.DARKMED,
QC1 DB: qc_darkmed

Description:
Median of the MASTER_DARK pipeline product frame

Setup:
DET.DIT = 120 sec

DET.NDIT = 1

These plots describe:
Fig. 1. Average view: The QC parameter averaged over all detectors. This view is sensitive to common changes.
Fig. 2. Resolved View: The QC parameter resolved for all detectors.
Fig. 3. Scatter View: The standard deviation of the QC parameter, obtained from the sample of all detectors. This view is sensitive changes of individual detectors.
Fig. 4. Scoring View: Scoring values of all 16 QC parameters. Green = within the acceptance thresholds. Red = beyond the acceptance thresholds.

Find more information on the VIRCAM DARK tutorial page.




General information

Click on any of the plots to see a close-up version.

If applicable, the latest values from Paranal ops logs are plotted as blue dots. More information about those values, including a download option, is available in the OPS column.

The latest date is indicated on top of the plot, data points belonging to that date are specially marked.

If configured,

  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
