XSHOOTER trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2014-12-19T12:40:12 (UT)
  | now: 2014-12-19T13:56:19 (UT) muc02 QC pipeline: xshoo-2.5.4 (installed 2014-11-11)
same group: remnance DIT=1s DIT=5s DIT=300s DIT=600s DIT=900s
General news:
XSHOOTER news:
Report news: 2014-11-27 The dark level is expected to show the asymptotic long-term behaviour, as usual after a warmup/cooldown of the detector. [whummel@eso.org]
DATE*: [?] 2014-12-12
report | NLT
2014-12-13
report | NLT
2014-12-14
report | NLT
2014-12-15
report | NLT
2014-12-16
report | NLT
2014-12-17
report | NLT
2014-12-18
report | NLT
P...
Product quality:
products products products products products products products
  last OPSLOG data:
2014-12-18*

last files ...
monitor

scores&comments | history ... | plot tutorial ... | contact                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
OPS?
**
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB yes (8) FIXED 150 ADU VAL100,180 72 median_dark this | last_yr | all median of master dark
2 QC1DB no MEDIAN 6.45 ADU 20%± 1.29 72 ron this | last_yr | all read out noise of raw frame
3 QC1DB no FIXED 0.025 NONE VAL0.015,0.050 72 fp_norm this | last_yr | all fixed-pattern noise of master dark
4 QC1DB no MEDIAN 6.35 NONE VAL2,10 72 cosmic_rate this | last_yr | all cosmic hit rate of dark per cm^2
*Data sources: QC1DB: QC1 database; LOCAL: local text file | **OPS: OPSLOG data are included
Plot 1
scores: 8|
data source:xshooter_dark
(QC1 database)
dataset:median_dark
fixed average:150ADU
fixed thresholds:100...180ADU
N_data plotted:72
[click on plot for closeup]
Plot 3
scores: 8|
data source:xshooter_dark
(QC1 database)
dataset:fp_norm
fixed average:0.025NONE
fixed thresholds:0.015...0.05NONE
N_data plotted:72
[click on plot for closeup]
Plot 2
scores: 8|
data source:xshooter_dark
(QC1 database)
dataset:ron
median:6.45ADU
rel. thresholds: ±20%5.1562632...7.7343948ADU
N_data plotted:72
[click on plot for closeup]
Plot 4
scores: 8|
data source:xshooter_dark
(QC1 database)
dataset:cosmic_rate
median:6.35NONE
fixed thresholds:2...10NONE
N_data plotted:72
[click on plot for closeup]

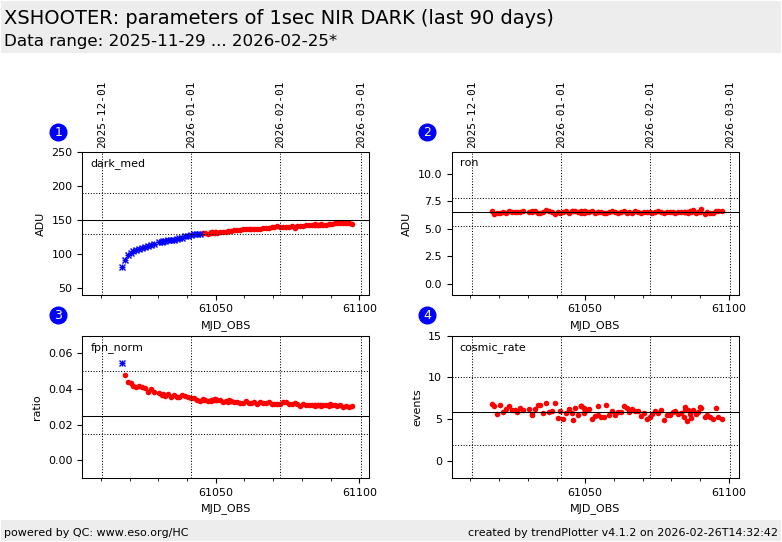

This plot

Here we show various parameters for NIR dark frames: median level and rms of the master dark, the cosmic ray hit rate (per second and unit area), and the amplitude of the fixed pattern divided by the dark_med value.

Since 2013-05-05, pipeline xsh_2.2.0 is in operation with an improved calculation of the relative fixed pattern noise.

The newly calculated fpn_norm parameter is approximatly dark_rms / dark_med. Therefore monitoring dark_rms will become obsolete. The read out noise will be monitored instead.

For more information see the plot tutorial page.


General information

Click on any of the plots to see a close-up version.

If applicable, the latest values from Paranal ops logs are plotted as blue dots. More information about those values, including a download option, is available in the OPS column.

The latest date is indicated on top of the plot, data points belonging to that date are specially marked.

If configured,

  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
