XSHOOTER trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2015-07-28T00:42:20 (UT)
  | now: 2015-07-28T20:12:53 (UT) muc02 QC pipeline: xshoo-2.6.0 (installed 2015-04-23)
same group: efficiency
General news: Please note the new feature 'forced refresh', see button below, right-hand side of 'ngas' ↓.
XSHOOTER news:
Report news:
DATE*: [?] 2015-07-21
report | NLT
2015-07-22
report | NLT
2015-07-23
report | NLT
2015-07-24
report | NLT
2015-07-25
report | NLT
2015-07-26
report | NLT
2015-07-27
report | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw raw
P...
Product quality:
products products products products products products products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact               [?]
*Date on this monitor changes at 21:00 UT
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 0.214 NONE none  49 eff1 this | last_yr | all Relative efficiency for NIR arm, range 1541-1548 nm
2 QC1DB MEDIAN 9.86e+03 ADU none  49 counts1 this | last_yr | all median star counts in NIR arm, range 1541-1548 nm
3 QC1DB none   NONE none  49 med_eff_0 this | last_yr | all Chromatic efficiency plot for NIR arm; the values trended in plot are marked. The plot is constituted from the following wavelength ranges: 2357 nm
3 QC1DB none   NONE none  49 med_eff_1 this | last_yr | all 2181 nm
3 QC1DB none   NONE none  49 med_eff_2 this | last_yr | all 2011 nm
3 QC1DB none   NONE none  49 med_eff_3 this | last_yr | all 1868 nm
3 QC1DB none   NONE none  49 med_eff_4 this | last_yr | all 1744 nm
3 QC1DB none   NONE none  49 med_eff_5 this | last_yr | all 1635 nm
3 QC1DB none   NONE none  49 med_eff_6 this | last_yr | all 1539 nm
3 QC1DB none   NONE none  49 med_eff_7 this | last_yr | all 1454 nm
3 QC1DB none   NONE none  49 med_eff_8 this | last_yr | all 1377 nm
3 QC1DB none   NONE none  49 med_eff_9 this | last_yr | all 1309 nm
3 QC1DB none   NONE none  49 med_eff_10 this | last_yr | all 1246 nm
3 QC1DB none   NONE none  49 med_eff_11 this | last_yr | all 1190 nm
3 QC1DB none   NONE none  46 med_eff_12 this | last_yr | all 1138 nm
3 QC1DB none   NONE none  49 med_eff_13 this | last_yr | all 1091 nm
3 QC1DB none   NONE none  49 med_eff_14 this | last_yr | all 1048 nm
3 QC1DB none   NONE none  49 med_eff_15 this | last_yr | all 1012 nm
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: not implemented
data source:xshooter_efficiency
(QC1 database)
dataset:eff1
median:0.214NONE
thresholds:none
N_data plotted:49
[click on plot for closeup]
Plot 2
scores: not implemented
data source:xshooter_flux
(QC1 database)
dataset:counts1
median:9.86e+03ADU
thresholds:none
N_data plotted:49
[click on plot for closeup]
Plot 3
scores: not implemented
data source:xshooter_efficiency
(QC1 database)
dataset:
(numbers below apply to this dataset)
med_eff_0
average:none
thresholds:none
N_data plotted:49
[click on plot for closeup]

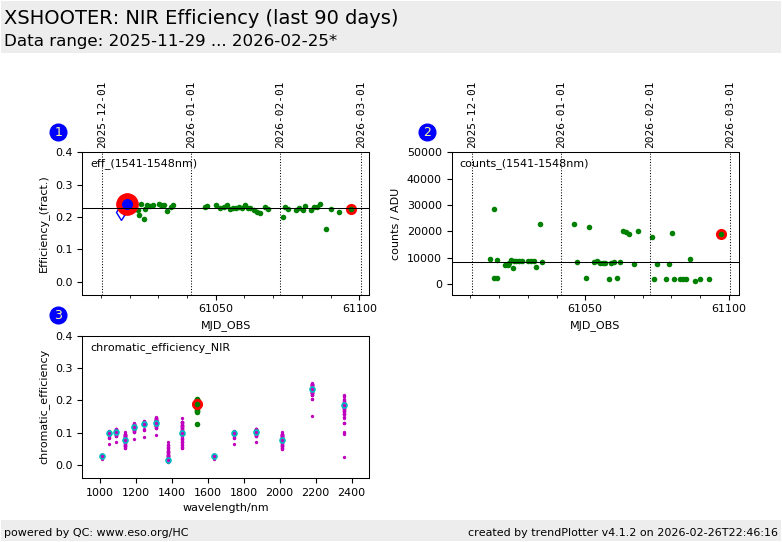

This plot

This plot shows the efficiency per echelle order. The efficiency is obtained from flux standard stars acquired with a 5 arcsec wide slit. The different count rates in Plot No. 2 originate from the different magnitutes within the set of used flux standard stars.


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
