XSHOOTER trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-06-13T22:41:44 (UT)
  | now: 2024-06-14T03:56:41 (UT) muc02 QC pipeline: xshoo-3.6.5a (installed 2023-09-18)
same group: efficiency D2_response QTH_response curvature
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
The links to KMOS, UVES, and ESPRESSO have been moved to a new section (qcFlow operational) at the lower part of the navigation bar.
XSHOOTER news:
Report news:
DATE*: [?] 2024-06-07
report | NLT
2024-06-08
report | NLT
2024-06-09
report | NLT
2024-06-10
report | NLT
2024-06-11
report | NLT
2024-06-12
report | NLT
2024-06-13
no data | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw no CAL raw files
P...
CAL product quality:
products products products products products products no CAL products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact | HC_docu... | quality events...               [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 0.186 NONE none  46 eff2 this | last_yr | all Relative efficiency for UVB arm, range 5100A - 5300A
1 QC1DB none   NONE none  2 eff2 this | last_yr | all EFFMON template, started under photometric conditions
2 QC1DB MEDIAN 7.9e+04 ADU none  51 counts2 this | last_yr | all median star counts in UVB arm, range 5100A - 5300A
3 QC1DB none   NONE none  47 med_eff_0 this | last_yr | all Chromatic efficiency plot for UVB arm; the values trended in plot are marked. The plot is constituted from the following wavelength ranges: 5670A
3 QC1DB none   NONE none  48 med_eff_1 this | last_yr | all 5280A
3 QC1DB none   NONE none  48 med_eff_2 this | last_yr | all 4920A
3 QC1DB none   NONE none  48 med_eff_3 this | last_yr | all 4620A
3 QC1DB none   NONE none  48 med_eff_4 this | last_yr | all 4350A
3 QC1DB none   NONE none  48 med_eff_5 this | last_yr | all 4120A
3 QC1DB none   NONE none  48 med_eff_6 this | last_yr | all 3900A
3 QC1DB none   NONE none  48 med_eff_7 this | last_yr | all 3720A
3 QC1DB none   NONE none  48 med_eff_8 this | last_yr | all 35400
3 QC1DB none   NONE none  48 med_eff_9 this | last_yr | all 3380A
3 QC1DB none   NONE none  47 med_eff_10 this | last_yr | all 3230A
3 QC1DB none   NONE none  48 med_eff_11 this | last_yr | all 3090A
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: not implemented
data source:xshooter_fluxeff
(QC1 database)
dataset:
(numbers below apply to this dataset)
eff2
median:0.186NONE
thresholds:none
N_data plotted:46
[click plot for closeup]
Plot 2
scores: not implemented
data source:xshooter_fluxeff
(QC1 database)
dataset:counts2
median:7.9e+04ADU
thresholds:none
N_data plotted:51
[click plot for closeup]
Plot 3
scores: not implemented
data source:xshooter_fluxeff
(QC1 database)
dataset:
(numbers below apply to this dataset)
med_eff_0
average:none
thresholds:none
N_data plotted:47
[click plot for closeup]

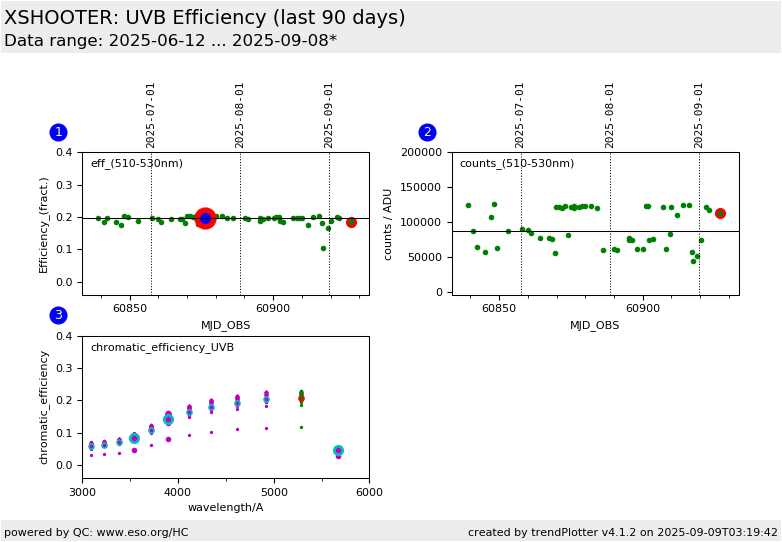

This plot
