| This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey). | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
| bottom plots | contact | ||||||||||||||||||||||||||||
| NAME | vimos_stdimg.py | |||||||||||||||||||||||||||
| VERSION |
1.0 -- July 2009 1.0.1 -- supporting numpy V1.3 and matplotlib V0.99 (2009-10-30) 1.0.2 -- skip call of scoreQC (2011-05-31) 1.0.3 -- create cover sheet (2011-08-31) 1.0.4 -- changes needed for muc (2013-02-07) 1.0.5 -- changes for qc_imadisp v1.5 (2014-01-20) 1.0.6 -- remove usage of has_key dictionary attribute (2014-03-12) 1.1 -- usage of qc_imaplt (2016-03-11) | |||||||||||||||||||||||||||
| SYNTAX | PYTHON | |||||||||||||||||||||||||||
| CALL |
processQC from $DFS_PRODUCT/STD_IMG/$DATE /home/vimos/python/vimos_stdimg.py -i -a $AB | |||||||||||||||||||||||||||
| INSTRUMENT | VIMOS | |||||||||||||||||||||||||||
| RAWTYPE | STD_IMG | |||||||||||||||||||||||||||
| PURPOSE | QC checks for standard star fields | |||||||||||||||||||||||||||
| PROCINPUT |
reduced standard star image IMG_STANDARD_REDUCED, table of found stars IMG_STAR_MATCH_TABLE | |||||||||||||||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: vimos_zp_frame | |||||||||||||||||||||||||||
| TRENDPLOT |
trending | HealthCheck plot(s) associated to this procedure: trend_report_ZEROPOINTS_U_HC.html | trend_report_ZEROPOINTS_B_HC.html | trend_report_ZEROPOINTS_V_HC.html | trend_report_ZEROPOINTS_R_HC.html | trend_report_ZEROPOINTS_I_HC.html | trend_report_ZPERR_U_HC.html | trend_report_ZPERR_B_HC.html | trend_report_ZPERR_V_HC.html | trend_report_ZPERR_R_HC.html | trend_report_ZPERR_I_HC.html | |||||||||||||||||||||||||||
| QC1PAGE |
trending | associated documentation: zeropoints.html | |||||||||||||||||||||||||||
| QC1PLOTS top |

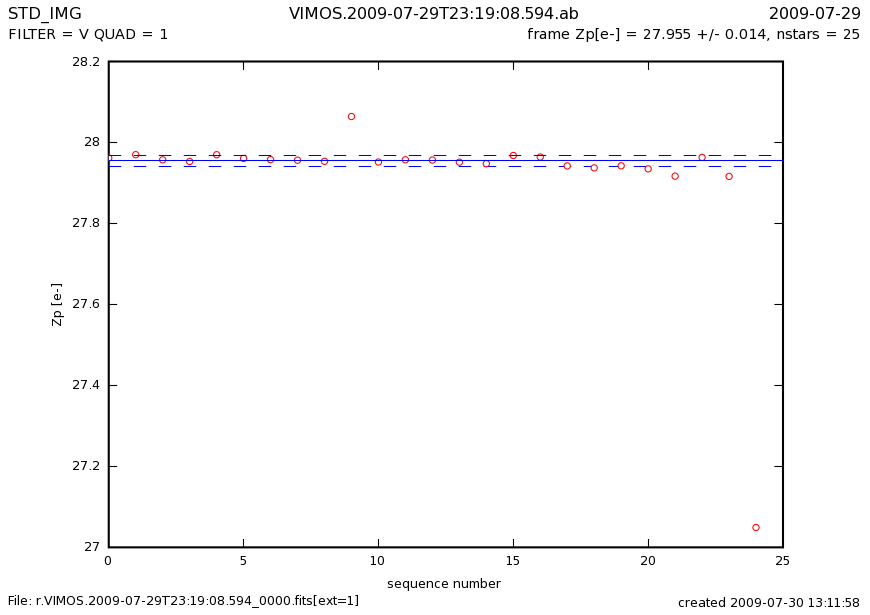

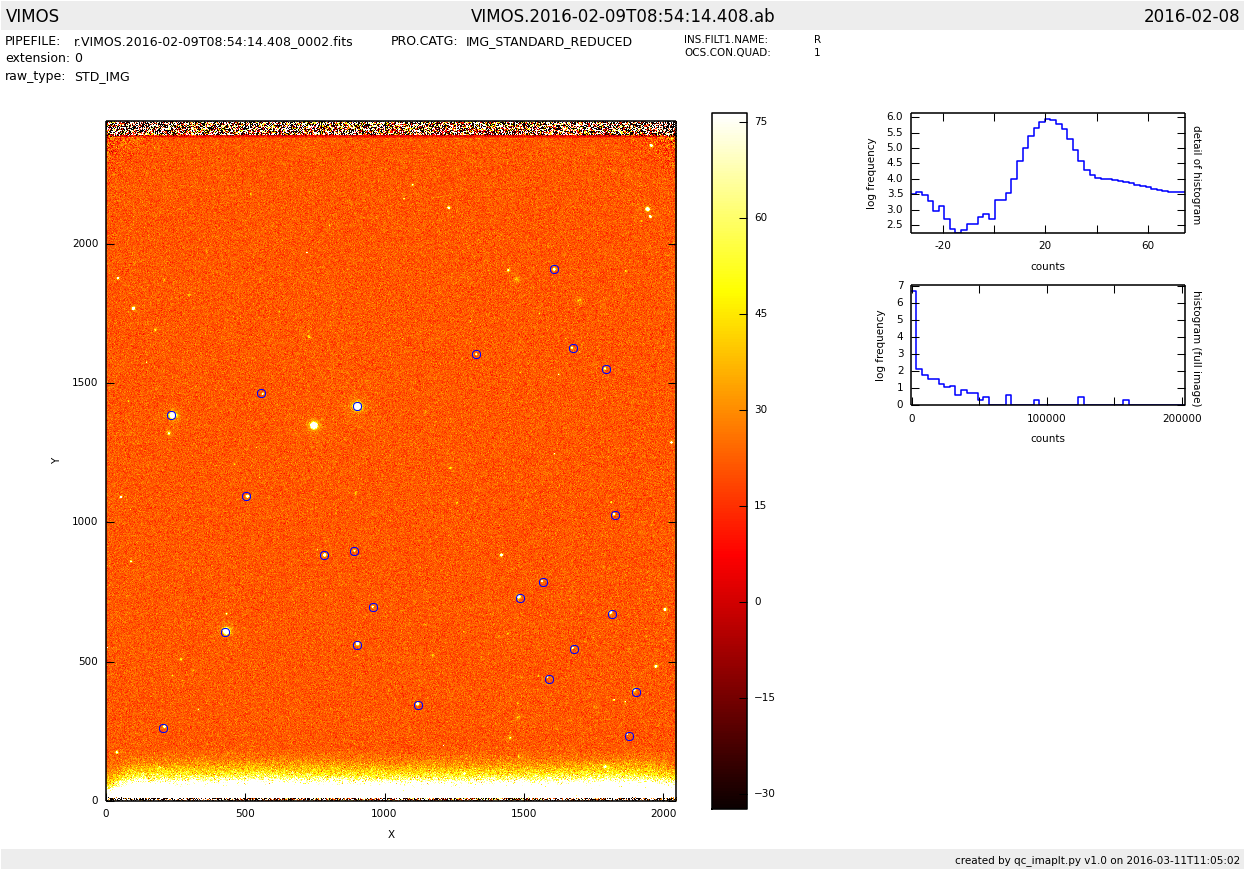

stdimg1.png zeropoints from all identified stars in the observed field, compared to average stdimg2.png reduced frame, identified stars are marked | |||||||||||||||||||||||||||
| QC1PARAM |
QC1 parameters written in QC1 database: QC1 DB names: num_stars | zp_frame | sig_zp_frame | ext_coeff_used | col_term_used | colour All parameters are calculated by the pipeline recipe. | |||||||||||||||||||||||||||
| ALGORITHM |
Description of algorithms: num_stars: number of stars used in zeropoint computation zp_frame: averaged gain-corrected zeropoint of frame (in e-); averaging uses biweight estimator from Beers et al. 1990, AJ 100, 32 sig_zp_frame: error of frame zeropoint ext_coeff_used: fixed value col_term_used: fixed value colour: colour used | |||||||||||||||||||||||||||
| CERTIF |
Reasons for rejection: instrumental failure like shutter problems | |||||||||||||||||||||||||||
| COMMENTS | trending uses zeropoints for complete night which are calculated from all available fields for each filter and are stored into QC1 DB table vimos_zp_night | |||||||||||||||||||||||||||
