ERIS trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2023-06-08T05:00:10 (UT)
  | now: 2023-06-08T06:12:32 (UT) muc04 QC pipeline: eris-1.2.1 (installed 2023-06-02)
same group:   dit=1.64 dit=10 dit=60 dit=300 dit=600 dit=900 dark_vs_dit
General news: NOTE: The Health Check and calChecker services will be moved to qcFlow in the course of 2023 on an instrument by instrument basis. The current pages will then not be updated any longer.
ERIS news: The main HC plots have been configured, additional ones will be further added.
Report news:
DATE*: [?] 2023-06-01
report | NLT 		2023-06-02
report | NLT 		2023-06-03
report | NLT 		2023-06-04
report | NLT 		2023-06-05
report | NLT 		2023-06-06
report | NLT 		2023-06-07
report | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw raw
P...
CAL product quality:
products products products products products products products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact | HC_docu... | quality events...                 daily/often; important to check     [?] 		*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?		 Symb
?		 Source
*		 Average ? Thresholds ? N_
data		 QC1
parameter		 Data
downloads		 Remarks
method value unit method value
1 •QC1DB MEDIAN -0.527 ADU VAL-2.5,2.5 80 qc_masterdark_mean this | last_yr | all Clean mean of master dark level
2 •QC1DB MEDIAN 3.8 ADU 10%± 0.38 80 qc_masterdark_stdev this | last_yr | all Clean standard deviation of master dark
3 •QC1DB MEDIAN 3.65 ADU 15%± 0.547 80 qc_darkfpn this | last_yr | all fixed pattern noise
4 •QC1DB MEDIAN 1.27e+03 number 15%± 190 80 qc_dark_nbadpix this | last_yr | all number of bad pixels
5 •QC1DB MEDIAN 3.27e+04 ADU 5%± 1.64e+03 80 qc_dark_n_nan this | last_yr | all number of pixels "nan" in the master dark
6 •QC1DB MEDIAN 0.000302 number VAL0.00025,0.00035 80 qc_dark_bpixfrac this | last_yr | all fraction of bad pixels in the master dark
*Data sources: QC1DB: QC1 database; LOCAL: local data source

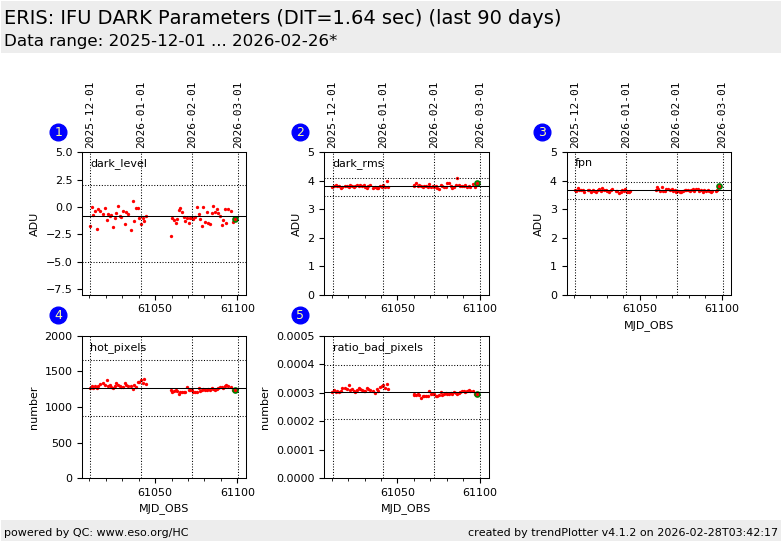

Plot 1
scores: 8|
data source:eris_ifu_dark
(QC1 database)
dataset:qc_masterdark_mean•
median:-0.527ADU
fixed thresholds:-2.5...2.5ADU
N_data plotted:80
[click plot for closeup]
Plot 2
scores: 8|
data source:eris_ifu_dark
(QC1 database)
dataset:qc_masterdark_stdev•
median:3.8ADU
rel. thresholds: ±10%3.4181046...4.1776834ADU
N_data plotted:80
[click plot for closeup]
Plot 3
scores: 8|
data source:eris_ifu_dark
(QC1 database)
dataset:qc_darkfpn•
median:3.65ADU
rel. thresholds: ±15%3.100849725...4.195267275ADU
N_data plotted:80
[click plot for closeup]
Plot 4
scores: not implemented
data source:eris_ifu_dark
(QC1 database)
dataset:qc_dark_nbadpix•
median:1.27e+03number
rel. thresholds: ±15%1076.525...1456.475number
N_data plotted:80
[click plot for closeup]
Plot 5
scores: not implemented
data source:eris_ifu_dark
(QC1 database)
dataset:qc_dark_n_nan•
median:3.27e+04ADU
rel. thresholds: ±5%31080.2...34351.8ADU
N_data plotted:80
[click plot for closeup]
Plot 6
scores: 8|
data source:eris_ifu_dark
(QC1 database)
dataset:qc_dark_bpixfrac•
median:0.000302number
fixed thresholds:0.00025...0.00035number
N_data plotted:80
[click plot for closeup]
This plot

The main qc parameters are plotted for the mostly used DITs

General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
  • you can download the data for each parameter set if the 'Data downloads' link shows up
