OMEGACAM trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-10-08T10:00:13 (UT)
  | now: 2024-10-08T11:48:46 (UT) muc06 QC pipeline: omega-1.1.9 (installed 2024-07-29)
same group: BIAS_level BIAS_readnoise RON_select BIAS_select BIAS_hotpixels
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
OMEGACAM news:
Report news:
DATE*: [?] 2024-10-01
report | NLT
2024-10-02
report | NLT
2024-10-03
report | NLT
2024-10-04
report | NLT
2024-10-05
report | NLT
2024-10-06
report | NLT
2024-10-07
report | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw raw
P...
CAL product quality:
products products products products products products products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact | HC_docu... | quality events...               [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
    These plots monitor the mean level of the two raw bias frames that make up the read-noise template. The intent is to monitor OmegaCAM's troublesome detector ESO_CCD_#82 (red points) whose offset can fluctuate strongly, particularly following periods when the instrument has been idle.
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 245 ADU VAL230.,300. 123 qc_raw_bias1_mean this | last_yr | all mean level of first raw bias for detector ESO_CCD_#82 (ADU). HC scores only apply to this detector.
1 QC1DB none   ADU none  123 qc_raw_bias1_mean this | last_yr | all mean level of first raw bias for the stable detector ESO_CCD_#81 (ADU)
1 QC1DB none   ADU none  123 qc_raw_bias1_mean this | last_yr | all mean level of first raw bias for the stable detector ESO_CCD_#83 (ADU)
2 QC1DB MEDIAN 245 ADU VAL230.,300. 123 qc_raw_bias2_mean this | last_yr | all mean level of second raw bias for detector ESO_CCD_#82 (ADU). HC scores only apply to this detector.
2 QC1DB none   ADU none  123 qc_raw_bias2_mean this | last_yr | all mean level of second raw bias for the stable detector ESO_CCD_#81 (ADU)
2 QC1DB none   ADU none  123 qc_raw_bias2_mean this | last_yr | all mean level of second raw bias for the stable detector ESO_CCD_#83 (ADU)
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: 15|
data source:omegacam_readnoise
(QC1 database)
dataset:
(numbers below apply to this dataset)
qc_raw_bias1_mean
median:245ADU
fixed thresholds:230.0...300.0ADU
N_data plotted:123
[click plot for closeup]
Plot 2
scores: 15|
data source:omegacam_readnoise
(QC1 database)
dataset:
(numbers below apply to this dataset)
qc_raw_bias2_mean
median:245ADU
fixed thresholds:230.0...300.0ADU
N_data plotted:123
[click plot for closeup]
This plot

Trending plots for the bias read-out noise. The intent is to monitor OmegaCAM's troublesome detector ESO_CCD_#82 whose offset can fluctuate strongly, particularly following periods when the instrument has been idle.

For comparison, the stable detectors ESO_CCD_#81 and ESO_CCD_#83 are plotted for reference.

DB Name: omegacam_readnoise
Fits header: QC.BIAS1.RAWREADNOISE
QC1 DB: qc_raw_bias1_mean / qc_raw_bias2_mean

Description:
The level of the two raw bias frames is measured

Setup:
BIN.X / BIN.Y / READ.MODE / READ.SPEED = 1/1/normal/normal

These Health Check plots describe:

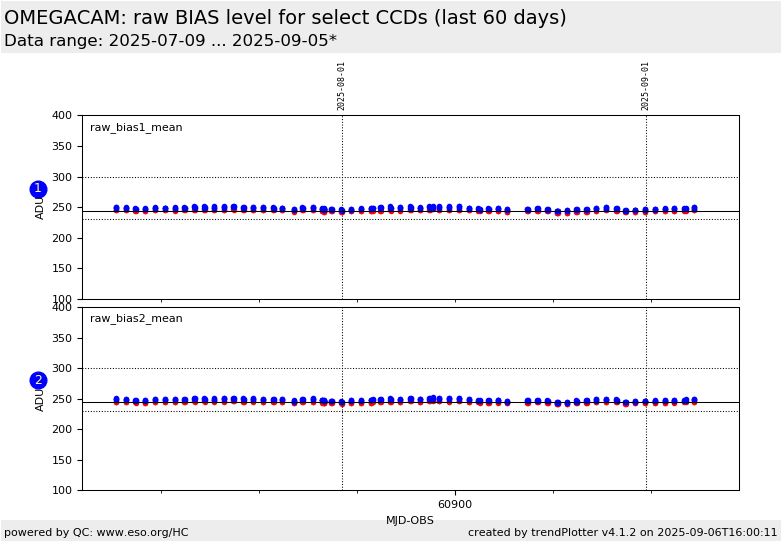

Fig. 1 raw_bias1_mean: The mean level of the first raw bias frame is plotted for detectors #82, #81, and #83 (in ADU).
Fig. 2 raw_bias2_mean: The mean level of the second raw bias frame is plotted for detectors #82, #81, and #83 (in ADU).


OmegaCAM detector plane layout (detector_ID locations):
OmegaCAM detector layout


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
