OMEGACAM trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-10-05T16:06:22 (UT)
  | now: 2024-10-06T07:22:35 (UT) muc06 QC pipeline: omega-1.1.9 (installed 2024-07-29)
same group: ellip_uSDSS ellip_gSDSS ellip_rSDSS ellip_iSDSS ellip_zSDSS
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
OMEGACAM news:
Report news:
DATE*: [?] 2024-09-29
report | NLT
2024-09-30
report | NLT
2024-10-01
report | NLT
2024-10-02
report | NLT
2024-10-03
report | NLT
2024-10-04
report | NLT
2024-10-05
report | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw no CAL raw files
P...
CAL product quality:
products products products products products products no CAL products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact | HC_docu... | quality events...                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 0.0419 none VAL0.0,0.3 146 qc_std_ellipticity this | last_yr | all r_SDSS stellar ellipticity (1 - b/a) averaged over all 32 detectors
2 QC1DB MEDIAN 0.0134 none VAL0.0,0.3 146 qc_std_ellipticity this | last_yr | all r_SDSS standard deviation of the stellar ellipticity
3 QC1DB MEDIAN 0.0431 none none  4132 qc_std_ellipticity this | last_yr | all r_SDSS stellar ellipticity (1 - b/a) for each individual detector
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: 12|
data source:omegacam_std
(QC1 database)
dataset:qc_std_ellipticity
median:0.0419none
fixed thresholds:0.0...0.3none
N_data plotted:146
[click plot for closeup]
Plot 2
scores: 12|
data source:omegacam_std
(QC1 database)
dataset:qc_std_ellipticity
median:0.0134none
fixed thresholds:0.0...0.3none
N_data plotted:146
[click plot for closeup]
Plot 3
scores: not implemented
data source:omegacam_std
(QC1 database)
dataset:qc_std_ellipticity
median:0.0431none
thresholds:none
N_data plotted:4132
[click plot for closeup]

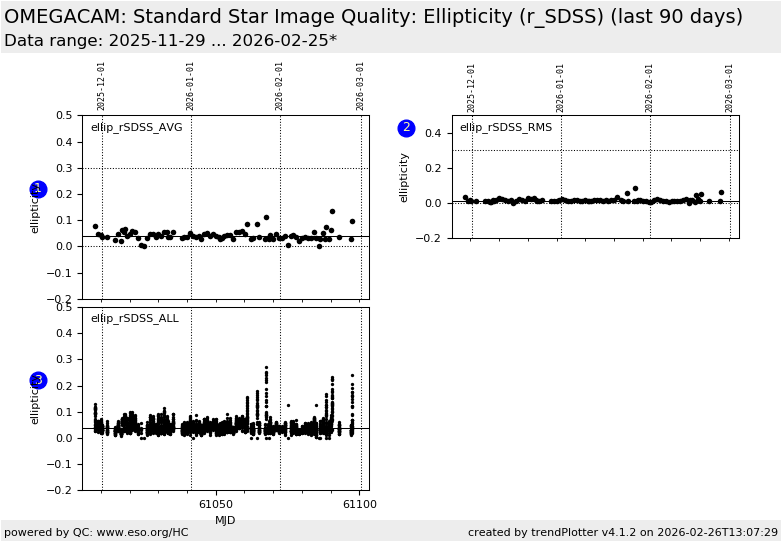

This plot

Trending plots for standard star image quality (Ellipticity): r_SDSS .

QC parameters are derived from each of 32 detectors of OmegaCAM STD,ZEROPOINT frames.

DB Name: omegacam_std
Fits header: QC.STD.ELLIPTICITY
QC1 DB: qc_std_ellipticity

Description:
The ellipticity (1 - b/a) is measured only for source identified as stellar (CLASS_STAR >= 0.90 from the SExtractor detection) and is contained in the pipeline product frame ZEROPOINTS

Setup:
BIN.X / BIN.Y / READ.MODE / READ.SPEED = 1/1/normal/normal

These Health Check plots describe:
Fig. 1 ellip_rSDSS_AVG: The r_SDSS stellar ellipticities (1-b/a) averaged over all 32 detectors. This plot is sensitive to any changes common to all detectors.
Fig. 2 ellip_rSDSS_ALL: The r_SDSS stellar ellipticities (1-b/a) for each individual detector. This plot is sensitive changes in individual detectors.
Fig. 3 ellip_rSDSS_RMS: The rms of the r_SDSS stellar ellipticities averaged over all 32 detectors.


OmegaCAM detector plane layout (detector_ID locations):
OmegaCAM detector layout


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
