OMEGACAM trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2023-12-04T16:05:23 (UT)
  | now: 2023-12-04T16:52:47 (UT) muc06 QC pipeline: omega-1.1.8 (installed 2023-06-22)
same group: FWHM_uSDSS FWHM_gSDSS FWHM_rSDSS FWHM_iSDSS FWHM_zSDSS
General news: NOTE: The Health Check and calChecker services will be moved to qcFlow in the course of 2023 on an instrument by instrument basis. The current pages will then not be updated any longer.
OMEGACAM news:
Report news:
DATE*: [?] 2023-11-27
report | NLT
2023-11-28
report | NLT
2023-11-29
report | NLT
2023-11-30
report | NLT
2023-12-01
report | NLT
2023-12-02
report | NLT
2023-12-03
report | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw raw
P...
CAL product quality:
products products products products products products products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact | HC_docu... | quality events...                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB none   arcsec none  3139 qc_std_seeing this | last_yr | all OmegaCAM STD FWHM vs. corrected DIMM seeing (arcsec) for each individual detector with line of equivalence plotted [z_SDSS].
This data set is not scored.
2 QC1DB MEDIAN 0.0454 arcsec VAL-2000.0,50. 3139 qc_delta_fwhm this | last_yr | all delta FWHM = (OmegaCAM STD FWHM - corrected DIMM seeing) (arcsec) [z_SDSS] for each individual detector.
This data set is not scored.
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: not implemented
data source:omegacam_std
(QC1 database)
dataset:qc_std_seeing
average:none
thresholds:none
N_data plotted:3139
[click plot for closeup]
Plot 2
scores: not implemented
data source:omegacam_std
(QC1 database)
dataset:qc_delta_fwhm
median:0.0454arcsec
fixed thresholds:-2000.0...50.0arcsec
N_data plotted:3139
[click plot for closeup]
This plot

Trending plots for the standard star image quality (FWHM) vs. the seeing as measured by the DIMM site-monitor.
z_SDSS filter.

QC parameters are derived from each of 32 detectors of OmegaCAM STD,ZEROPOINT frames.

DB Name: omegacam_std
Fits header: QC.AMBI.SEEING, QC.STD.SEEING
QC1 DB: qc_ambi_seeing, qc_std_seeing, qc_delta_fwhm

Description:
The FWHM (arcsec) is measured only for sources identified as stellar (CLASS_STAR >= 0.90 from the SExtractor detection)
and are contained in the pipeline product frame ZEROPOINTS.
The DIMM seeing has been adjusted to the wavelength and airmass of the standard star observation.

Setup:
BIN.X / BIN.Y / READ.MODE / READ.SPEED / INS.FILT1.NAME = 1/1/normal/normal/z_SDSS

These Health Check plots describe:

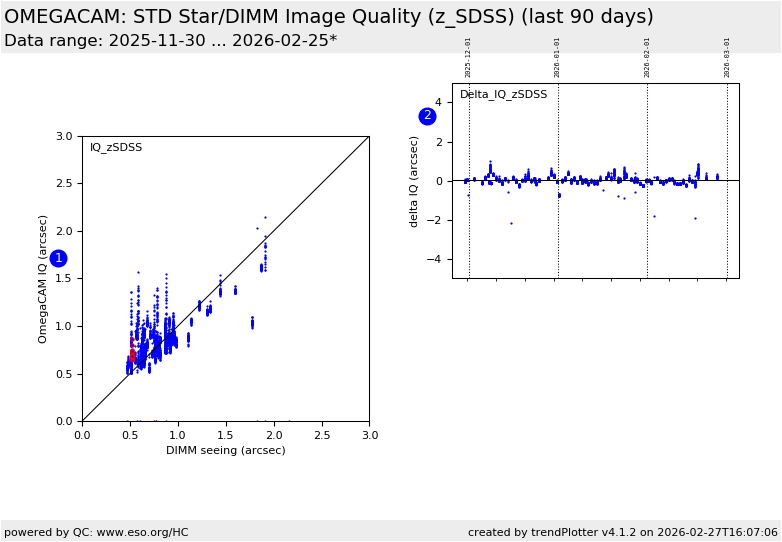

Fig. 1 IQ_zSDSS: A one-to-one comparison of the image quality achieved by OmegaCAM and the seeing as measured by the DIMM. The plot shows the FWHM of the stars matched from the secondary standard catalogue and the corrected DIMM values at the moment of observation plotted against one another (in arcsec). The values for each of the 32 detectors is shown.
#The most recent data points are marked in magenta.

Fig. 2 Delta_IQ_zSDSS: shows Delta_IQ = OmegaCAM standard star FWHM - DIMM seeing for all 32 detectors.
This parameter is scored.

Fig. 3 score_outliers: Scores of the z_SDSS Delta_IQ_zSDSS values as measured for each of the 32 detectors.
Green = within the defined thresholds.
Red = beyond the defined thresholds.


OmegaCAM detector plane layout (detector_ID locations):
OmegaCAM detector layout


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
