SINFONI trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2019-06-28T05:03:05 (UT)
  | now: 2024-03-03T23:39:26 (UT) muc04 QC pipeline: sinfo-3.2.5 (installed 2019-05-09)
same group: slit_dist_ALL slit_dist_JHK distortion_shift   distortion_coef00 coef01 coef10 coef11 coef20 coef02 coef21
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
SINFONI news: 2019-06-26: SINFONI taken out of operations
Report news:
DATE*: [?] 2019-06-24
report | NLT
2019-06-25
report | NLT
2019-06-26
no data | NLT
2019-06-27
no data | NLT
2019-06-28
no data | NLT
2019-06-29
no data | NLT
2019-06-30
no data | NLT
r...
Raw CAL displays:
raw raw no CAL raw files no CAL raw files no CAL raw files no CAL raw files no CAL raw files
P...
CAL product quality:
products products no CAL products no CAL products no CAL products no CAL products no CAL products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact | HC_docu...               [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 64 pixels VAL63.9,64.1 91 qc_sl_distavg this | last_yr | all average of 32 slitlet distances in the J, H, K and H+K bands (only for the 25 mas camera scale)
2 QC1DB MEDIAN 0.501 pixels VAL0.2,1.02 91 qc_sl_distrms this | last_yr | all scatter in slitlet distances in the J, H, K and H+K bands (only for the 25 mas camera scale)
*Data sources: QC1DB: QC1 database; LOCAL: local data source

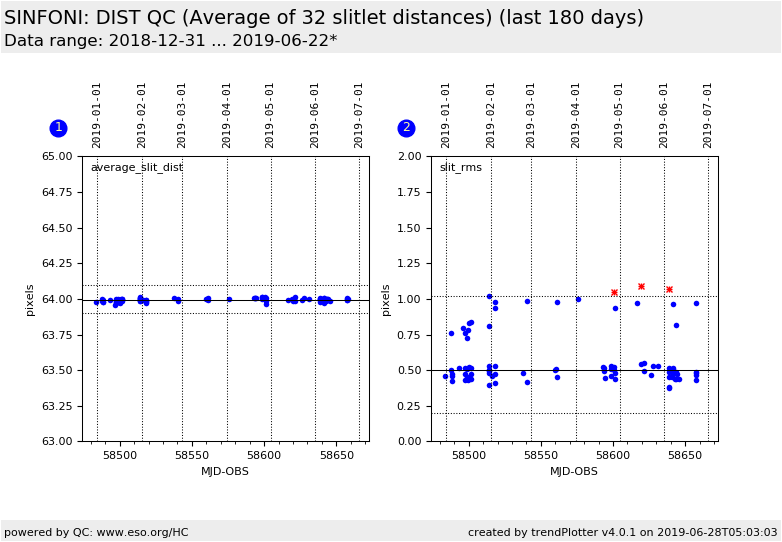

Plot 1
scores: 5|
data source:sinfoni_dist
(QC1 database)
dataset:qc_sl_distavg
median:64pixels
fixed thresholds:63.9...64.1pixels
N_data plotted:91
[click plot for closeup]
Plot 2
scores: not implemented
data source:sinfoni_dist
(QC1 database)
dataset:qc_sl_distrms
median:0.501pixels
fixed thresholds:0.2...1.02pixels
N_data plotted:91
[click plot for closeup]
This plot

These are the trending plots for the SINFONI QC parameters derived from DISTORTION frames.

Distortion frames are obtained for the J, H, K, and H+K bandpasses, but only for the 250 mas camera.




General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
