VISIR trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-04-22T02:01:47 (UT)
  | now: 2024-04-22T07:54:38 (UT) muc03 QC pipeline: visir-4.4.3 (installed 2023-04-27)
same group: N_band Q_band
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
VISIR news:
Report news:
DATE*: [?] 2024-04-15
report | NLT
2024-04-16
report | NLT
2024-04-17
report | NLT
2024-04-18
report | NLT
2024-04-19
report | NLT
2024-04-20
report | NLT
2024-04-21
report | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw raw
P...
CAL product quality:
products products products products products products products

transfer   ngas [?]

scores&comments | history ... | plot tutorial ... | contact | HC_docu... | quality events...                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 7.68e+04 ADU/Jy none  41 conver this | last_yr | all conversion factor with PAH1 filter, pfov=0.0453
2 QC1DB MEDIAN 6.02e+04 ADU/Jy none  29 conver this | last_yr | all conversion factor with PAH2_2 filter, pfov=0.0453
3 QC1DB MEDIAN 2.27e+04 ADU/Jy none  2 conver this | last_yr | all conversion factor with ArIII filter, pfov=0.0453
4 QC1DB MEDIAN 1.45e+05 ADU/Jy none  1 conver this | last_yr | all conversion factor with J8.9 filter, pfov=0.0453
5 QC1DB MEDIAN 2.06e+05 ADU/Jy none  25 conver this | last_yr | all conversion factor with B10.7 filter, pfov=0.0453
6 QC1DB MEDIAN 1.7e+04 ADU/Jy none  26 conver this | last_yr | all conversion factor with NeII filter, pfov=0.0453
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: not implemented
data source:visir_zp_img
(QC1 database)
dataset:conver
median:7.68e+04ADU/Jy
thresholds:none
N_data plotted:41
[click plot for closeup]
Plot 2
scores: not implemented
data source:visir_zp_img
(QC1 database)
dataset:conver
median:6.02e+04ADU/Jy
thresholds:none
N_data plotted:29
[click plot for closeup]
Plot 3
scores: not implemented
data source:visir_zp_img
(QC1 database)
dataset:conver
median:2.27e+04ADU/Jy
thresholds:none
N_data plotted:2
[click plot for closeup]
Plot 4
scores: not implemented
data source:visir_zp_img
(QC1 database)
dataset:conver
median:1.45e+05ADU/Jy
thresholds:none
N_data plotted:1
[click plot for closeup]
Plot 5
scores: not implemented
data source:visir_zp_img
(QC1 database)
dataset:conver
median:2.06e+05ADU/Jy
thresholds:none
N_data plotted:25
[click plot for closeup]
Plot 6
scores: not implemented
data source:visir_zp_img
(QC1 database)
dataset:conver
median:1.7e+04ADU/Jy
thresholds:none
N_data plotted:26
[click plot for closeup]
This plot

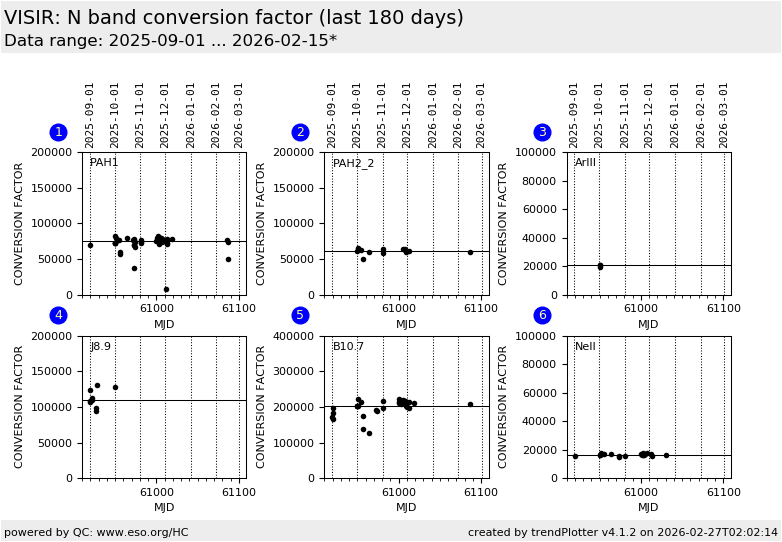

Measurements of the conversion factor from imaging standard star observations. Several N band filters are shown. Note that starting with P95 only small-field (SF) observations with 0.0453 arcsec/pixel are offered.

The conversion factor describes the conversion between ADU and Jy. It is computed as: F(tot.observed) / F(model) [ADU/Jy], where F corresponds to flux and F(model) is the model predicted flux of the standard star from a catalog.


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
