1 QC1DB MEDIAN 2.72e+05 ADU/Jy none  44 conver this | last_yr | all conversion factor for the SF, pfov=0.075
2 QC1DB MEDIAN 2.92e+04 ADU/Jy none  39 conver this | last_yr | all conversion factor for the IF, pfov=0.127
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: not implemented
data source:visir_zp_img
(QC1 database)
dataset:conver
median:2.72e+05ADU/Jy
thresholds:none
N_data plotted:44
[click on plot for closeup]
Plot 2
scores: not implemented
data source:visir_zp_img
(QC1 database)
dataset:conver
median:2.92e+04ADU/Jy
thresholds:none
N_data plotted:39
[click on plot for closeup]
This plot

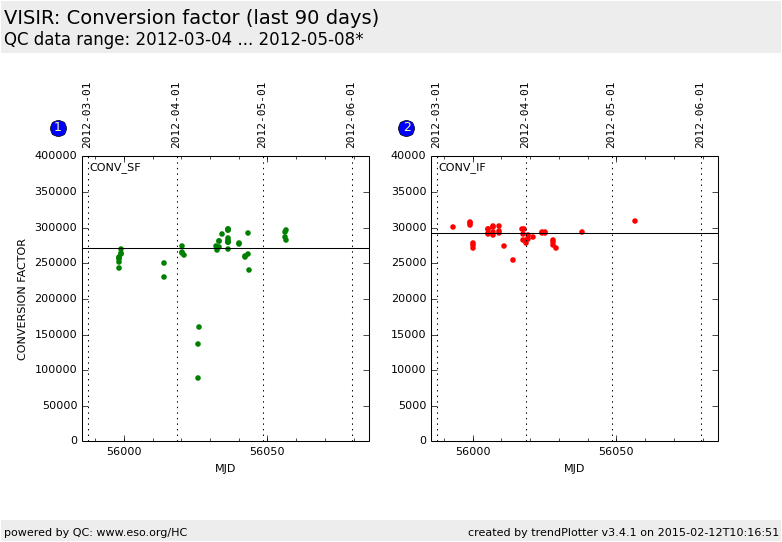

Historical values of the conversion factor from imaging standard star observations using the pre-upgrade detector. Only data taken with the PAH1 filter are selected. The plot is separated into small-field (SF) pixel field of view (0.075 arcsec/pixel) and intermediate-field (IF) pixel field of view (0.127 arcsec/pixel).

The conversion factor describes the conversion between ADU and Jy. It is computed as: F(tot.observed) / F(model) [ADU/Jy], where F corresponds to flux and F(model) is the model predicted flux of the standard star from a catalog.


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
