#include <smAdapter.hpp>

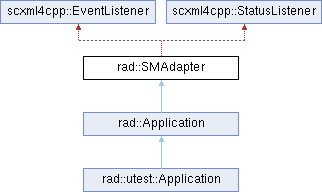

Inheritance diagram for rad::SMAdapter:

Public Member Functions
	SMAdapter (boost::asio::io_context &ios, scxml4cpp::Context *context, scxml4cpp::EventQueue &external_events)

virtual	~SMAdapter ()

void	Load (const std::string &filename, std::list< scxml4cpp::Action * > action_list, std::list< scxml4cpp::Activity > *activity_list, const scxml4cpp::ReplaceRules &replace_rules=scxml4cpp::ReplaceRules())

void	LoadFromString (const std::string &name, const std::string &model, std::list< scxml4cpp::Action * > action_list, std::list< scxml4cpp::Activity > *activity_list, const scxml4cpp::ReplaceRules &replace_rules=scxml4cpp::ReplaceRules())

void	Append (const std::string &filename, std::list< scxml4cpp::Action * > action_list, std::list< scxml4cpp::Activity > *activity_list, const scxml4cpp::ReplaceRules &replace_rules=scxml4cpp::ReplaceRules())

void	AppendFromString (const std::string &name, const std::string &model, std::list< scxml4cpp::Action * > action_list, std::list< scxml4cpp::Activity > *activity_list, const scxml4cpp::ReplaceRules &replace_rules=scxml4cpp::ReplaceRules())

void	Save (const std::string &filename)

std::string	GetStateMachineAsString ()

void	Start ()

void	Stop ()

void	PostEvent (SharedEvent e)

void	ProcessEvent ()

void	ProcessEvent (scxml4cpp::Event *e)

void	ProcessEvent (const AnyEvent &e)

void	SetStatusRepresentation (const bool use_fully_qualified_state)

std::string	GetStatus () const

std::list< scxml4cpp::State * >	GetActiveStates ()

void	AddStatusListener (scxml4cpp::StatusListener *listener)

void	RemoveStatusListener (scxml4cpp::StatusListener *listener)

void	AddEventListener (scxml4cpp::EventListener *listener)

void	RemoveEventListener (scxml4cpp::EventListener *listener)

void	SetStatusPublisher (std::function< void(const std::string &)> publisher)

void	PublishStatus ()

void	RegisterRejectHandler (const std::string &id, std::function< void(const rad::AnyEvent &, const std::string &state)> handler)

template<typename T >
void	RegisterDefaultRequestRejectHandler ()

void	SetLogLevel (const std::string &level)

	SMAdapter (const SMAdapter &e)=delete

SMAdapter &	operator= (SMAdapter &e)=delete

Detailed Description

This is the adapter to the SCXML engine.

Todo: replace raw pointers with smart pointers.

Constructor & Destructor Documentation

◆ SMAdapter() [1/2]

rad::SMAdapter::SMAdapter	(	boost::asio::io_context &	ios,
		scxml4cpp::Context *	context,
		scxml4cpp::EventQueue &	external_events )

Constructor.

Parameters

[in]	ios	Event loop.
[in]	context	SCXML context.
[in]	external_events	SCXML external event queue.

◆ ~SMAdapter()

rad::SMAdapter::~SMAdapter ( )

virtual

Destructor that deletes the SCXML interpreter and cleanup the SCXML model.

◆ SMAdapter() [2/2]

rad::SMAdapter::SMAdapter ( const SMAdapter & e )

delete

Member Function Documentation

◆ AddEventListener()

void rad::SMAdapter::AddEventListener ( scxml4cpp::EventListener * listener )

Register a listener for the event processed notification.

Parameters

[in] listener Listener to be registered. Note that the listener should be noexcept.

◆ AddStatusListener()

void rad::SMAdapter::AddStatusListener ( scxml4cpp::StatusListener * listener )

Register a listener for a change of SM state notification. The listener is notified every time a new state is entered. If you need to retrieve the state after an event has been processed you should use the Event listener together with the GetStatus method ((

See also: AddEventListener, GetStatus).

Parameters

[in] listener Listener to be registered. Note that the listener should be noexcept.

◆ Append()

void rad::SMAdapter::Append	(	const std::string &	filename,
		std::list< scxml4cpp::Action * > *	action_list,
		std::list< scxml4cpp::Activity * > *	activity_list,
		const scxml4cpp::ReplaceRules &	replace_rules = scxml4cpp::ReplaceRules() )

Append to a loaded SCXML model an extension via the scxml4cpp::Merger class. If the appended model is valid, it creates the interpreter to execute the model. If the appended model is invalid it keeps the previous model and executor. In case of invalid model, a rad::Exception exception is thrown.

Parameters

[in]	filename	SCXML model to load.
[in]	action_list	List of actions mapped to SCXML model. Note that the actions should be noexcept.
[in]	activity_list	List of activities mapped to SCXML model.
[in]	replace_rules	Optional parameter to replace SCXML identifiers while parsing.

◆ AppendFromString()

void rad::SMAdapter::AppendFromString	(	const std::string &	name,
		const std::string &	model,
		std::list< scxml4cpp::Action * > *	action_list,
		std::list< scxml4cpp::Activity * > *	activity_list,
		const scxml4cpp::ReplaceRules &	replace_rules = scxml4cpp::ReplaceRules() )

Append to a loaded SCXML model an extension via the scxml4cpp::Merger class. If the appended model is valid, it creates the interpreter to execute the model. If the appended model is invalid it keeps the previous model and executor. In case of invalid model, a rad::Exception exception is thrown.

Parameters

[in]	name	Name given to the SCXML model (used in debug/error messages).
[in]	model	SCXML model to parse.
[in]	action_list	List of actions mapped to SCXML model. Note that the actions should be noexcept.
[in]	activity_list	List of activities mapped to SCXML model.
[in]	replace_rules	Optional parameter to replace SCXML identifiers while parsing.

◆ GetActiveStates()

std::list< scxml4cpp::State * > rad::SMAdapter::GetActiveStates ( )

Returns: the current active SM state configuration returned by the SCXML engine.

◆ GetStateMachineAsString()

std::string rad::SMAdapter::GetStateMachineAsString ( )

Returns: a textual representation of the SCXML model.

◆ GetStatus()

std::string rad::SMAdapter::GetStatus ( ) const

Returns: the current SM state configuration as a formatted string containing the information provided by the "Status" notification.

See also: AddStatusListener.

◆ Load()

void rad::SMAdapter::Load	(	const std::string &	filename,
		std::list< scxml4cpp::Action * > *	action_list,
		std::list< scxml4cpp::Activity * > *	activity_list,
		const scxml4cpp::ReplaceRules &	replace_rules = scxml4cpp::ReplaceRules() )

Load an SCXML model from file. If the loaded model is valid, it creates the interpreter to execute the model. If the model is invalid it keeps the previous model and executor. In case of invalid model, a rad::Exception exception is thrown.

Parameters

[in]	filename	SCXML model to load.
[in]	action_list	List of actions mapped to SCXML model. Note that the actions should be noexcept.
[in]	activity_list	List of activities mapped to SCXML model.
[in]	replace_rules	Optional parameter to replace SCXML identifiers while parsing.

◆ LoadFromString()

void rad::SMAdapter::LoadFromString	(	const std::string &	name,
		const std::string &	model,
		std::list< scxml4cpp::Action * > *	action_list,
		std::list< scxml4cpp::Activity * > *	activity_list,
		const scxml4cpp::ReplaceRules &	replace_rules = scxml4cpp::ReplaceRules() )

Load an SCXML model from string. If the loaded model is valid, it creates the interpreter to execute the model. If the model is invalid it keeps the previous model and executor. In case of invalid model, a rad::Exception exception is thrown.

Parameters

[in]	name	Name given to the SCXML model (used in debug/error messages).
[in]	model	SCXML model to parse.
[in]	action_list	List of actions mapped to SCXML model. Note that the actions should be noexcept.
[in]	activity_list	List of activities mapped to SCXML model.
[in]	replace_rules	Optional parameter to replace SCXML identifiers while parsing.

◆ operator=()

SMAdapter & rad::SMAdapter::operator= ( SMAdapter & e )

delete

◆ PostEvent()

void rad::SMAdapter::PostEvent ( SharedEvent e )

Post asynchronously an event to be processed by the SM.

It uses the boost ASIO post function which allows to add a given lambda to boost ASIO execution queue. The lambda, when executed, calls SMAdapter::ProcessEvent(const AnyEvent& e) method.

This function can be used also by threads to trigger the processing of the events.

Note: this method can be invoked also by passing UniqueEvent as argument since C++ will upgrade it SharedEvent automatically.

Parameters

[in] e Shared RAD event to post.

◆ ProcessEvent() [1/3]

void rad::SMAdapter::ProcessEvent ( )

Trigger the processing of the events inserted in the SM external event queue.

◆ ProcessEvent() [2/3]

void rad::SMAdapter::ProcessEvent ( const AnyEvent & e )

Method invoked to trigger the processing of an event by the SM.

Parameters

[in] e RAD event to be processed by the SM

◆ ProcessEvent() [3/3]

void rad::SMAdapter::ProcessEvent ( scxml4cpp::Event * e )

Trigger the processing of the given event by the SM. The processing terminates when the SM external event queue is empty.

Parameters

[in] e SCXML event to be processed.

◆ PublishStatus()

void rad::SMAdapter::PublishStatus ( )

This method invokes the configured SM state publisher (

See also: SetStatusPublisher).

◆ RegisterDefaultRequestRejectHandler()

template<typename T >

void rad::SMAdapter::RegisterDefaultRequestRejectHandler ( )

inline

Method to register the reject handler implemented via the free function rad::DefaultRequestRejectHandler() (see above) to be used to reject event associated to requests.

TODO find out why the logging doesn't work in templated inline methods!

◆ RegisterRejectHandler()

void rad::SMAdapter::RegisterRejectHandler	(	const std::string &	id,
		std::function< void(const rad::AnyEvent &, const std::string &state)>	handler )

Method to register a handler that can be used to reject an event.

Parameters

id	Event identifier to be rejected.
handler	Function implementing the rejection handler. Note that the handler should be noexcept.

◆ RemoveEventListener()

void rad::SMAdapter::RemoveEventListener ( scxml4cpp::EventListener * listener )

Deregister a listener for the event processed notification.

Parameters

[in] listener Listener to be deregistered.

◆ RemoveStatusListener()

void rad::SMAdapter::RemoveStatusListener ( scxml4cpp::StatusListener * listener )

Deregister a listener for a change of SM state notification.

Parameters

[in] listener Listener to be deregistered.

◆ Save()

void rad::SMAdapter::Save ( const std::string & filename )

Save the state machine model to file.

Parameters

[in] filename Name of the file used to save the model.

◆ SetLogLevel()

void rad::SMAdapter::SetLogLevel ( const std::string & level )

Sets the log level of the SCXML engine.

Parameters

[in] level The desired log level: TRACE, DEBUG, INFO, WARN, ERROR.

◆ SetStatusPublisher()

void rad::SMAdapter::SetStatusPublisher ( std::function< void(const std::string &)> publisher )

Configure a function to be used as publisher for the SM information.

Parameters

publisher Callback function used to publish the current SM state. Note that the callback should be noexcept.

◆ SetStatusRepresentation()

void rad::SMAdapter::SetStatusRepresentation ( const bool use_fully_qualified_state )

Set a flag indicating whether states ID are fully qualified (i.e. include parent states) or not.

Parameters

use_fully_qualified_state If true, the string returned by GetStatus will include, for each active state, the parent states. If false, it will include only the name of the leaf state.

◆ Start()

void rad::SMAdapter::Start ( )

Starts the SM model interpretation.

◆ Stop()

void rad::SMAdapter::Stop ( )

Stops the SM model interpretation.

The documentation for this class was generated from the following files:

rad/cpp/sm/src/include/rad/smAdapter.hpp
rad/cpp/sm/src/smAdapter.cpp
