#include <runnableStateMachineLogic.hpp>

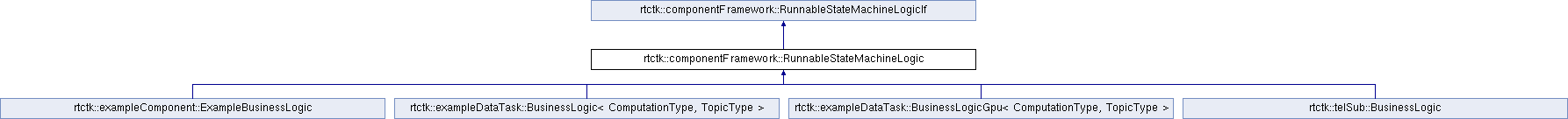

Inheritance diagram for rtctk::componentFramework::RunnableStateMachineLogic:

Public Member Functions
	RunnableStateMachineLogic (std::string const &name, ServiceContainer &services)

virtual	~RunnableStateMachineLogic ()=default

void	Starting (StopToken st) override

void	Recovering (StopToken st) override

void	Initialising (StopToken st) override

void	Enabling (StopToken st) override

void	Disabling (StopToken st) override

void	GoingRunning (StopToken st) override

void	GoingIdle (StopToken st) override

void	Running (StopToken st) override

void	Updating (StopToken st, Payload args) override

bool	IsUpdatingAllowed (Payload args) override

Public Member Functions inherited from rtctk::componentFramework::RunnableStateMachineLogicIf
virtual	~RunnableStateMachineLogicIf ()=default

Protected Attributes
const std::string &	m_name

ServiceContainer &	m_services

Detailed Description

Class that provides empty implementations for the life-cycle methods and means of injecting services via the constructor.

This class was created for convenience, by deriving from it users only need to override the methods they really need.

The objects passed via the constructor contain the component instance name and a ServiceContainer that hosts and provides useful services.

Constructor & Destructor Documentation

◆ RunnableStateMachineLogic()

rtctk::componentFramework::RunnableStateMachineLogic::RunnableStateMachineLogic	(	std::string const &	name,
		ServiceContainer &	services
	)

inline

◆ ~RunnableStateMachineLogic()

virtual rtctk::componentFramework::RunnableStateMachineLogic::~RunnableStateMachineLogic ( )

virtualdefault

Member Function Documentation

◆ Disabling()

void rtctk::componentFramework::RunnableStateMachineLogic::Disabling ( StopToken st )

inlineoverridevirtual

Activity On::Operational::Disabling

Activity method to to back to NotOperational, e.g. stop threads, etc.

Parameters

st	StopToken, to get notified when the activity is supposed to terminate

Implements rtctk::componentFramework::RunnableStateMachineLogicIf.

Reimplemented in rtctk::telSub::BusinessLogic.

◆ Enabling()

void rtctk::componentFramework::RunnableStateMachineLogic::Enabling ( StopToken st )

inlineoverridevirtual

Activity On::NotOperational::Enabling

Activity method to prepare the component for operation, e.g. start threads, etc.

Parameters

st	StopToken, to get notified when the activity is supposed to terminate

Implements rtctk::componentFramework::RunnableStateMachineLogicIf.

Reimplemented in rtctk::telSub::BusinessLogic.

◆ GoingIdle()

void rtctk::componentFramework::RunnableStateMachineLogic::GoingIdle ( StopToken st )

inlineoverridevirtual

Activity On::Operational::GoingIdle

Activity method to leave state running, e.g. turn off receivers, etc.

Parameters

st	StopToken, to get notified when the activity is supposed to terminate

Implements rtctk::componentFramework::RunnableStateMachineLogicIf.

Reimplemented in rtctk::telSub::BusinessLogic.

◆ GoingRunning()

void rtctk::componentFramework::RunnableStateMachineLogic::GoingRunning ( StopToken st )

inlineoverridevirtual

Activity On::Operational::GoingRunning

Activity method to prepare to run, e.g. start receiving data, etc.

Parameters

st	StopToken, to get notified when the activity is supposed to terminate

Implements rtctk::componentFramework::RunnableStateMachineLogicIf.

Reimplemented in rtctk::telSub::BusinessLogic.

◆ Initialising()

void rtctk::componentFramework::RunnableStateMachineLogic::Initialising ( StopToken st )

inlineoverridevirtual

Activity On::NotOperational::Initialising

Activity method to initialise the component, e.g. construct members, etc.

Parameters

st	StopToken, to get notified when the activity is supposed to terminate

Implements rtctk::componentFramework::RunnableStateMachineLogicIf.

Reimplemented in rtctk::telSub::BusinessLogic.

◆ IsUpdatingAllowed()

bool rtctk::componentFramework::RunnableStateMachineLogic::IsUpdatingAllowed ( Payload args )

inlineoverridevirtual

Guard IsUpdatingAllowed

Guard method to further constrain whether an Update command is allowed to cause an Updating activity or not. Simply set the return value to configure as needed.

Parameters

args	Payload, to be able to receive information on what to update

Returns: false if update is dissalowed.; true, if update is allowed.

Implements rtctk::componentFramework::RunnableStateMachineLogicIf.

Reimplemented in rtctk::telSub::BusinessLogic.

◆ Recovering()

void rtctk::componentFramework::RunnableStateMachineLogic::Recovering ( StopToken st )

inlineoverridevirtual

Activity Operational::Recovering

Activity method to recover from error in On::Operational::Error, after successful recovery the state machine will transition to state On::Operational::Idle

Parameters

st	StopToken, to get notified when the activity is supposed to terminate

Implements rtctk::componentFramework::RunnableStateMachineLogicIf.

◆ Running()

void rtctk::componentFramework::RunnableStateMachineLogic::Running ( StopToken st )

inlineoverridevirtual

Activity On::Operational::Running

Activity method for state running, e.g. receive, compute, send

Parameters

st	StopToken, to get notified when the activity is supposed to terminate

Implements rtctk::componentFramework::RunnableStateMachineLogicIf.

Reimplemented in rtctk::telSub::BusinessLogic.

◆ Starting()

void rtctk::componentFramework::RunnableStateMachineLogic::Starting ( StopToken st )

inlineoverridevirtual

Activity On::NotOperational::Starting

Activity method to perfrom setup work after start and reset of component.

Parameters

st	StopToken, to get notified when the activity is supposed to terminate

Implements rtctk::componentFramework::RunnableStateMachineLogicIf.

Reimplemented in rtctk::telSub::BusinessLogic.

◆ Updating()

void rtctk::componentFramework::RunnableStateMachineLogic::Updating	(	StopToken	st,
		Payload	args
	)

inlineoverridevirtual

Activity Operational::Updating

Activity method to update dynamic component configuration. On default updates are only allowed ins states. On::Operational::Idle and On::Operational::Running.

Parameters

st	StopToken, to get notified when the activity is supposed to terminate
args	Payload, to be able to receive information on what to update

Implements rtctk::componentFramework::RunnableStateMachineLogicIf.

Reimplemented in rtctk::telSub::BusinessLogic.

Member Data Documentation

◆ m_name

const std::string& rtctk::componentFramework::RunnableStateMachineLogic::m_name

protected

◆ m_services

ServiceContainer& rtctk::componentFramework::RunnableStateMachineLogic::m_services

protected

The documentation for this class was generated from the following file:

componentFramework/stateMachine/runnableStateMachine/src/include/rtctk/componentFramework/runnableStateMachineLogic.hpp
