#include <businessLogic.hpp>

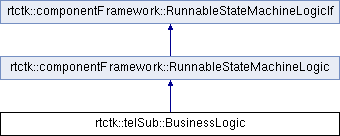

Inheritance diagram for rtctk::telSub::BusinessLogic:

Public Types
using	OperationalLogicFactory = std::function< std::unique_ptr< OperationalLogicIf >(OperationalLogicFactoryParams const &)>

Public Member Functions
	BusinessLogic (const std::string &name, componentFramework::ServiceContainer &services, OperationalLogicFactory factory)

void	Starting (componentFramework::StopToken st) override
	Deletes the operational logic if the object exists. More...

void	Initialising (componentFramework::StopToken st) override

void	Enabling (componentFramework::StopToken st) override

void	Disabling (componentFramework::StopToken st) override

void	GoingRunning (componentFramework::StopToken st) override

void	GoingIdle (componentFramework::StopToken st) override

void	Running (componentFramework::StopToken st) override


void	Updating (componentFramework::StopToken st, componentFramework::Payload args) override

bool	IsUpdatingAllowed (componentFramework::Payload args) override

Public Member Functions inherited from rtctk::componentFramework::RunnableStateMachineLogic
	RunnableStateMachineLogic (std::string const &name, ServiceContainer &services)

virtual	~RunnableStateMachineLogic ()=default

void	Recovering (StopToken st) override

Public Member Functions inherited from rtctk::componentFramework::RunnableStateMachineLogicIf
virtual	~RunnableStateMachineLogicIf ()=default

Protected Member Functions
template<typename T >
void	GetParam (const rtctk::componentFramework::DataPointPath &path, T &value)

template<typename T >
bool	GetOptionalParam (const rtctk::componentFramework::DataPointPath &path, T &value)

std::optional< numapp::NumaPolicies >	LoadNumaPolicies (const rtctk::componentFramework::DataPointPath &path)

Protected Attributes
rtctk::componentFramework::RuntimeRepoApiIf &	m_rtr

OperationalLogicFactory	m_operational_logic_factory

std::unique_ptr< OperationalLogicIf >	m_operational_logic
	Operational logic constructed during Initialization with parameters from configuration. More...

Protected Attributes inherited from rtctk::componentFramework::RunnableStateMachineLogic
const std::string &	m_name

ServiceContainer &	m_services

Detailed Description

Implements the Telemetry Subscriber business logic.

Member Typedef Documentation

◆ OperationalLogicFactory

using rtctk::telSub::BusinessLogic::OperationalLogicFactory = std::function<std::unique_ptr<OperationalLogicIf>(OperationalLogicFactoryParams const&)>

Constructor & Destructor Documentation

◆ BusinessLogic()

rtctk::telSub::BusinessLogic::BusinessLogic	(	const std::string &	name,
		componentFramework::ServiceContainer &	services,
		OperationalLogicFactory	factory
	)

Member Function Documentation

◆ Disabling()

void rtctk::telSub::BusinessLogic::Disabling ( componentFramework::StopToken st )

overridevirtual

Main tasks:

Deletes OperationalLogic

Requires re-initialization to re-enter Operational.

Reimplemented from rtctk::componentFramework::RunnableStateMachineLogic.

◆ Enabling()

void rtctk::telSub::BusinessLogic::Enabling ( componentFramework::StopToken st )

overridevirtual

Main tasks:

Starts subscribing to DDS topics (but discards any received samples) (TBC, might be already done in Initializing to simplify).

Reimplemented from rtctk::componentFramework::RunnableStateMachineLogic.

◆ GetOptionalParam()

template<typename T >

bool rtctk::telSub::BusinessLogic::GetOptionalParam	(	const rtctk::componentFramework::DataPointPath &	path,
		T &	value
	)

inlineprotected

Helper method similar to GetParam, except no exceptions are thrown if the path does not exit and the value is not modified.

Returns: true if the datapoint exists and false otherwise.

◆ GetParam()

template<typename T >

void rtctk::telSub::BusinessLogic::GetParam	(	const rtctk::componentFramework::DataPointPath &	path,
		T &	value
	)

inlineprotected

Helper method to fetch and log datapoint values loaded from the Runtime Repository.

◆ GoingIdle()

void rtctk::telSub::BusinessLogic::GoingIdle ( componentFramework::StopToken st )

overridevirtual

Main tasks:

Delegate to OperationalLogic that it should pause.

Reimplemented from rtctk::componentFramework::RunnableStateMachineLogic.

◆ GoingRunning()

void rtctk::telSub::BusinessLogic::GoingRunning ( componentFramework::StopToken st )

overridevirtual

Main tasks:

Delegate to OperationalLogic that it should run.

Reimplemented from rtctk::componentFramework::RunnableStateMachineLogic.

◆ Initialising()

void rtctk::telSub::BusinessLogic::Initialising ( componentFramework::StopToken st )

overridevirtual

Main tasks:

Loads configuration.
Creates OperationalLogic using provided factory.

Reimplemented from rtctk::componentFramework::RunnableStateMachineLogic.

◆ IsUpdatingAllowed()

bool rtctk::telSub::BusinessLogic::IsUpdatingAllowed ( componentFramework::Payload args )

overridevirtual

Guard IsUpdatingAllowed

Guard method to further constrain whether an Update command is allowed to cause an Updating activity or not. Simply set the return value to configure as needed.

Parameters

args	Payload, to be able to receive information on what to update

Returns: false if update is dissalowed.; true, if update is allowed.

Reimplemented from rtctk::componentFramework::RunnableStateMachineLogic.

◆ LoadNumaPolicies()

std::optional< numapp::NumaPolicies > rtctk::telSub::BusinessLogic::LoadNumaPolicies ( const rtctk::componentFramework::DataPointPath & path )

protected

Constructs a NumaPolicies object from the configuration datapoints found under the given datapoint path.

Parameters

path	The base path under which configuration datapoints for NUMA policies will be searched. The following sub-paths will be searched: cpu_affinity scheduler_policy scheduler_priority memory_policy_mode memory_policy_nodes

Returns: The loaded NUMA policies or std::nullopt if no policies were provided.

Valid values for the scheduler_policy datapoint are:

Fifo
Rr
Other
Batch

If either Fifo or Rr are used then the scheduler_priority can be used to set the threads priority. scheduler_priority is ignored for other settings of scheduler_policy.

Valid values for the memory_policy_mode datapoint are:

Default
Bind
Interleave
Preferred

Note: Setting only scheduler_priority without scheduler_policy has no effect. scheduler_policy must always be used if scheduler_priority is set in the configuration.; The datapoints for memory_policy_mode and memory_policy_nodes must be provided together.

◆ Running()

void rtctk::telSub::BusinessLogic::Running ( componentFramework::StopToken st )

overridevirtual

TBC if we have anything to do here.

Reimplemented from rtctk::componentFramework::RunnableStateMachineLogic.

◆ Starting()

void rtctk::telSub::BusinessLogic::Starting ( componentFramework::StopToken st )

overridevirtual

Deletes the operational logic if the object exists.

When the Reset command is received and the Starting activity is executed, we need to delete the operational logic object that might already exist, because the component has already been initialised. If the component is starting for the first time then there is nothing to do.

Parameters

st	This parameter is ignored.

Reimplemented from rtctk::componentFramework::RunnableStateMachineLogic.

◆ Updating()

void rtctk::telSub::BusinessLogic::Updating	(	componentFramework::StopToken	st,
		componentFramework::Payload	args
	)

overridevirtual

TBD what, if anything can be updated? I can't think of anything that does not require reinitialization.

Reimplemented from rtctk::componentFramework::RunnableStateMachineLogic.

Member Data Documentation

◆ m_operational_logic

std::unique_ptr<OperationalLogicIf> rtctk::telSub::BusinessLogic::m_operational_logic

protected

Operational logic constructed during Initialization with parameters from configuration.

◆ m_operational_logic_factory

OperationalLogicFactory rtctk::telSub::BusinessLogic::m_operational_logic_factory

protected

◆ m_rtr

rtctk::componentFramework::RuntimeRepoApiIf& rtctk::telSub::BusinessLogic::m_rtr

protected

The documentation for this class was generated from the following files:

reusableComponents/telSub/library/src/include/rtctk/telSub/businessLogic.hpp
reusableComponents/telSub/library/src/businessLogic.cpp
