CRIRES trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-06-16T16:01:54 (UT)
  | now: 2024-06-17T03:58:39 (UT) muc03 QC pipeline: cr2re-1.4.3 (installed 2024-04-08)
same group: DARK_med_YJHK DARK_med_LM DARK_RON DARK_med DARK_nbad
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
The links to KMOS, UVES, and ESPRESSO have been moved to a new section (qcFlow operational) at the lower part of the navigation bar.
CRIRES news:
Report news:
DATE*: [?] 2024-06-10
report | NLT
2024-06-11
report | NLT
2024-06-12
report | NLT
2024-06-13
report | NLT
2024-06-14
report | NLT
2024-06-15
report | NLT
2024-06-16
no data | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw no CAL raw files
P...
CAL product quality:
products products products products products products no CAL products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact | HC_docu... | quality events...                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 5.14 ADU VAL4.,6. 97 dark_ron1 this | last_yr | all DARK_RON, wlen_id=J1228, dit=3.0, CHIP1
2 QC1DB MEDIAN 5.3 ADU VAL4.,6. 97 dark_ron1 this | last_yr | all DARK_RON, wlen_id=J1228, dit=3.0, CHIP2
3 QC1DB MEDIAN 5.27 ADU VAL4.,6. 97 dark_ron1 this | last_yr | all DARK_RON, wlen_id=J1228, dit=3.0, CHIP3
4 QC1DB MEDIAN 3.57 ADU VAL0.,10. 96 dark_ron1 this | last_yr | all DARK_RON, wlen_id=J1228, dit=90.0, CHIP1
5 QC1DB MEDIAN 3.73 ADU VAL0.,10. 96 dark_ron1 this | last_yr | all DARK_RON, wlen_id=J1228, dit=90.0, CHIP2
6 QC1DB MEDIAN 3.81 ADU VAL0.,10. 96 dark_ron1 this | last_yr | all DARK_RON, wlen_id=J1228, dit=90.0, CHIP3
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: 8|
data source:criresp_dark
(QC1 database)
dataset:dark_ron1
median:5.14ADU
fixed thresholds:4.0...6.0ADU
N_data plotted:97
[click plot for closeup]
Plot 2
scores: 8|
data source:criresp_dark
(QC1 database)
dataset:dark_ron1
median:5.3ADU
fixed thresholds:4.0...6.0ADU
N_data plotted:97
[click plot for closeup]
Plot 3
scores: 8|
data source:criresp_dark
(QC1 database)
dataset:dark_ron1
median:5.27ADU
fixed thresholds:4.0...6.0ADU
N_data plotted:97
[click plot for closeup]
Plot 4
scores: 8|
data source:criresp_dark
(QC1 database)
dataset:dark_ron1
median:3.57ADU
fixed thresholds:0.0...10.0ADU
N_data plotted:96
[click plot for closeup]
Plot 5
scores: 8|
data source:criresp_dark
(QC1 database)
dataset:dark_ron1
median:3.73ADU
fixed thresholds:0.0...10.0ADU
N_data plotted:96
[click plot for closeup]
Plot 6
scores: 8|
data source:criresp_dark
(QC1 database)
dataset:dark_ron1
median:3.81ADU
fixed thresholds:0.0...10.0ADU
N_data plotted:96
[click plot for closeup]
This plot

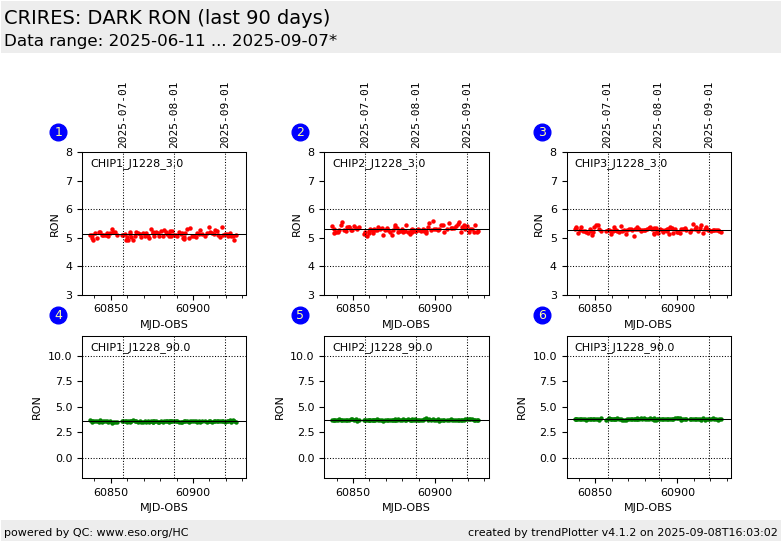

Trending plot for the RON (derived from difference between 3 and 2 input frame) in the CRIRES+ DARK exposures for each of the detectors.

The upper plots show median levels for the WLEN.ID=J1228, DET.DIT=3.0 sec darks and the lower plots for the WLEN.ID=J1228, DET.DIT=90.0 sec darks.


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
