mirror sites: PL (internal link) HQ     [?]

Health Check monitor

CAL | HC | refs | QC
HealthCheck Monitor
   HOME | UsersGuide
  sl icon ALL INSTRUMENTS

all KPI reports
ISAAC:
score overview

detector: dark
zeropoints
grating & slit
twilight flats
check flat

detector: monitoring
detector: linearity
illumination
arcs
spectro flats
opt.dist.coeff.SW
opt.dist.coeff.LW
startrace.coeff

QC ISAAC
Other HC:
UT1
FORS2
KMOS
UT2
FLAMES/GIRAFFE
UVES&FLAMES/UVES
VISIR
UT3
CRIRES
SPHERE
X-SHOOTER
UT4
ERIS
HAWK-I
MUSE
VLTI
GRAVITY
MATISSE
PIONIER
ICCF (Incoh. comb. Coude focus)
ESPRESSO
Survey Cameras
OMEGACAM
QC links:
QC home
Data Products
calChecker
HealthChecks
Reference Frames

QC1 database
Paranal autrep database
  (ESO internal)
[best viewing with style sheets and javascript enabled]
        [page auto-refreshes after 300 sec]   [stop | on]            [press Ctrl+Shift+R to enforce refresh of scores, dates and news]
ISAAC trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2013-12-16T10:08:57 (UT)
  | now: 2024-04-25T08:40:28 (UT) muc03 QC pipeline: isaac-6.1.3 (installed 2013-04-15)
same group: SW-Lamp-On SW-ProMean SW-ProStd SW-Lamp-Off   LW-Lamp-On LW-ProMean LW-ProStd LW-Lamp-Off
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
ISAAC news: 2013-12-16: due to ISAAC decommissioning, refreshing of the health checks disabled
Report news:
DATE*: [?] 2013-12-09
report | NLT 		2013-12-10
report | NLT 		2013-12-11
report | NLT 		2013-12-12
report | NLT 		2013-12-13
no data | NLT 		2013-12-14
no data | NLT 		2013-12-15
no data | NLT
P...
Product quality:
products products products products no products no products no products
  last OPSLOG data:
2013-12-11*
last files ...
[an error occurred while processing this directive]
monitor

scores&comments | history ... | plot tutorial ... | contact               [?] 		*Date on this monitor changes at 21:00 UT
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?		 Symb
?		 Source
*		 OPS?
**		 Average ? Thresholds ? N_
data		 QC1
parameter		 Data
downloads		 Remarks
method value unit method value
1 ∗QC1DB yes (0) none   ADU VAL3000,10000 6 qc_specflat_ncounts this | last_yr | all Halogen lamp flux for SW, LR, SZ, all slits
2 ∗QC1DB yes (1) none   ADU VAL3000,10000 35 qc_specflat_ncounts this | last_yr | all Halogen lamp flux for SW, LR, J, all slits
3 ∗QC1DB yes (0) none   ADU VAL3000,10000 31 qc_specflat_ncounts this | last_yr | all Halogen lamp flux for SW, LR, SH, all slits
4 ∗QC1DB yes (0) none   ADU VAL3000,10000 25 qc_specflat_ncounts this | last_yr | all Halogen lamp flux for SW, LR, SK, all slits
5 ∗QC1DB yes (0) none   ADU VAL3000,10000 31 qc_specflat_ncounts this | last_yr | all Halogen lamp flux for SW, MR, SZ, all slits
6 ∗QC1DB yes (0) none   ADU VAL3000,10000 24 qc_specflat_ncounts this | last_yr | all Halogen lamp flux for SW, MR, J, all slits
7 ∗QC1DB yes (0) none   ADU VAL3000,10000 54 qc_specflat_ncounts this | last_yr | all Halogen lamp flux for SW, MR, SH, all slits
8 ∗QC1DB yes (0) none   ADU VAL3000,10000 89 qc_specflat_ncounts this | last_yr | all Halogen lamp flux for SW, MR, SK, all slits
*Data sources: QC1DB: QC1 database; LOCAL: local text file | **OPS: OPSLOG data are included
Plot 1
scores: 6|
data source:isaac_spflat
(QC1 database)
dataset:qc_specflat_ncounts∗
average:none
fixed thresholds:3000...10000ADU
N_data plotted:6
[click on plot for closeup]
Plot 2
scores: 3|
data source:isaac_spflat
(QC1 database)
dataset:qc_specflat_ncounts∗
average:none
fixed thresholds:3000...10000ADU
N_data plotted:35
[click on plot for closeup]
Plot 3
scores: 3|
data source:isaac_spflat
(QC1 database)
dataset:qc_specflat_ncounts∗
average:none
fixed thresholds:3000...10000ADU
N_data plotted:31
[click on plot for closeup]
Plot 4
scores: 8|
data source:isaac_spflat
(QC1 database)
dataset:qc_specflat_ncounts∗
average:none
fixed thresholds:3000...10000ADU
N_data plotted:25
[click on plot for closeup]
Plot 5
scores: 12|
data source:isaac_spflat
(QC1 database)
dataset:qc_specflat_ncounts∗
average:none
fixed thresholds:3000...10000ADU
N_data plotted:31
[click on plot for closeup]
Plot 6
scores: 12|
data source:isaac_spflat
(QC1 database)
dataset:qc_specflat_ncounts∗
average:none
fixed thresholds:3000...10000ADU
N_data plotted:24
[click on plot for closeup]
Plot 7
scores: 3|
data source:isaac_spflat
(QC1 database)
dataset:qc_specflat_ncounts∗
average:none
fixed thresholds:3000...10000ADU
N_data plotted:54
[click on plot for closeup]
Plot 8
scores: 3|
data source:isaac_spflat
(QC1 database)
dataset:qc_specflat_ncounts∗
average:none
fixed thresholds:3000...10000ADU
N_data plotted:89
[click on plot for closeup]
This plot

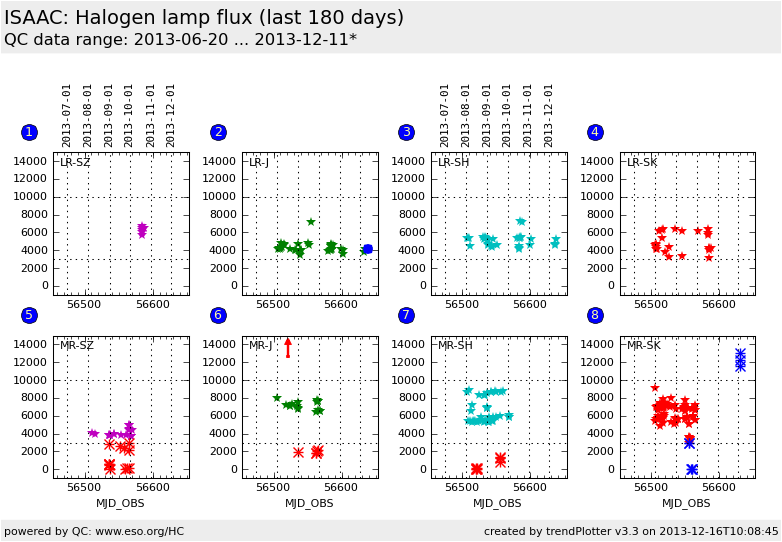

This is the trending plot for the ISAAC QC parameters derived from spectroscopic flat frames. These plots describe:
1. median counts of the master spectroscopic flat SW-LR-SZ, all slits.
2. median counts of the master spectroscopic flat SW-LR-J, all slits.
3. median counts of the master spectroscopic flat SW-LR-SH, all slits.
4. median counts of the master spectroscopic flat SW-LR-SK, all slits.
5. median counts of the master spectroscopic flat SW-MR-SZ, all slits.
6. median counts of the master spectroscopic flat SW-MR-J, all slits.
7. median counts of the master spectroscopic flat SW-MR-SK, all slits.
8. median counts of the master spectroscopic flat SW-MR-SK, all slits.
Other QC parameters related to spectroscopic flat properties (like off-lamp fluxes, are trended.

General information

Click on any of the plots to see a close-up version.

If applicable, the latest values from Paranal ops logs are plotted as blue dots. More information about those values, including a download option, is available in the OPS column.

The latest date is indicated on top of the plot, data points belonging to that date are specially marked.

If configured,

  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
  • you can download the data for each parameter set if the 'Data downloads' link shows up
