OMEGACAM trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2016-07-23T16:00:14 (UT)
  | now: 2016-07-24T02:09:30 (UT) muc06 QC pipeline: omega-1.0.8 (installed 2016-03-14)
same group: BIAS_level BIAS_readnoise RON_select BIAS_select BIAS_hotpixels
General news: Saturday 23rd July (extending to Sunday 24th if required) there will be IT activ ity. Databases will not be available. No new data will be visible on the QC moni tors.
OMEGACAM news:
Report news:
DATE*: [?] 2016-07-17
report | NLT
2016-07-18
report | NLT
2016-07-19
report | NLT
2016-07-20
report | NLT
2016-07-21
report | NLT
2016-07-22
report | NLT
2016-07-23
report | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw raw
P...
Product quality:
products products products products products products products

transfer   ngas: error [?]

scores&comments | history ... | plot tutorial ... | contact                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 271 ADU VAL252.,292. 91 qc_bias_median this | last_yr | all median BIAS level averaged over all 32 detectors (ADU)
2 QC1DB MEDIAN 262 ADU none  2884 qc_bias_median this | last_yr | all median BIAS level for each individual detector (ADU)
3 QC1DB MEDIAN 0.284 ADU VAL0,1.0 91 qc_bias_std this | last_yr | all standard deviation of BIAS level for EACH detector, averaged over all detectors
4 LOCAL none   none none  2883 det_id n/a score per detector:
GREEN = within the thresholds
4 LOCAL none   none none  29 det_id n/a score per detector:
RED = beyond the thresholds
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: 8|
data source:omegacam_bias
(QC1 database)
dataset:qc_bias_median
median:271ADU
fixed thresholds:252.0...292.0ADU
N_data plotted:91
[click on plot for closeup]
Plot 2
scores: not implemented
data source:omegacam_bias
(QC1 database)
dataset:qc_bias_median
median:262ADU
thresholds:none
N_data plotted:2884
[click on plot for closeup]
Plot 3
scores: not implemented
data source:omegacam_bias
(QC1 database)
dataset:qc_bias_std
median:0.284ADU
fixed thresholds:0...1.0ADU
N_data plotted:91
[click on plot for closeup]
Plot 4
scores: not implemented
data source:local data source
dataset:
(numbers below apply to this dataset)
det_id
average:none
thresholds:none
N_data plotted:2883
[click on plot for closeup]

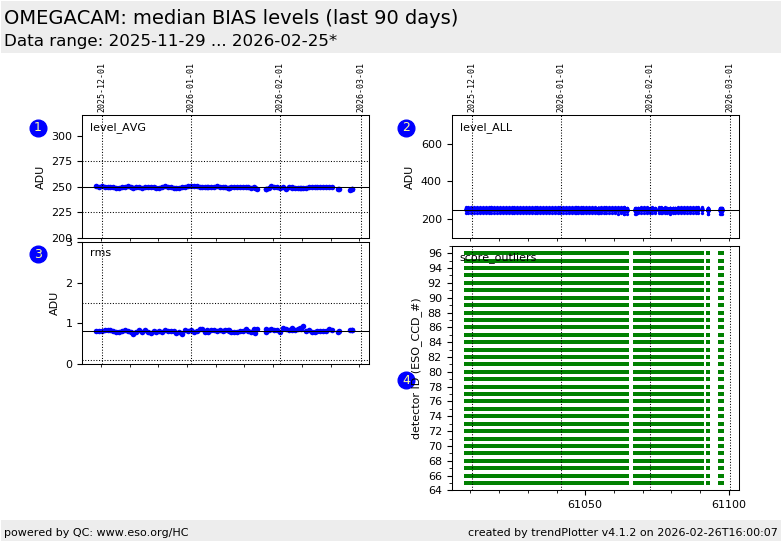

This plot

Trending plots for the median bias levels.

QC parameters are derived from each of 32 detectors of OmegaCAM BIAS frames.

DB Name: omegacam_bias
Fits header: QC.MASTER.BIAS.MEDIAN / QC.MASTER.BIAS.STDEV
QC1 DB: qc_bias_median / qc_bias_std / qc_temp_mosaic_plate

Description:
Median and standard deviation of the MASTER_BIAS pipeline product frame

Setup:
BIN.X / BIN.Y / READ.MODE / READ.SPEED = 1/1/normal/normal

These Health Check plots describe:
Fig. 1 level_AVG: The median bias level averaged over all 32 detectors (in ADU). This plot is sensitive to any changes common to all detectors.
Fig. 2 level_ALL: The median bias level for each individual detector (in ADU). This plot is sensitive changes in individual detectors.
Fig. 3 rms_AVG: The standard deviation of the bias level measured for EACH detector, and then averaged over all detectors (in ADU).
Fig. 4 score_outliers: Scores of the bias level as measured for each of the 32 detectors.
Green = within the defined thresholds.
Red = beyond the defined thresholds.


OmegaCAM detector plane layout (detector_ID locations):
OmegaCAM detector layout


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
