Plot ?
Symb ?
Source *
Average ?
Thresholds ?
N_ data
QC1 parameter
Data downloads
Remarks
method
value
unit
method
value
1
•  QC1DB
MEDIAN
0.0687
ADU
VAL  0.5,0.8
27
qc_darkmed_ave
this
last_yr
all

median dark level, as computed from the master dark
2
•  QC1DB
MEDIAN
0.128
ADU
VAL  0.5,0.8
27
qc_darkmed_stdev
this
last_yr
all

standard deviation of median dark level
3
•  QC1DB
MEDIAN
4.64
ADU
VAL  4.0,5.2
27
qc_ron2
this
last_yr
all

rms noise derived by subtracting 2 consecutive raw darks (normalized to DET.DIT = 1 second)
4
•  QC1DB
MEDIAN
2.81
ADU
VAL  2.0,3.1
27
qc_gaf_fpn
this
last_yr
all

fixed pattern noise as computed by fitting a Gaussian to the master dark histogram
5
•  QC1DB
MEDIAN
5.8e+03
number
VAL  2000,20000
27
qc_bpm_nbadpix
this
last_yr
all

number of pixels with a high dark current
6
•  QC1DB
MEDIAN
0.182
unitless
VAL  0.5,1
27
qc_oes1
this
last_yr
all

raw file 1:median ratio of oddeven column stripes in the area of slitlet THIS IS NOT scored
7
•  QC1DB
MEDIAN
0.0676
unitless
VAL  5,1
27
qc_oes2
this
last_yr
all

raw file 2:median ratio of oddeven column stripes in the area of slitlet THIS IS NOT scored
8
•  QC1DB
MEDIAN
0.286
unitless
VAL  0.5,1.5
27
qc_oes3
this
last_yr
all

raw file 3:median ratio of oddeven column stripes in the area of slitlet THIS IS NOT scored

*Data sources: QC1DB: QC1 database; LOCAL: local data source

Plot 1 scores: 1
 data source:  sinfoni_dark (QC1 database)
dataset:  qc_darkmed_ave  •
median:  0.0687  ADU
fixed thresholds:  0.5...0.8  ADU
N_data plotted:  27
[click on plot for closeup]
Plot 2 scores: 1
 data source:  sinfoni_dark (QC1 database)
dataset:  qc_darkmed_stdev  •
median:  0.128  ADU
fixed thresholds:  0.5...0.8  ADU
N_data plotted:  27
[click on plot for closeup]
Plot 3 scores: 1
 data source:  sinfoni_dark (QC1 database)
dataset:  qc_ron2  •
median:  4.64  ADU
fixed thresholds:  4.0...5.2  ADU
N_data plotted:  27
[click on plot for closeup]
Plot 4 scores: 1
 data source:  sinfoni_dark (QC1 database)
dataset:  qc_gaf_fpn  •
median:  2.81  ADU
fixed thresholds:  2.0...3.1  ADU
N_data plotted:  27
[click on plot for closeup]
Plot 5 scores: 1
 data source:  sinfoni_dark (QC1 database)
dataset:  qc_bpm_nbadpix  •
median:  5.8e+03  number
fixed thresholds:  2000...20000  number
N_data plotted:  27
[click on plot for closeup]
Plot 6 scores: not implemented
 data source:  sinfoni_dark (QC1 database)
dataset:  qc_oes1  •
median:  0.182  unitless
fixed thresholds:  0.5...1  unitless
N_data plotted:  27
[click on plot for closeup]
Plot 7 scores: not implemented
 data source:  sinfoni_dark (QC1 database)
dataset:  qc_oes2  •
median:  0.0676  unitless
fixed thresholds:  5...1  unitless
N_data plotted:  27
[click on plot for closeup]
Plot 8 scores: not implemented
 data source:  sinfoni_dark (QC1 database)
dataset:  qc_oes3  •
median:  0.286  unitless
fixed thresholds:  0.5...1.5  unitless
N_data plotted:  27
[click on plot for closeup]
This plot

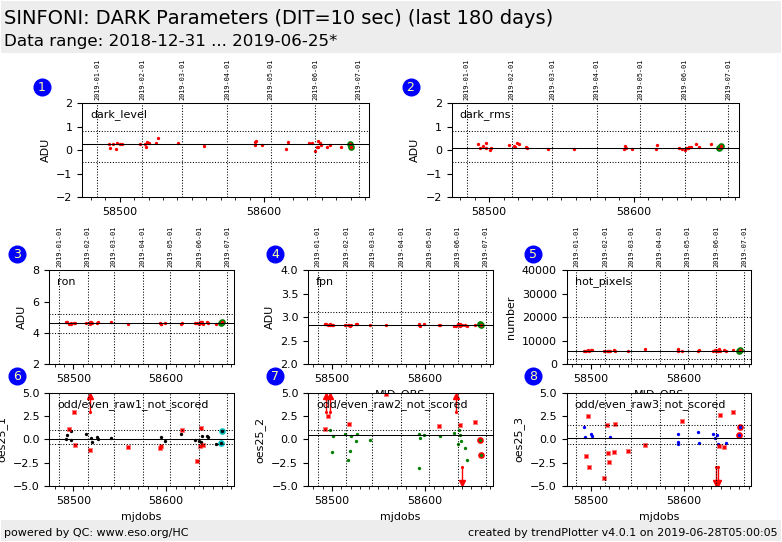

These are the trending plots for the SINFONI QC parameters derived from DARK frames.
These plots describe:
1. the median DARK level, as computed from each master dark frame.
2. the standard deviation of the median DARK level.
3. the rootmeansquared noise, as derived by subtracting two consecutive raw dark frames, computing a median standard deviation in
selected subwindows, computing a median standard deviation in selected subwindows in the difference image, and then
normalizing to DET.DIT=1 second.
4. the fixed pattern noise, as computed by fitting a Gaussian to the histogram
of the master dark frames. The fpn is simply the standard deviation of Gaussian.
5. the number of pixels with a high dark current.
6/7/8. the oddeven column stripes in the area of slitlet #25. If med(odd) = median of all odd columns in the area of slitlet #25
and med(even) = median of all even columns in the area of slitlet #25 then, this plot is defined as:
oes25 = 2 * (med(odd)  med(even)) / (med(odd) + med(even))
the plots show the effect for the first 3 raw files of the DARK
DARK current and RON higher than usual could be due to an increase of the detector temperature (INS.TEMP6.VAL), grating temperature (INS.TEMP13.VAL) or of the rack
temperature (INS.TEMP6.VAL). Check also INS.SENS13.ST (Detector warm mode).
Find more information about SINFONI DARK frames
here.
Other QC parameters related to detector properties (like dark level,
linearity, gain, etc.) are also trended
here.
General information
Click on any of the plots to see a closeup version.
The latest date is indicated on top of the plot.
If configured,
 data points belonging to the latest date are specially marked
 statistical averages are indicated by a solid line, and thresholds by broken lines
 outliers are marked by a red asterisk. They are defined as data points outside the
threshold lines
 "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
 you can download the data for each parameter set if the 'Data downloads' link shows up
