SINFONI trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2015-05-29T18:03:42 (UT)
  | now: 2015-05-29T23:49:31 (UT) muc04 QC pipeline: sinfo-2.6.0 (installed 2015-04-23)
same group: slit_dist_ALL slit_dist_JHK distortion_shift   distortion_coef00 coef01 coef10 coef11 coef20 coef02 coef21
General news: 2015-05-29: transfer of fits files to Garching is extremely slow due to broken EVALSO link; information on Health Check pages may therefore be not up to date; header replication for calChecker seems functional
SINFONI news:
Report news:
DATE*: [?] 2015-05-22
report | NLT
2015-05-23
report | NLT
2015-05-24
report | NLT
2015-05-25
report | NLT
2015-05-26
report | NLT
2015-05-27
report | NLT
2015-05-28
report | NLT
2015-05-29
no data | NLT
P...
Product quality:
products products products products products products products no products

transfer   ngas [?]


scores&comments | history ... | plot tutorial ... | contact               [?]
*Date on this monitor changes at 21:00 UT
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 14.5 pixels VAL10.0,18.0 47 qc_coeff_00 this | last_yr | all J-band distortion coefficient C00 (dist = C00 + C10x + C01y + C11xy + C20x^2 + C02y^2 + C21x^2y + C12xy^2)
2 QC1DB MEDIAN 17.8 pixels VAL14.0,22.0 34 qc_coeff_00 this | last_yr | all H-band distortion coefficient C00
3 QC1DB MEDIAN 24.1 pixels VAL20.0,28.0 54 qc_coeff_00 this | last_yr | all K-band distortion coefficient C00
4 QC1DB MEDIAN 21.3 pixels VAL17.0,25.0 69 qc_coeff_00 this | last_yr | all H+K-band distortion coefficient C00
*Data sources: QC1DB: QC1 database; LOCAL: local data source

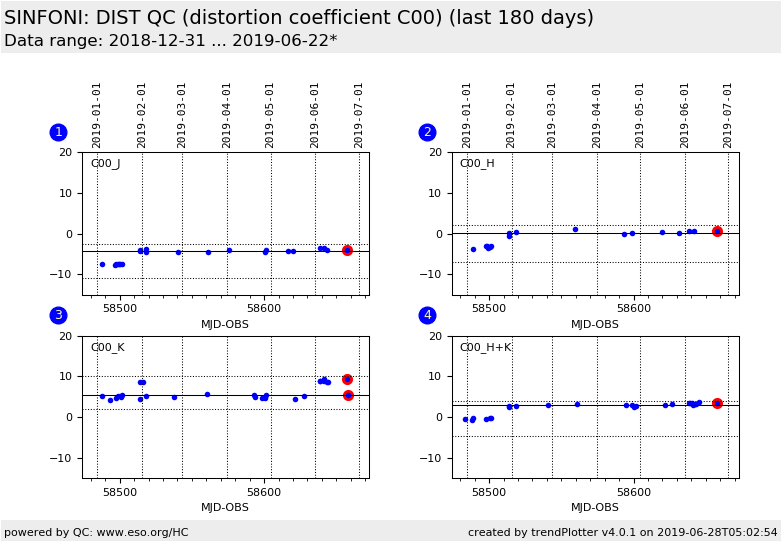

Plot 1
scores: 1|
data source:sinfoni_dist
(QC1 database)
dataset:qc_coeff_00
median:14.5pixels
fixed thresholds:10.0...18.0pixels
N_data plotted:47
[click on plot for closeup]
Plot 2
scores: 1|
data source:sinfoni_dist
(QC1 database)
dataset:qc_coeff_00
median:17.8pixels
fixed thresholds:14.0...22.0pixels
N_data plotted:34
[click on plot for closeup]
Plot 3
scores: 2|
data source:sinfoni_dist
(QC1 database)
dataset:qc_coeff_00
median:24.1pixels
fixed thresholds:20.0...28.0pixels
N_data plotted:54
[click on plot for closeup]
Plot 4
scores: 5|
data source:sinfoni_dist
(QC1 database)
dataset:qc_coeff_00
median:21.3pixels
fixed thresholds:17.0...25.0pixels
N_data plotted:69
[click on plot for closeup]
This plot

These are the trending plots for the SINFONI QC parameters derived from DISTORTION frames.

Distortion frames are obtained for the J, H, K, and H+K bandpasses, but only for the 250 mas camera.




General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
