SINFONI trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2018-01-16T12:02:33 (UT)
  | now: 2018-01-16T17:45:49 (UT) muc04 QC pipeline: sinfo-3.0.5 (installed 2017-10-27)
same group: detector_gain   nonlinear_pixels linearity_coef_C0 coef_C1 coef_C2
General news:
SINFONI news:
Report news:
DATE*: [?] 2018-01-09
report | NLT
2018-01-10
report | NLT
2018-01-11
report | NLT
2018-01-12
report | NLT
2018-01-13
report | NLT
2018-01-14
report | NLT
2018-01-15
report | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw raw
P...
CAL product quality:
products products products products products products products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact               [?]
*Date on this monitor changes at 21:00 UT
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 1.38 counts VAL-20.0,20.0 10 qc_bpm_lin0_mean this | last_yr | all J-band linearity coefficient (mean) C0 (nlin(x) = C0 + C1x + C2x^2 + C3x^3) (only for the 25 mas camera scale)
2 QC1DB MEDIAN -6.48 counts VAL-20.0,20.0 10 qc_bpm_lin0_mean this | last_yr | all H-band linearity coefficient (mean) C0
3 QC1DB MEDIAN -0.344 counts VAL-20.0,20.0 12 qc_bpm_lin0_mean this | last_yr | all K-band linearity coefficient (mean) C0
4 QC1DB MEDIAN -6.26 counts VAL-20.0,20.0 10 qc_bpm_lin0_mean this | last_yr | all H+K-band linearity coefficient (mean) C0
*Data sources: QC1DB: QC1 database; LOCAL: local data source

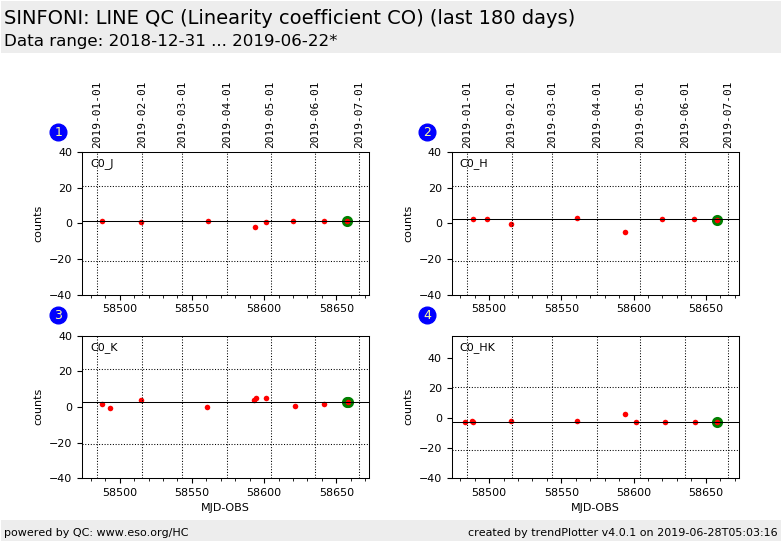

Plot 1
scores: 1|
data source:sinfoni_line
(QC1 database)
dataset:qc_bpm_lin0_mean
median:1.38counts
fixed thresholds:-20.0...20.0counts
N_data plotted:10
[click on plot for closeup]
Plot 2
scores: 2|
data source:sinfoni_line
(QC1 database)
dataset:qc_bpm_lin0_mean
median:-6.48counts
fixed thresholds:-20.0...20.0counts
N_data plotted:10
[click on plot for closeup]
Plot 3
scores: 1|
data source:sinfoni_line
(QC1 database)
dataset:qc_bpm_lin0_mean
median:-0.344counts
fixed thresholds:-20.0...20.0counts
N_data plotted:12
[click on plot for closeup]
Plot 4
scores: 2|
data source:sinfoni_line
(QC1 database)
dataset:qc_bpm_lin0_mean
median:-6.26counts
fixed thresholds:-20.0...20.0counts
N_data plotted:10
[click on plot for closeup]
General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
