SINFONI trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2014-07-23T12:04:46 (UT)
  | now: 2014-07-23T15:21:39 (UT) muc04 QC pipeline: sinfo-2.5.3 (installed 2014-05-22)
same group: detector_gain   nonlinear_pixels linearity_coef_C0 coef_C1 coef_C2
General news:
SINFONI news:
Report news:
DATE*: [?] 2014-07-16
report | NLT
2014-07-17
report | NLT
2014-07-18
report | NLT
2014-07-19
report | NLT
2014-07-20
report | NLT
2014-07-21
report | NLT
2014-07-22
report | NLT
P...
Product quality:
products products products products products products products
  last OPSLOG data:
2014-07-18*

last files ...
monitor

scores&comments | FULL | history ... | plot tutorial ... | contact               [?]
*Date on this monitor changes at 21:00 UT
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
OPS?
**
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB yes (1) MEDIAN 7.46e+03 number VAL3000,12000 11 qc_bpm_nbadpix this | last_yr | all total number of non-linear pixels in the J-band (only for the 25 mas camera scale)
2 QC1DB yes (1) MEDIAN 5.68e+03 number VAL3000,8000 12 qc_bpm_nbadpix this | last_yr | all total number of non-linear pixels in the H-band (only for the 25 mas camera scale)
3 QC1DB yes (2) MEDIAN 4.22e+03 number VAL2000,6500 12 qc_bpm_nbadpix this | last_yr | all total number of non-linear pixels in K-band (only for the 25 mas camera scale)
4 QC1DB yes (0) MEDIAN 4.35e+03 number VAL2000,6000 14 qc_bpm_nbadpix this | last_yr | all total number of non-linear pixels in the H+K band (only for the 25 mas camera scale)
*Data sources: QC1DB: QC1 database; LOCAL: local text file | **OPS: OPSLOG data are included

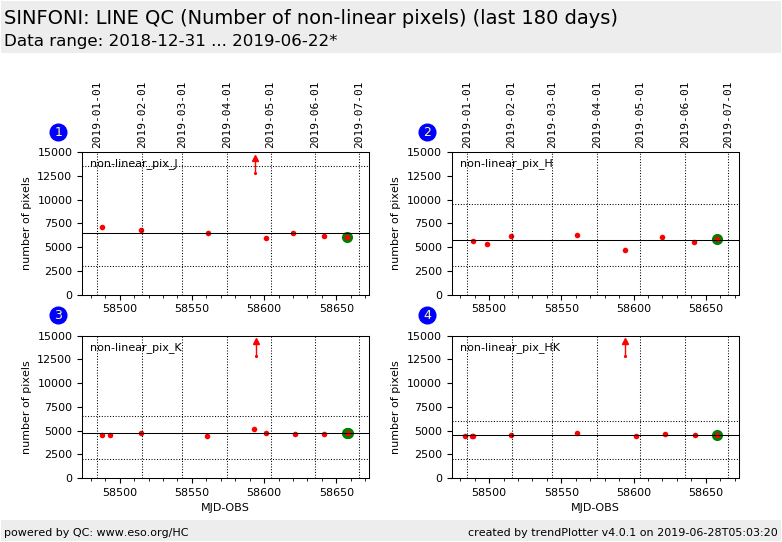

Plot 1
scores: 1|
data source:sinfoni_line
(QC1 database)
dataset:qc_bpm_nbadpix
median:7.46e+03number
fixed thresholds:3000...12000number
N_data plotted:11
[click on plot for closeup]
Plot 2
scores: 1|
data source:sinfoni_line
(QC1 database)
dataset:qc_bpm_nbadpix
median:5.68e+03number
fixed thresholds:3000...8000number
N_data plotted:12
[click on plot for closeup]
Plot 3
scores: 2|
data source:sinfoni_line
(QC1 database)
dataset:qc_bpm_nbadpix
median:4.22e+03number
fixed thresholds:2000...6500number
N_data plotted:12
[click on plot for closeup]
Plot 4
scores: 1|
data source:sinfoni_line
(QC1 database)
dataset:qc_bpm_nbadpix
median:4.35e+03number
fixed thresholds:2000...6000number
N_data plotted:14
[click on plot for closeup]
General information

Click on any of the plots to see a close-up version.

If applicable, the latest values from Paranal ops logs are plotted as blue dots. More information about those values, including a download option, is available in the OPS column.

The latest date is indicated on top of the plot, data points belonging to that date are specially marked.

If configured,

  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
