SINFONI trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2016-12-08T18:03:42 (UT)
  | now: 2016-12-08T20:37:55 (UT) muc04 QC pipeline: sinfo-2.9.1 (installed 2016-07-04)
same group: detector_gain   nonlinear_pixels linearity_coef_C0 coef_C1 coef_C2
General news:
SINFONI news: SINFONI recommissioning after DSM upgrade.
Report news:
DATE*: [?] 2016-12-01
no data | NLT
2016-12-02
report | NLT
2016-12-03
report | NLT
2016-12-04
no data | NLT
2016-12-05
report | NLT
2016-12-06
report | NLT
2016-12-07
report | NLT
r...
Raw CAL displays:
no raw files raw raw no raw files raw raw raw
P...
Product quality:
no products products products no products products products products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact               [?]
*Date on this monitor changes at 21:00 UT
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 0.683 x10^-7 VAL-15.0,15.0 12 qc_bpm_lin2_mean this | last_yr | all J-band linearity coefficient (mean) C2 (nlin(x) = C0 + C1x + C2x^2 + C3x^3) (only for the 25 mas camera scale)
2 QC1DB MEDIAN -0.0718 x10^-7 VAL-20.0,10.0 9 qc_bpm_lin2_mean this | last_yr | all H-band linearity coefficient (mean) C2
3 QC1DB MEDIAN -0.517 x10^-7 VAL-25.0,5.0 9 qc_bpm_lin2_mean this | last_yr | all K-band linearity coefficient (mean) C2
4 QC1DB MEDIAN -13.5 x10^-7 VAL-23.0,10.0 7 qc_bpm_lin2_mean this | last_yr | all H+K-band linearity coefficient (mean) C2
*Data sources: QC1DB: QC1 database; LOCAL: local data source

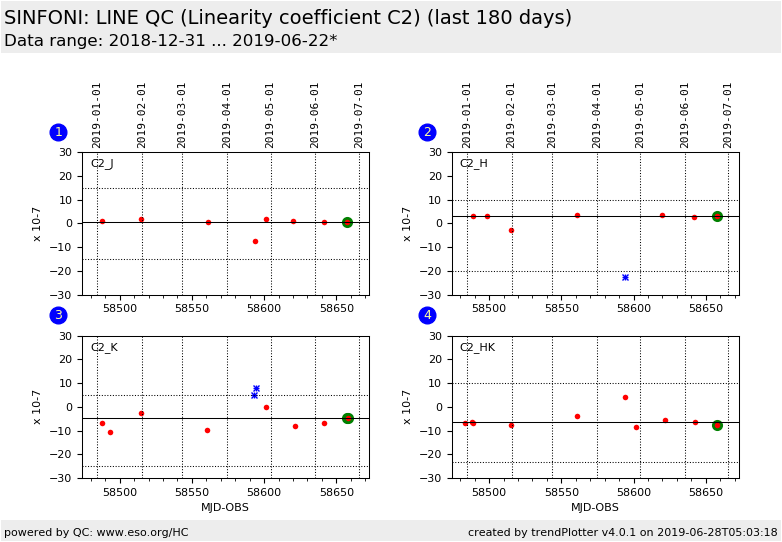

Plot 1
scores: 1|
data source:sinfoni_line
(QC1 database)
dataset:qc_bpm_lin2_mean
median:0.683x10^-7
fixed thresholds:-15.0...15.0x10^-7
N_data plotted:12
[click on plot for closeup]
Plot 2
scores: 1|
data source:sinfoni_line
(QC1 database)
dataset:qc_bpm_lin2_mean
median:-0.0718x10^-7
fixed thresholds:-20.0...10.0x10^-7
N_data plotted:9
[click on plot for closeup]
Plot 3
scores: 1|
data source:sinfoni_line
(QC1 database)
dataset:qc_bpm_lin2_mean
median:-0.517x10^-7
fixed thresholds:-25.0...5.0x10^-7
N_data plotted:9
[click on plot for closeup]
Plot 4
scores: 1|
data source:sinfoni_line
(QC1 database)
dataset:qc_bpm_lin2_mean
median:-13.5x10^-7
fixed thresholds:-23.0...10.0x10^-7
N_data plotted:7
[click on plot for closeup]
General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
