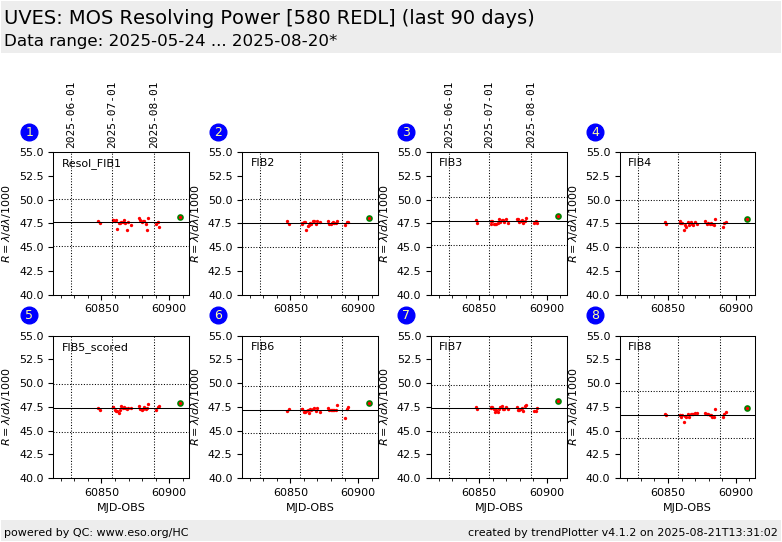

This is the trending report for FLAMES/UVES QC parameters for wavelength calibration. It is based on
data taken with the RED LOWER CCD in setting 580, 7+1FIB, with Plate 1.
These data are taken daily as part of the Health Checks.
Note: only Fibre 4 is considered in the score for this report.
The individual plots describe:
- Fibre 1: The average of the resolution values measured for each line included in the final selection
Note that in contrast to fibres 2-8 which are illuminated by
the robotic fibre projector fed by a Thorium-Argon lamp,
fibre 1 is illuminated by the simultaneous calibration wavelength
calibration lamp.
- Fibres 2-8: The average of the resolution values measured for each line included in the final selection.
Note there is currently NO monitoring for fibre 9, used in the
8FIB modes.
Find more information about FLAMES/UVES wavelength solution monitoring here.
General information
Click on any of the plots to see a close-up version.
If applicable, the latest values from Paranal ops logs are plotted as blue dots. More information about those values, including a download option, is available in the OPS column.
The latest date is indicated on top of the plot, data points belonging to that date are specially marked.
If configured,
- statistical averages are indicated by a solid line, and thresholds by broken lines
- outliers are marked by a red asterisk. They are defined as data points outside the
threshold lines
- "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
- you can download the data for each parameter set if the 'Data downloads' link shows up
|
