XSHOOTER trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2014-10-20T22:36:23 (UT)
  | now: 2014-10-21T03:15:13 (UT) muc02 QC pipeline: xshoo-2.4.0 (installed 2014-03-26)
same group: med_master ron_raw ron_master struct_x struct_y
General news:
XSHOOTER news:
Report news:
DATE*: [?] 2014-10-14
report | NLT
2014-10-15
report | NLT
2014-10-16
report | NLT
2014-10-17
report | NLT
2014-10-18
report | NLT
2014-10-19
report | NLT
2014-10-20
report | NLT
P...
Product quality:
products products products products products products products
  last OPSLOG data:
2014-10-19*

last files ...
monitor

scores&comments | FULL | history ... | plot tutorial ... | contact                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
OPS?
**
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB yes (8) MEDIAN 3.95 ADU VAL3.2,4.8 59 ron this | last_yr | all 100k/1pt/hg
2 QC1DB yes (9) MEDIAN 2.52 ADU VAL2.,3. 58 ron this | last_yr | all 400k/1pt/lg
3 QC1DB yes (8) MEDIAN 3.98 ADU VAL3.2,4.8 58 ron this | last_yr | all 100k/1pt/hg/1x2
4 QC1DB yes (8) MEDIAN 2.52 ADU VAL2.,3. 59 ron this | last_yr | all 400k/1pt/lg/1x2
*Data sources: QC1DB: QC1 database; LOCAL: local text file | **OPS: OPSLOG data are included

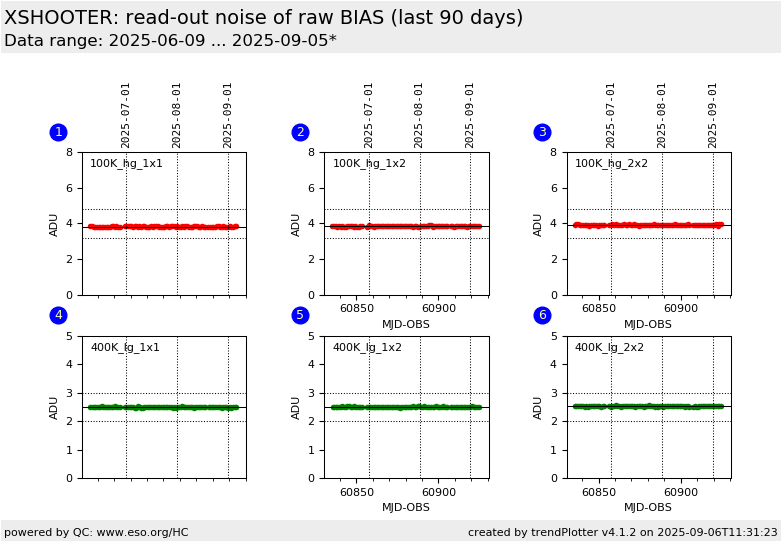

Plot 1
scores: 7|
data source:xshooter_bias
(QC1 database)
dataset:ron
median:3.95ADU
fixed thresholds:3.2...4.8ADU
N_data plotted:59
[click on plot for closeup]
Plot 3
scores: 7|
data source:xshooter_bias
(QC1 database)
dataset:ron
median:3.98ADU
fixed thresholds:3.2...4.8ADU
N_data plotted:58
[click on plot for closeup]
Plot 2
scores: 7|
data source:xshooter_bias
(QC1 database)
dataset:ron
median:2.52ADU
fixed thresholds:2.0...3.0ADU
N_data plotted:58
[click on plot for closeup]
Plot 4
scores: 7|
data source:xshooter_bias
(QC1 database)
dataset:ron
median:2.52ADU
fixed thresholds:2.0...3.0ADU
N_data plotted:59
[click on plot for closeup]
This plot

The difference between the first and the second input raw biases (in ADU) is computed. The population standard deviation of the pixel values of this difference, divided by the square root of 2, is taken as the RON. More information can be found at the plot tutorial page


General information

Click on any of the plots to see a close-up version.

If applicable, the latest values from Paranal ops logs are plotted as blue dots. More information about those values, including a download option, is available in the OPS column.

The latest date is indicated on top of the plot, data points belonging to that date are specially marked.

If configured,

  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
