CRIRES trending system: HEALTH CHECK plot
Last update: 2008-11-22T12:47:41 (UT)
now: 2008-11-22T16:02:35 (UT)
scores active INFO USERS-GUIDE MORE
same group: darkmed RON   badpix
last OPSLOG data:
2008-11-21		 Plot: 1 2 3 4 5 6 7 8   latest_files
N_data: number of recent OPSLOG entries plotted here
N_data: 8 8 8 8 7 7 7 7 availability
less ... | history ... | plot tutorial ... | contact                 daily/often; important to check     [?]
Print: Information and research: News:
- png file - advanced studies: QC1 browser | QC1 plotter

Plot
?		 Symb
?		 Source
*		 OPS?
**		 Average ? Thresholds ? N_
data		 QC1
parameter		 Data
downloads		 Remarks
method value unit method value
1 •QC1DB yes (8) MEDIAN 3.45221 ADU VAL3.3,3.65 74 ron23 this | last_yr | all RON, chip 1, DIT=1
2 •QC1DB yes (8) MEDIAN 3.53613 ADU VAL3.4,4.4 74 ron23 this | last_yr | all RON, chip 2, DIT=1
3 •QC1DB yes (8) MEDIAN 3.63796 ADU VAL3.57,3.75 74 ron23 this | last_yr | all RON, chip 3, DIT=1
4 •QC1DB yes (8) MEDIAN 4.02729 ADU VAL3.9,4.6 74 ron23 this | last_yr | all RON, chip 4, DIT=1
5 •QC1DB yes (7) MEDIAN 1.67398 ADU VAL1.5,1.85 83 ron23 this | last_yr | all RON, chip 1, DIT=300
6 •QC1DB yes (7) MEDIAN 1.90611 ADU VAL1.75,2.2 83 ron23 this | last_yr | all RON, chip 2, DIT=300
7 •QC1DB yes (7) MEDIAN 2.01698 ADU VAL1.85,2.2 83 ron23 this | last_yr | all RON, chip 3, DIT=300
8 •QC1DB yes (7) MEDIAN 2.18819 ADU VAL1.7,2.5 83 ron23 this | last_yr | all RON, chip 4, DIT=300
*Data sources: QC1DB: QC1 database; LOCAL: local text file | **OPS: to indicate that OPSLOG data are included
This plot

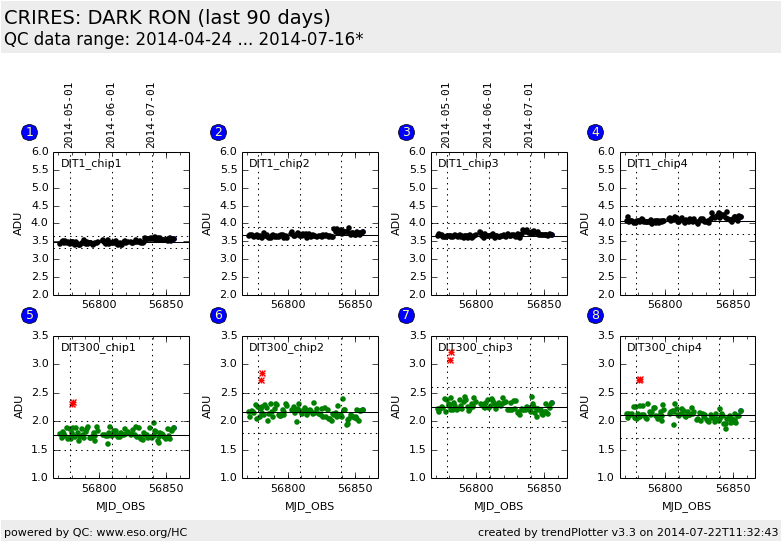

Trending plot for CRIRES RON as determined from DARK exposures.

The read-out noise is measured from the difference of the 3rd and 2nd dark image. The trending shows RON from DIT=1sec and DIT=300sec exposures for all four chips.



General information

Click on any of the plots to see a close-up version.

If applicable, the latest values from Paranal ops logs are plotted as blue dots. More information about those values, including a download option, is available in the OPSLOG section on top of the page.

The latest date is indicated on top of the plot, data points belonging to that date are specially marked.

If configured,

  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
  • you can download the data for each parameter set if the 'Data downloads' link shows up
