ISAAC trending system: HEALTH CHECK plot

Last update: 2008-10-10T21:43:28 (UT)

now: 2008-10-12T17:54:47 (UT)

same group:

history ...

| plot tutorial ...

[info]

no OPSLOG data

Print:	Information and research:	News:
- png file	- advanced studies: QC1 browser \| QC1 plotter 2007-03-29: migrated to trendPlotter	migrated to HC pages

Plot [info]	Symbol [info]	Source*	OPS?**	Average [info]			Thresholds [info]		N_data	Data downloads	Remarks
Plot [info]	Symbol [info]	Source*	OPS?**	method	value	unit	method	value	N_data	Data downloads	Remarks
1	[19]	`QC1DB`		`none`		`ADU`	`none`		`9`	this \| last_yr \| all	MASTER_IMG_FLAT Ks-band mean counts in a selected quadrant window
1	♦	`QC1DB`		`none`		`ADU`	`none`		`3`	this \| last_yr \| all	MASTER_IMG_FLAT H-band mean counts in a selected quadrant window
1	o	`QC1DB`		`none`		`ADU`	`none`		`9`	this \| last_yr \| all	MASTER_IMG_FLAT J-band mean counts in a selected quadrant window
1	•	`QC1DB`		`none`		`ADU`	`none`		`6`	this \| last_yr \| all	MASTER_IMG_FLAT Js-band mean counts in a selected quadrant window
2	[19]	`QC1DB`		`none`		`ADU`	`none`		`9`	this \| last_yr \| all	MASTER_IMG_FLAT Ks-band mean counts in a selected quadrant window
2	♦	`QC1DB`		`none`		`ADU`	`none`		`3`	this \| last_yr \| all	MASTER_IMG_FLAT H-band mean counts in a selected quadrant window
2	o	`QC1DB`		`none`		`ADU`	`none`		`9`	this \| last_yr \| all	MASTER_IMG_FLAT J-band mean counts in a selected quadrant window
2	•	`QC1DB`		`none`		`ADU`	`none`		`6`	this \| last_yr \| all	MASTER_IMG_FLAT Js-band mean counts in a selected quadrant window
5	[19]	`QC1DB`		`none`		`ADU`	`none`		`9`	this \| last_yr \| all	MASTER_IMG_FLAT Ks-band mean counts in a selected quadrant window
5	♦	`QC1DB`		`none`		`ADU`	`none`		`3`	this \| last_yr \| all	MASTER_IMG_FLAT H-band mean counts in a selected quadrant window
5	o	`QC1DB`		`none`		`ADU`	`none`		`9`	this \| last_yr \| all	MASTER_IMG_FLAT J-band mean counts in a selected quadrant window
5	•	`QC1DB`		`none`		`ADU`	`none`		`6`	this \| last_yr \| all	MASTER_IMG_FLAT Js-band mean counts in a selected quadrant window
6	[19]	`QC1DB`		`none`		`ADU`	`none`		`9`	this \| last_yr \| all	MASTER_IMG_FLAT Ks-band mean counts in a selected quadrant window
6	♦	`QC1DB`		`none`		`ADU`	`none`		`3`	this \| last_yr \| all	MASTER_IMG_FLAT H-band mean counts in a selected quadrant window
6	o	`QC1DB`		`none`		`ADU`	`none`		`9`	this \| last_yr \| all	MASTER_IMG_FLAT J-band mean counts in a selected quadrant window
6	•	`QC1DB`		`none`		`ADU`	`none`		`6`	this \| last_yr \| all	MASTER_IMG_FLAT Js-band mean counts in a selected quadrant window
3	[19]	`QC1DB`		`none`		`ADU`	`none`		`9`	this \| last_yr \| all	MASTER_IMG_FLAT Ks-band standard deviation in a selected quadrant window
3	♦	`QC1DB`		`none`		`ADU`	`none`		`3`	this \| last_yr \| all	MASTER_IMG_FLAT H-band standard deviation in a selected quadrant window
3	o	`QC1DB`		`none`		`ADU`	`none`		`9`	this \| last_yr \| all	MASTER_IMG_FLAT J-band standard deviation in a selected quadrant window
3	•	`QC1DB`		`none`		`ADU`	`none`		`6`	this \| last_yr \| all	MASTER_IMG_FLAT Js-band standard deviation in a selected quadrant window
4	[19]	`QC1DB`		`none`		`ADU`	`none`		`9`	this \| last_yr \| all	MASTER_IMG_FLAT Ks-band standard deviation in a selected quadrant window
4	♦	`QC1DB`		`none`		`ADU`	`none`		`3`	this \| last_yr \| all	MASTER_IMG_FLAT H-band standard deviation in a selected quadrant window
4	o	`QC1DB`		`none`		`ADU`	`none`		`9`	this \| last_yr \| all	MASTER_IMG_FLAT J-band standard deviation in a selected quadrant window
4	•	`QC1DB`		`none`		`ADU`	`none`		`6`	this \| last_yr \| all	MASTER_IMG_FLAT Js-band standard deviation in a selected quadrant window
7	[19]	`QC1DB`		`none`		`ADU`	`none`		`9`	this \| last_yr \| all	MASTER_IMG_FLAT Ks-band standard deviation in a selected quadrant window
7	♦	`QC1DB`		`none`		`ADU`	`none`		`3`	this \| last_yr \| all	MASTER_IMG_FLAT H-band standard deviation in a selected quadrant window
7	o	`QC1DB`		`none`		`ADU`	`none`		`9`	this \| last_yr \| all	MASTER_IMG_FLAT J-band standard deviation in a selected quadrant window
7	•	`QC1DB`		`none`		`ADU`	`none`		`6`	this \| last_yr \| all	MASTER_IMG_FLAT Js-band standard deviation in a selected quadrant window
8	[19]	`QC1DB`		`none`		`ADU`	`none`		`9`	this \| last_yr \| all	MASTER_IMG_FLAT Ks-band standard deviation in a selected quadrant window
8	♦	`QC1DB`		`none`		`ADU`	`none`		`3`	this \| last_yr \| all	MASTER_IMG_FLAT H-band standard deviation in a selected quadrant window
8	o	`QC1DB`		`none`		`ADU`	`none`		`9`	this \| last_yr \| all	MASTER_IMG_FLAT J-band standard deviation in a selected quadrant window
8	•	`QC1DB`		`none`		`ADU`	`none`		`6`	this \| last_yr \| all	MASTER_IMG_FLAT Js-band standard deviation in a selected quadrant window

Data sources: QC1DB: QC1 database; LOCAL: local text file \| *OPS: to indicate if OPSLOG data are included

This plot

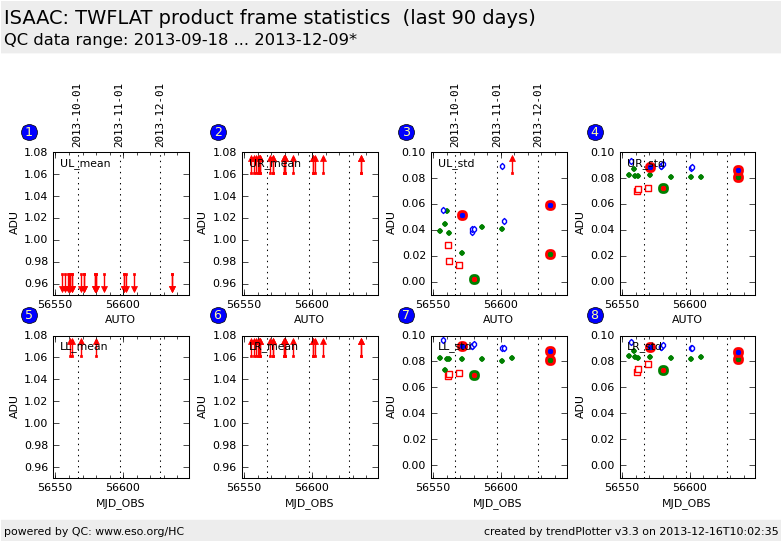

This is the trending plot for the ISAAC twilight flat QC parameters of the SW-arm

QC values are derived from post-pipeline QC scripts, hence there are no Paranal values for inclusion.

These plots describe:
1. Sample mean of the master twilight flat. The window of the sample is [200 700 300 800] in the UL quadrant.
2. Sample mean of the master twilight flat. The window of the sample is [700 700 800 800] in the UR quadrant.
5. Sample mean of the master twilight flat. The window of the sample is [200 200 300 300] in the LL quadrant.
6. Sample mean of the master twilight flat. The window of the sample is [700 200 800 300] in the LR quadrant.

3. Sample stdev of the master twilight flat. The window of the sample is [200 700 300 800] in the UL quadrant.
4. Sample stdev of the master twilight flat. The window of the sample is [700 700 800 800] in the UR quadrant.
7. Sample stdev of the master twilight flat. The window of the sample is [200 200 300 300] in the LL quadrant.
8. Sample stdev of the master twilight flat. The window of the sample is [700 200 800 300] in the LR quadrant.

The color coding is : green for H, blue for J and Js, red for K.

The mean and stdev QC1 parameters are sensitive to residual stars and residual star traces,as well as to changes in the overal slope of the master flat field. Find more information about ISAAC QC parameters derived from twilight flats here.

General information

Click on any of the plots to see a close-up version. The latest date is indicated on top of the plot, data points belonging to that date are specially marked.

If configured,

statistical averages are indicated by a solid line, and thresholds by broken lines
outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
"aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
you can download the data for each parameter set if the 'Data downloads' link shows up
