| This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey). | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
| bottom plots | contact | ||||||||||||||||||||||||||||
| NAME | std_pmos_qc.prg | |||||||||||||||||||||||||||
| VERSION | 1.0 -- adapted from std_mos_qc.prg (2009-04, SM) | |||||||||||||||||||||||||||
| SYNTAX | MIDAS | |||||||||||||||||||||||||||
| CALL |
measureQuality from $DFS_PRODUCT/STD_PMOS/$DATE: inmidas -P -j "@@ $DFO_PROC_DIR/std_pmos_qc.prg $date $PF" | |||||||||||||||||||||||||||
| INSTRUMENT | FORS2 | |||||||||||||||||||||||||||
| RAWTYPE | STD_PMOS | |||||||||||||||||||||||||||
| PURPOSE | compares raw and product STD_PMOS files for FORS2 QC assessment; the plots are later reviewed within certifyProducts. The first plot (std_mos_grap1.png) is stored as Postscript file in $DFO_PLT_DIR. | |||||||||||||||||||||||||||
| PROCINPUT |
raw image from AB; STD_PMOS product; | |||||||||||||||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: fors2_std_pmos | |||||||||||||||||||||||||||
| TRENDPLOT |
trending | HealthCheck plot(s) associated to this procedure: trend_report_PMOS_angle_HC.html | trend_report_PMOS_off_pol_HC.html | trend_report_PMOS_inst_pol_HC.html | |||||||||||||||||||||||||||
| QC1PAGE | trending | associated documentation: none | |||||||||||||||||||||||||||
| QC1PLOTS top |

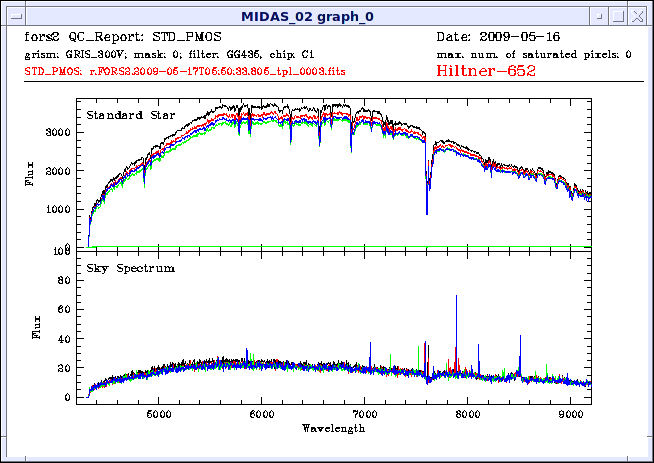

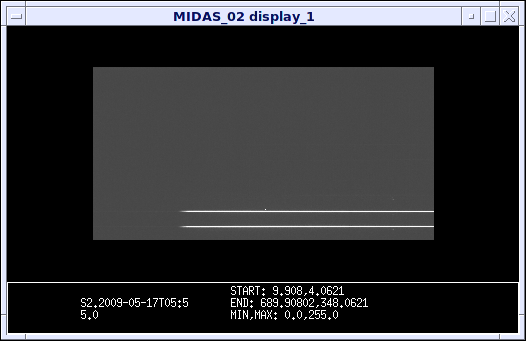

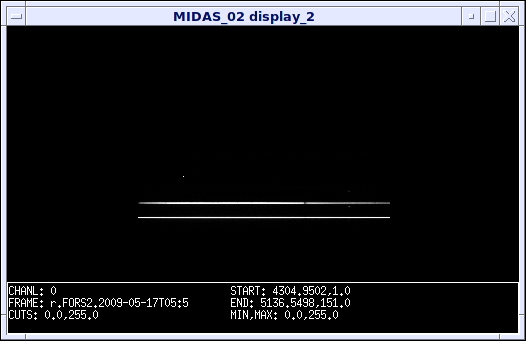

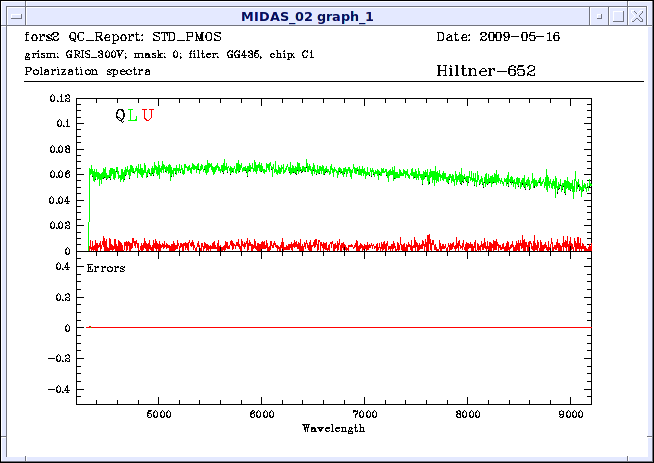

std_pmos_grap1.png upper panel: extracted, sky-subtracted spectra of brightest source with error spectrum (green) lower panel: extracted sky background for brightest object Different colours mark different angles std_pmos_grap2.png polarization spectra of brightest source (top) with error spectrum (bottom) std_pmos_disp1.png full display of raw frame std_pmos_disp2.png full display of reduced, sky-subtracted frame | |||||||||||||||||||||||||||
| QC1PARAM |
QC1 parameters written into QC1 table: QC1db names: l_offset | err_l_offset | rel_l_offset | angle_offset | err_angle_offset FITS key names: QC.PMOS.L.OFFSET | QC.PMOS.L.OFFSETERR | (std_pmos_qc.prg) | QC.PMOS.ANGLE.OFFSET | QC.PMOS.ANGLE.OFFSETERR QC1db names: n_saturated | object_position | avg_accuracy## FITS key names: (std_pmos_qc.prg) | (std_pmos_qc.prg) | (QC.WAVE.ACCURACY) QC1 params created by pipeline: avg_accuracy## (from wavelength calibration data) ## stands for 0_0, 22_5,..., 315_0, 337_5, i.e. the possible angles. Not all angles are always present. QC1 params created by this procedure: n_saturated, object_position | |||||||||||||||||||||||||||
| ALGORITHM |
Description of algorithms: n_saturated Maximum number of pixels above 60000 counts in the raw frame within the slitlet containing the standard star spectrum. object_position Y position of standard star spectrum. | |||||||||||||||||||||||||||
| CERTIF |
Reasons for rejection: - lack of signal; - saturated spectra (flat parts in raw data; not necessarily visible in processed data) if n_saturated > 0 check raw spectrum for flat parts. | |||||||||||||||||||||||||||
| COMMENTS | Chip 2 usually does not contain a spectrum. | |||||||||||||||||||||||||||
