| This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey). | |||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||
| bottom plots | contact | |||||||||||||||||||||||||||||
| NAME | gravi_dark.py | ||||||||||||||||||||||||||||
| VERSION |
1.0 -- October 2016 1.0.1 -- changes for gravity-0.9.8 (2016-10-26) 1.0.2 -- count number of 0 pixels in ACQ camera (2017-03-01) | ||||||||||||||||||||||||||||
| SYNTAX | PYTHON | ||||||||||||||||||||||||||||
| CALL |
processQC from $DFS_PRODUCT/DARK/$DATE /home/vimos/python/gravi_dark.py -i -a $AB | ||||||||||||||||||||||||||||
| INSTRUMENT | GRAVITY | ||||||||||||||||||||||||||||
| RAWTYPE | DARK | ||||||||||||||||||||||||||||
| PURPOSE | QC check on raw and master dark frames | ||||||||||||||||||||||||||||
| PROCINPUT | raw dark frame and DARK pipelien product | ||||||||||||||||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: gravity_dark | ||||||||||||||||||||||||||||
| TRENDPLOT |
trending | HealthCheck plot(s) associated to this procedure: trend_report_DARK_LOW_HC.html | trend_report_DARK_MED_HC.html | trend_report_DARK_HIGH_HC.html | trend_report_ACQCAM_HC.html | ||||||||||||||||||||||||||||
| QC1PAGE |
trending | associated documentation: dark_qc1.html | ||||||||||||||||||||||||||||
| QC1PLOTS top |

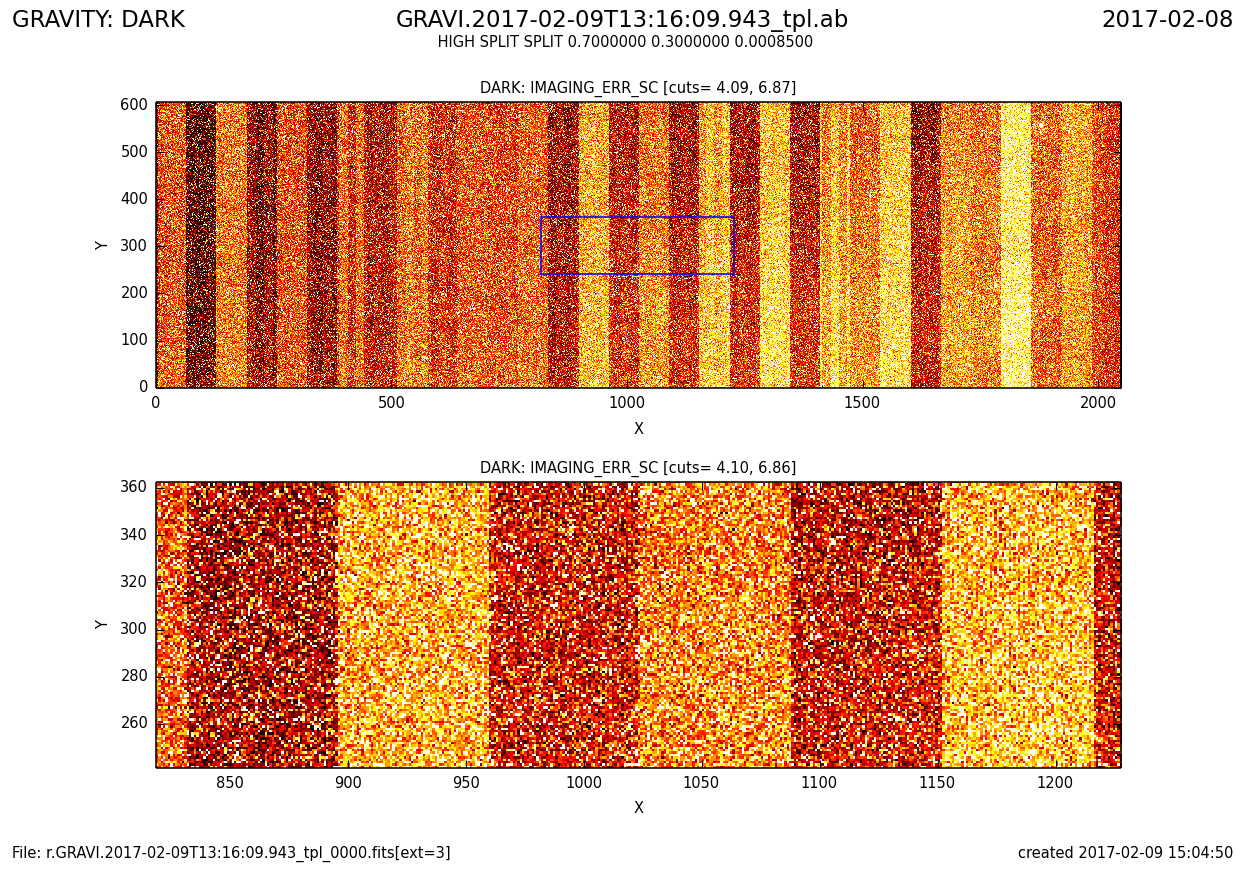

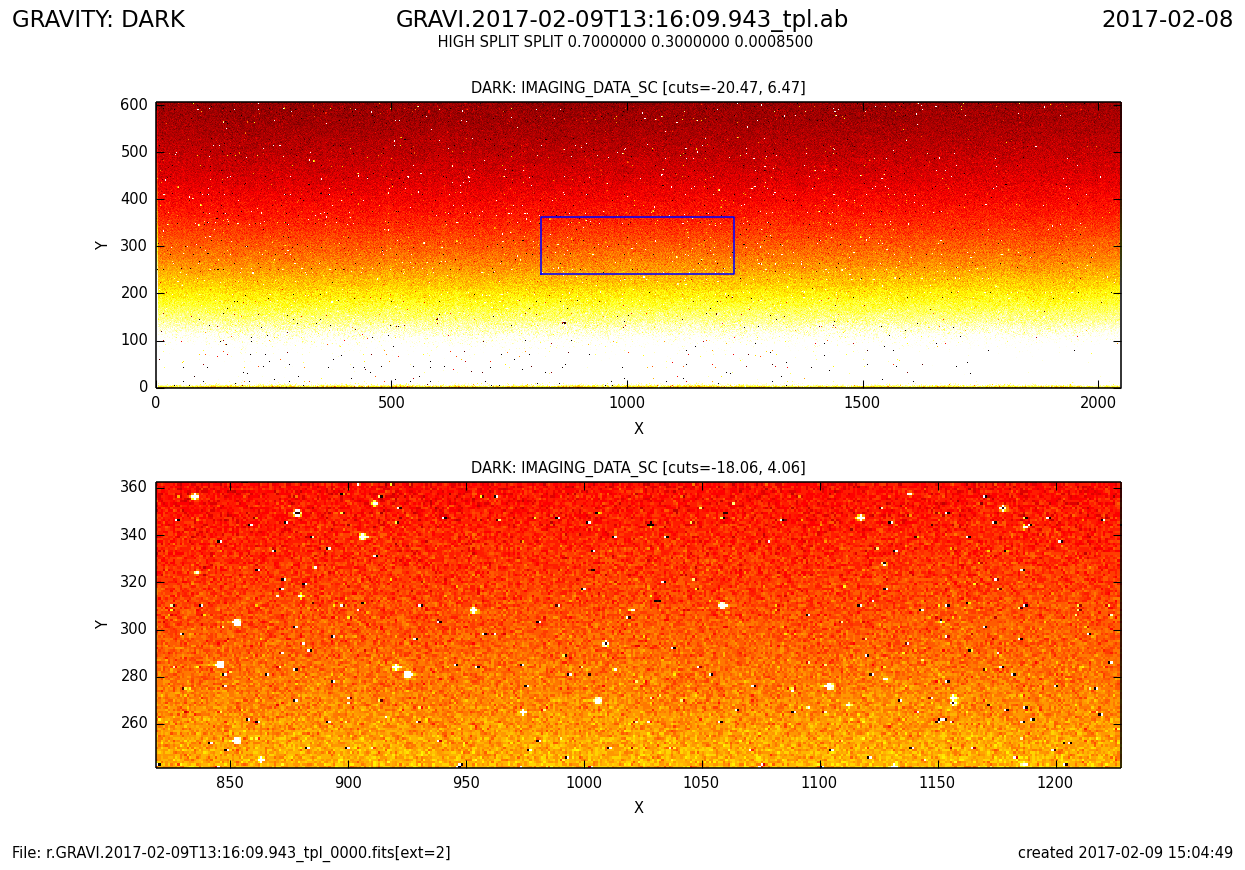

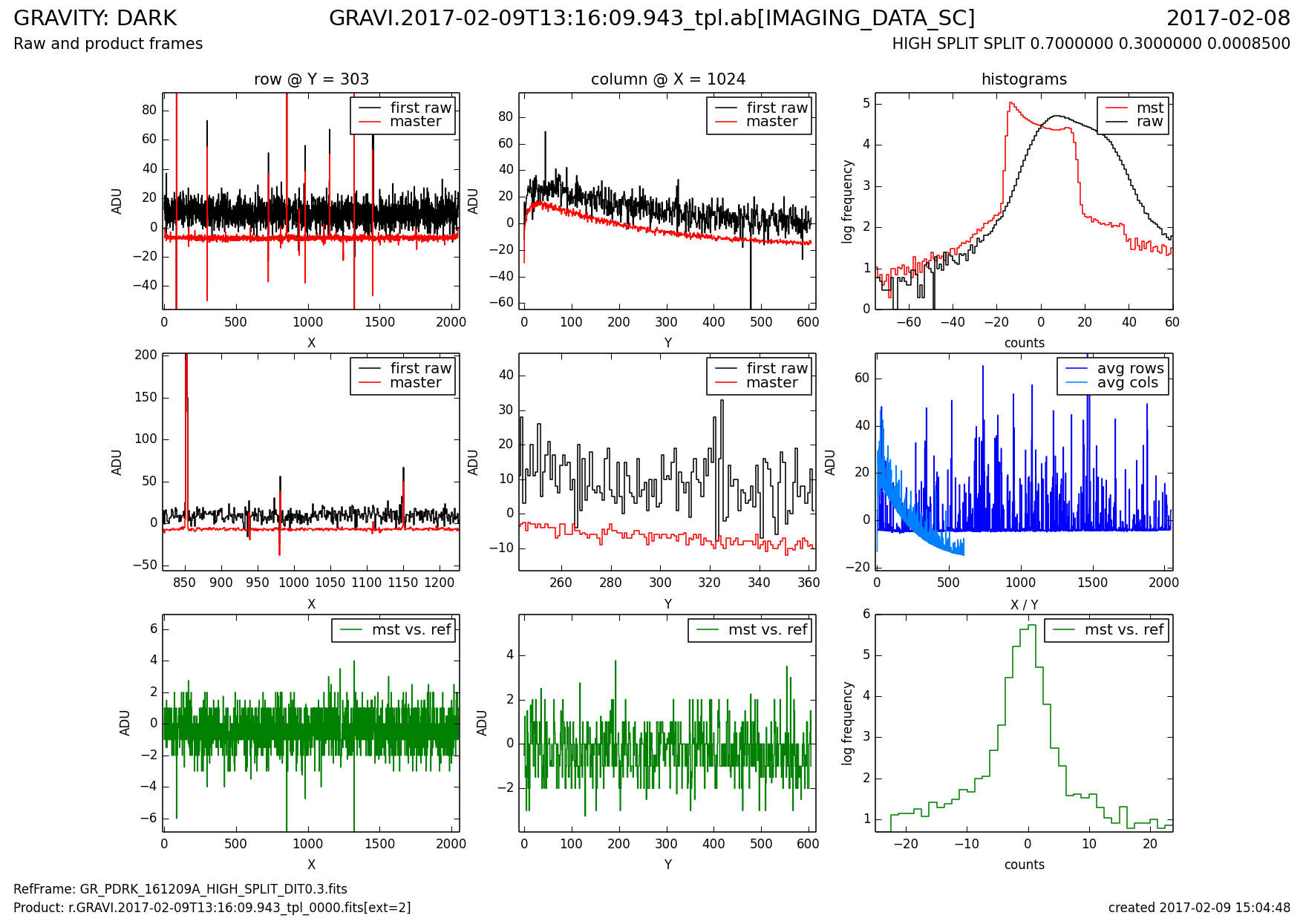

dark1.png upper panel: master dark of SC detector (full image) lower panel: master dark of SC detector (central part) dark2.png upper panel: error image of SC dark (full) lower panel: error image of SC dark (central part) dark3.png left panel: average of raw dark exposures of FT detector middle panel: master dark of FT detector (pipeline product) right panel: error of FT master dark dark4.png Cuts and histograms for SC detector. upper left panel: cuts through first raw frame and master dark in X direction upper middle panel: cuts through first raw frame and master dark in Y direction upper right panel: histrograms of first raw frame and master central left panel: cuts through first raw frame and master in X direction, central area central middle panel: cuts through first raw frame and master in Y direction, central area central right panel: row and column averages of master lower left panel: comparison to reference (current master - reference), cut in X direction lower middle panel: comparison to reference (current master - reference), cut in Y direction lower right panel: comparison to reference, histogram | ||||||||||||||||||||||||||||
| QC1PARAM |
QC1 parameters written into QC1 database: QC1 DB names: darklevel_ft | darklevel_sc | darkrms_ft | darkrms_sc | biasavg_sc | biasrms_sc | numpix_zero_acq All parameters (except numpix_zero_acq) are calculated by the pipeline recipe. | ||||||||||||||||||||||||||||
| ALGORITHM |
Description of algorithms: darklevel_ft: The master is determined as the median stack of the input data; the QC parameter is the average of the all pixel values in the master. darklevel_sc: The master is determined as the median stack of the input data after bias subtraction; the QC parameter is the median of the all pixel values in the master. darkrms_ft: Standard deviation of FT master dark. darkrms_sc: Standard deviation of SC master dark. biasavg_sc: The average bias that is subtracted from each input frame in case of the SC detector. The actual dark level of the input frames is then darklevel_sc + biasavg_sc. biasrms_sc: The standard deviation of the individual bias values per input frame. numpix_zero_acq: The number of pixels of the acquisition camera that have 0 ADU. | ||||||||||||||||||||||||||||
| CERTIF |
Reasons for rejection: unusual dark level or read-out noise, change of structure | ||||||||||||||||||||||||||||
| COMMENTS | None | ||||||||||||||||||||||||||||
