| NAME | qc_TIMGFLAT.sh | ||||||||||||||||||||||||||||
| VERSION |
1.0 -- copied from ISAAC for NACO (2002-03-12) 1.1 -- incorporated from old NACO; new name qc_TIMGFLAT.sh (2005-08-23) 1.1 -- applies to both NACO twilight and sky flats 1.2 -- 2017-08-30 docu updated | ||||||||||||||||||||||||||||
| SYNTAX | SHELL | ||||||||||||||||||||||||||||
| CALL |
processQC from $DFS_PRODUCT/TIMGFLAT/$DATE: qc_TIMGFLAT $date $primfile " | ||||||||||||||||||||||||||||
| INSTRUMENT | NACO | ||||||||||||||||||||||||||||
| RAWTYPE | TIMGFLAT | ||||||||||||||||||||||||||||
| PURPOSE | compares raw and product twilight/sky flat files for NACO QC assessment; the created plot is later reviewed within certifyProducts; it is stored in $DFO_PLT_DIR; it also extracts QC parameters and records them in the local qclog table; the procedure calls qc_TIMGFLAT.sh | ||||||||||||||||||||||||||||
| PROCINPUT |
NACO MASTER_IMG_FLAT product; | ||||||||||||||||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: naco_twflat | ||||||||||||||||||||||||||||
| TRENDPLOT | trending | HealthCheck plot associated to this procedure: none | ||||||||||||||||||||||||||||
| QC1PAGE |
trending | associated documentation: twflat_qc1.html | ||||||||||||||||||||||||||||
| QC1PLOTS top |

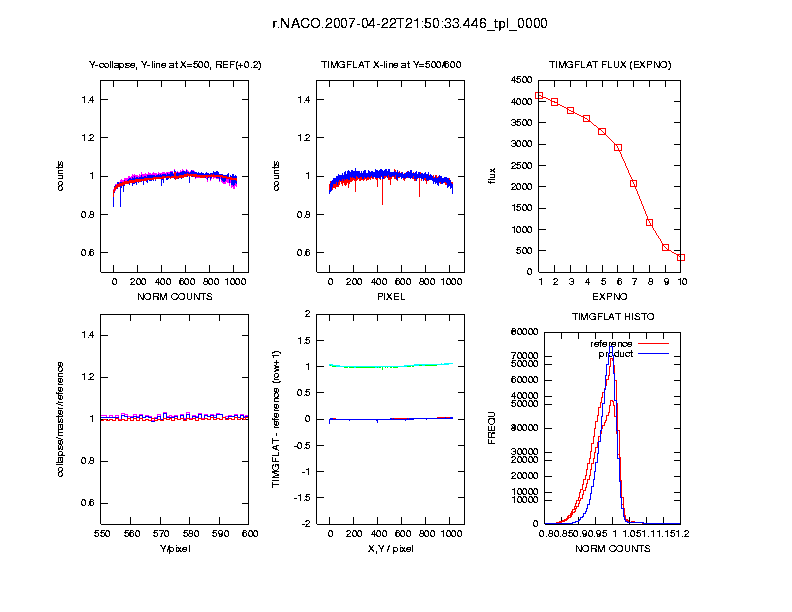

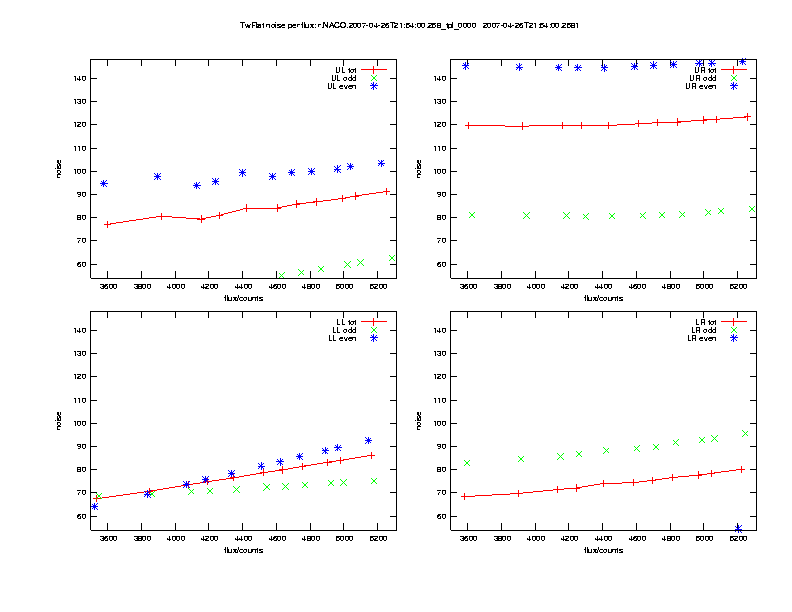

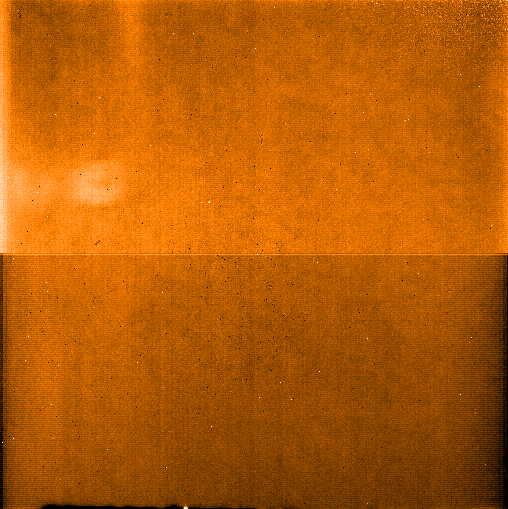

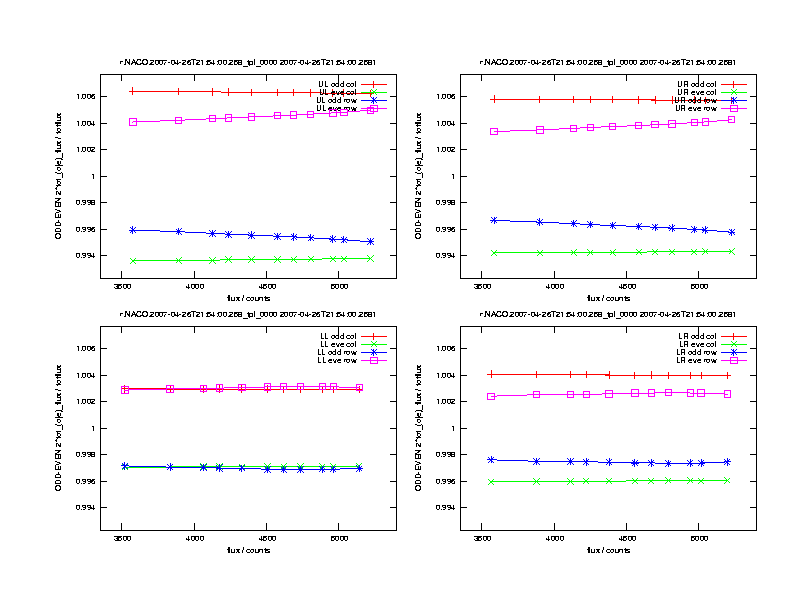

qc_TIMGFLAT.png box1: comparison master (red) <-> raw (blue); upper panel: middle row and middle column, full pixel range, in ADU; lower panel: middle row and middle column, central 100 pixels, in ADU box 2: structure description; all columns (top) and all rows (bottom) are collapsed and displayed; box 3: upper panel: flux level in consecutives raw frames lower panel: histogram: all pixel values in log frequency histogram; raw: blue, master: red, reference: green; there should be a dominant peak with Gaussian shape (which translates to parabola shape in this log freq diagram) top label: name of analyzed master twilight/sky frame qc_TIMGFLAT_diff.png full display of difference of the master with corresponding reference frame qc_TIMGFLAT_oe.png odd-even column effect per quadrant qc_TIMGFLAT_fpn.png FPN per quadrant | ||||||||||||||||||||||||||||
| QC1PARAM |
QC1 parameters written into QC1 table: QC1db names in naco_twflat: fpn | gain | lamp_flux | dark_std | flat_med_min | flat_med_max flat_min | flat_max | flat_median | flat_std | flat_tot QC1db names in naco_twflat_oe: oc_UL/UR/LL/LR_mean | oc_UL/UR/LL/LR_std | ec_UL/UR/LL/LR_mean | ec_UL/UR/LL/LR_std FITS key names: DET.DIT | DET.NDIT | DET.NCORRS.NAME | DET.MODE.NAME | ins_filter | ins_camera | ins_dichroics QC1 params created by pipeline: gain, fpn, lamp flux QC1 params created by this procedure:statistics in four quadrants and analysis of the odd-even column effect | ||||||||||||||||||||||||||||
| ALGORITHM |
Description of algorithms: For description of algorithms used by the recipe see the NACO Pipeline User Manual; odd-even column/row analysis; - Flux values for each raw frame per quadrant and per odd and even columns are derived; - (odd minus even) / (odd + even) is estimated for each quadrant; - mean values for all the frames in the stack are derived; - stdev per quadrant from all the raw frame stack is derived | ||||||||||||||||||||||||||||
| CERTIF |
Reasons for rejection: - unusual structures or patterns (unless representative of the current state of detector); - unusual illumination or reflections - highest_flux/lowest_flux ratio less than few Also full display of the local difference, i.e. of the master with closest in time conterpart is monitored. | ||||||||||||||||||||||||||||
| COMMENTS | NONE | ||||||||||||||||||||||||||||
