SPHERE trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-04-22T04:49:09 (UT)
  | now: 2024-04-22T12:49:23 (UT) muc03 QC pipeline: spher-0.52.0 (installed 2024-03-22)
same group: DISPERSION RESOLV.POWER   Wavelength(T) resolv.pow(T) arclineflux(T) Wavelength(F)
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
SPHERE news: Note that the current Health Check monitor runs with an incomplete pipeline and an incomplete set of QC1 parameters. QCG can currently not guarantee completeness and significance at the usual level.
Report news:
DATE*: [?] 2024-04-15
no data | NLT
2024-04-16
report | NLT
2024-04-17
report | NLT
2024-04-18
report | NLT
2024-04-19
report | NLT
2024-04-20
report | NLT
2024-04-21
report | NLT
r...
Raw CAL displays:
no CAL raw files raw raw raw raw raw raw
P...
CAL product quality:
no CAL products products products products products products products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact | HC_docu... | quality events...                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB NO   micron/WLbin none  43 qc_med_dispers this | last_yr | all pipeline (YJ prism)
1 QC1DB NO   micron/WLbin none  43 dispersion this | last_yr | all QCscript (YJ prism)
2 QC1DB NO   micron/WLbin none  33 qc_med_dispers this | last_yr | all pipeline (YJH prism)
2 QC1DB NO   micron/WLbin none  33 dispersion this | last_yr | all QCscript (YJH prism)
3 QC1DB NO   micron none  54 qc_min_lambda this | last_yr | all pipeline (YJ prism)
3 QC1DB NO   micron none  43 lambda0 this | last_yr | all QCscript (YJ prism)
4 QC1DB NO   micron none  34 qc_min_lambda this | last_yr | all pipeline (YJH prism)
4 QC1DB NO   micron none  33 lambda0 this | last_yr | all QCscript (YJH prism)
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: not implemented
data source:sphere_ifs_wave
(QC1 database)
dataset:
(numbers below apply to this dataset)
qc_med_dispers
N_data plotted:43
[click plot for closeup]
Plot 2
scores: not implemented
data source:sphere_ifs_wave
(QC1 database)
dataset:
(numbers below apply to this dataset)
qc_med_dispers
N_data plotted:33
[click plot for closeup]
Plot 3
scores: not implemented
data source:sphere_ifs_specpos
(QC1 database)
dataset:
(numbers below apply to this dataset)
qc_min_lambda
N_data plotted:54
[click plot for closeup]
Plot 4
scores: not implemented
data source:sphere_ifs_specpos
(QC1 database)
dataset:
(numbers below apply to this dataset)
qc_min_lambda
N_data plotted:34
[click plot for closeup]

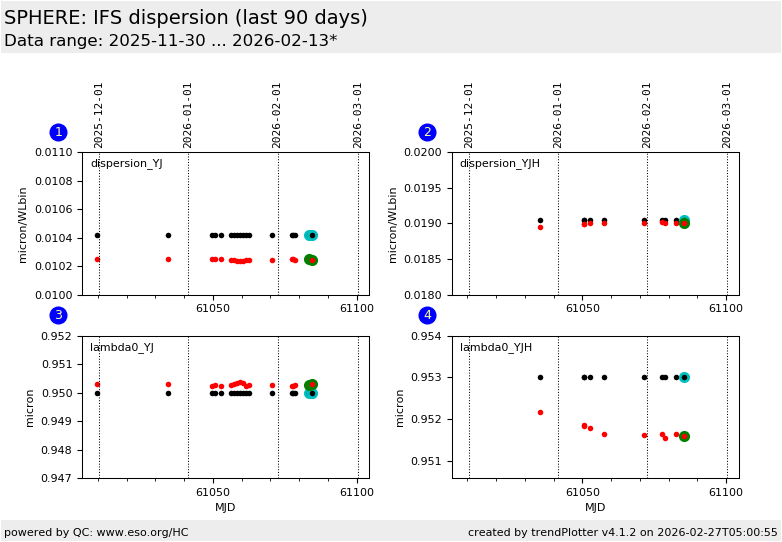

This plot

This plot shows the wavelength dispersion as calculated by the QC script.

The dispersion is given in micron / wavelength bin.

The pipeline reports

0.0114 (YJ) and 0.0200 (YJH) in the keyword QC MEDIAN DISPERSION

and

0.01042 (YJ) and 0.01905 (YJH) in the keywords DRS IFS DISPERSON and CD3_3.

The nominal values (out of the User Manual) are
0.0107 (YJ) and 0.0195 (YJH).

The values derived by measuring the arc line positons in the from the pipeline wavelength calibrated cube product are
0.0103 (YJ) and 0.01903 (YJH).

The black points show the values of the static DRS IFS DISPERSON header key.


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
