rad::ConfigurableActivity Class Reference

#include <configurableActivity.hpp>

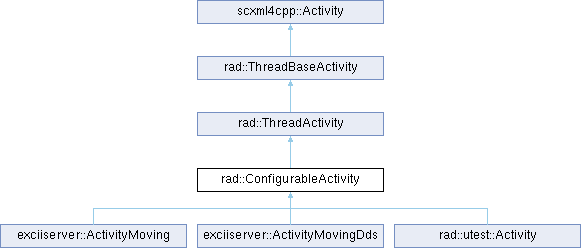

Inheritance diagram for rad::ConfigurableActivity:

Public Member Functions
	ConfigurableActivity (const std::string &id)
virtual	~ConfigurableActivity ()
virtual void	Initialize ()=0
virtual void	Configure (const std::vector< std::string > &keys)=0
	ConfigurableActivity (const ConfigurableActivity &)=delete
ConfigurableActivity &	operator= (const ConfigurableActivity &)=delete
	Disable copy constructor.
Public Member Functions inherited from rad::ThreadActivity
	ThreadActivity (const ThreadActivity &)=delete
ThreadActivity &	operator= (const ThreadActivity &)=delete
virtual void	Run ()=0
pthread_t	GetNativeHandle () const override
bool	IsThreadJoined () const override
	ThreadBaseActivity (ThreadBaseActivity const &)=delete
Public Member Functions inherited from rad::ThreadBaseActivity
	ThreadBaseActivity (ThreadBaseActivity const &)=delete
void	start (scxml4cpp::Context *c) override
void	stop (scxml4cpp::Context *c) override
bool	IsStopRequested () const
Public Member Functions inherited from scxml4cpp::Activity
	Activity (const std::string &id)
virtual	~Activity ()
std::string	getId () const
void	setId (const std::string &id)

Additional Inherited Members
Protected Member Functions inherited from rad::ThreadActivity
void	StartThread () override
void	JoinThread () override
std::string	GetPthreadName ()
int	SetPthreadName (const std::string &name)

Detailed Description

This class adds to the rad::PthreadActivity the interfaces to re-initialize and re-configure the member attributes.

Constructor & Destructor Documentation

ConfigurableActivity() [1/2]

rad::ConfigurableActivity::ConfigurableActivity ( const std::string & id )

inlineexplicit

Default constructor.

~ConfigurableActivity()

virtual rad::ConfigurableActivity::~ConfigurableActivity ( )

inlinevirtual

Default destructor.

ConfigurableActivity() [2/2]

rad::ConfigurableActivity::ConfigurableActivity ( const ConfigurableActivity & )

delete

Member Function Documentation

Configure()

virtual void rad::ConfigurableActivity::Configure ( const std::vector< std::string > & keys )

pure virtual

Method invoked when SetConfig or LoadConfig command is received to re-configure this class attributes.

Parameters

keys	Modified parameters. Empty vector means all params have changed.

Implemented in exciiserver::ActivityMoving, exciiserver::ActivityMovingDds, and rad::utest::Activity.

Initialize()

virtual void rad::ConfigurableActivity::Initialize ( )

pure virtual

Method invoked when Init command is received to re-initialize this class attributes.

Implemented in exciiserver::ActivityMoving, exciiserver::ActivityMovingDds, and rad::utest::Activity.

operator=()

ConfigurableActivity & rad::ConfigurableActivity::operator= ( const ConfigurableActivity & )

delete

Disable copy constructor.

---

The documentation for this class was generated from the following file:

• rad/cpp/app/src/include/rad/configurableActivity.hpp
