GIRAFFE: System efficiency

HC PLOTS
Efficiency vs. time:
Efficiency vs. wavelength:
QC1 database (advanced users): browse | plot

A set of standard star measurements is taken regularly with the Argus IFU of GIRAFFE, under CL (clear) or PH (photometric) conditions, to measure the overall system efficiency. A set of three settings is taken with the low-resolution grating (L427.2, L543.1, L881.7), three more with the high-resolution grating (H447.1A, H651.5B, H875.7). These data are taken once every 1 or 2 months.

They are calibrated with the robotic lamp flats. The flats are used only for the localization solution (required for the extraction). Contrary to the usual reduction, the extracted flat-field is not divided into the standard star spectrum, in order to achieve the efficiency curve. The signal from all fibres (excluding SKY and SIMCAL) is summed up and divided by the flux curve of the standard star, to measure the overall (telescope plus optical components plus detector) efficiency of the instrument.

Argus STD frame. This is the pipeline-recombined image of a GIRAFFE standard star measurement taken with the Argus IFU. Each pixel corresponds to one fibre on the sky. The bright spot at lower left is due to a bad column; the dark hole at upper right is caused by the first fibres which are somewhat truncated by the CCD.


Efficiency

QC1_parameters

FITS key QC1 database: table, name definition class* HC_plot** more docu
[calculated by QC procedure] giraffe_std..mean_effic mean efficiency at central wavelengthKPI
*Class: KPI - instrument performance; HC - instrument health; CAL - calibration quality; ENG - engineering parameter
**There might be more than one, always check the link 'HC'.

Trending

The mean efficiency is plotted in boxes 1-6 of the SYSTEM_EFFICIENCY trending plot for the 6 reference settings (3 HR and 3 LR settings).

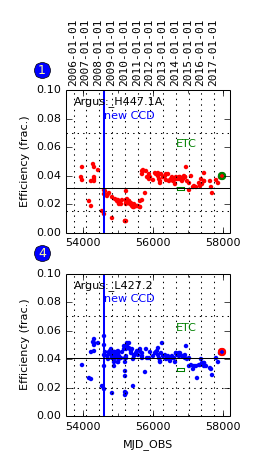

Efficiency plots. Boxes 1-6 show the mean efficiency displayed over time. The green bars mark the current ETC predictions. The blue line marks the CCD replacement in 2008.

These data are also plotted over wavelength, in the SYSTEM_EFFICIENCY_WLN trending plot .

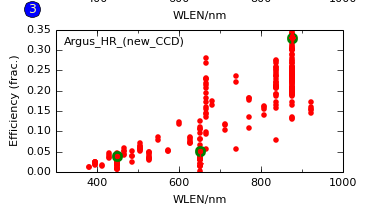

Efficiency plot vs. wavelength. Boxes 3 and 4 show the mean efficiency for the HR and LR settings (new CCD) displayed over wavelength. Boxes 1 and 2 show the same for the historical (old) CCD.

History

The trending plot covers the full history of this parameter.

Date event
2006-08-06 first set of 6 efficiency monitoring frames taken
2008-03-14 Old CCD ("Bruce") decommissioned
2008-05-26 New CCD ("Carreras") operational; significantly higher efficiency in the red, lower efficiency in the blue
2011-06 The HR grating has been recoated
2014-09-02 Updated ETC reference values to reflect the current ETC including the fudge factors

The efficiency is expected to degrade over time, mainly because of the degrading coating of the gratings. The HR grating has been recoated in 2011-06, the effect is visible in plots #1 and #2. Efficiency drops by about -0.0033 per year in H447.1A and in H651.5B. We felt unable to determine a reference value for the two red settings in plots #3 and #6, where the measurement method is particularly bad, due to insufficient sky subtraction in the data.

Scoring&thresholds Efficiency

The scoring is quite loose because the definition procedure for mean_effic is not very good. Upper and lower thresholds are only to indicate a possible failure of the routine. The correct interpretation of the results requires looking at the long-term trend.

Algorithm Efficiency

find central wavelength, average the efficiency values in window of 2 nm size around that wavelength, subtract the SKY
