VIMOS trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2018-04-04T03:36:52 (UT)
  | now: 2022-05-22T07:45:14 (UT) muc03 QC pipeline: vimos-2.9.19 (installed 2016-03-17)
same group: LRb_cent LRr_cent MR_cent HRb_cent HRo_cent HRr_cent   LRb_full LRr_full MR_full HRb_full HRo_full HRr_full
General news:
VIMOS news:
Report news:
DATE*: [?] 2018-03-28
no data | NLT
2018-03-29
no data | NLT
2018-03-30
no data | NLT
2018-03-31
no data | NLT
2018-04-01
no data | NLT
2018-04-02
no data | NLT
2018-04-03
no data | NLT
r...
Raw CAL displays:
no CAL raw files no CAL raw files no CAL raw files no CAL raw files no CAL raw files no CAL raw files no CAL raw files
P...
CAL product quality:
no CAL products no CAL products no CAL products no CAL products no CAL products no CAL products no CAL products

transfer   ngas [?]

scores&comments | history ... | plot tutorial ... | contact | HC_docu...               [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB none   none none  35 resol3 this | last_yr | all resolution at blue end
1 QC1DB none   none none  35 resol1 this | last_yr | all resolution at red end
1 QC1DB MEDIAN 1.88e+03 none VAL1650,2100 35 resol2 this | last_yr | all resolution at centre
2 QC1DB none   none none  35 resol3 this | last_yr | all resolution at blue end
2 QC1DB none   none none  35 resol1 this | last_yr | all resolution at red end
2 QC1DB MEDIAN 1.86e+03 none VAL1650,2100 35 resol2 this | last_yr | all resolution at centre
3 QC1DB none   none none  35 resol3 this | last_yr | all resolution at blue end
3 QC1DB none   none none  35 resol1 this | last_yr | all resolution at red end
3 QC1DB MEDIAN 1.76e+03 none VAL1650,2100 35 resol2 this | last_yr | all resolution at centre
4 QC1DB none   none none  35 resol3 this | last_yr | all resolution at blue end
4 QC1DB none   none none  35 resol1 this | last_yr | all resolution at red end
4 QC1DB MEDIAN 1.84e+03 none VAL1650,2100 35 resol2 this | last_yr | all resolution at centre
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: not implemented
data source:vimos_ifu_score
(QC1 database)
dataset:
(numbers below apply to this dataset)
resol3
average:none
thresholds:none
N_data plotted:35
[click plot for closeup]
Plot 2
scores: not implemented
data source:vimos_ifu_score
(QC1 database)
dataset:
(numbers below apply to this dataset)
resol3
average:none
thresholds:none
N_data plotted:35
[click plot for closeup]
Plot 3
scores: not implemented
data source:vimos_ifu_score
(QC1 database)
dataset:
(numbers below apply to this dataset)
resol3
average:none
thresholds:none
N_data plotted:35
[click plot for closeup]
Plot 4
scores: not implemented
data source:vimos_ifu_score
(QC1 database)
dataset:
(numbers below apply to this dataset)
resol3
average:none
thresholds:none
N_data plotted:35
[click plot for closeup]
This plot

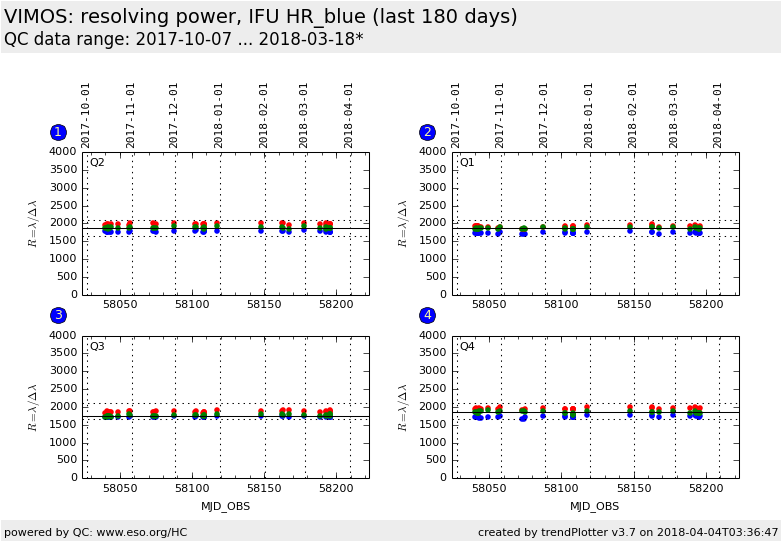

Trending plot for resolution (resolving power R) derived from IFU arc lamp measurements.

Resolution is measured at the blue and the red end, and at the centre of the spectral range. The "cent" plots only show the latter; they include scoring. The "full" plots also show the results at the blue and red ends; these are not scored.

Template ID: ifu_cal_DayCalib (daytime Health Checks), ifu_cal_NightCalib (attached night-time). Pipeline recipe: vmifucalib.


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
